2016 New Design ul multi color 24 volt 200w smd led flood light

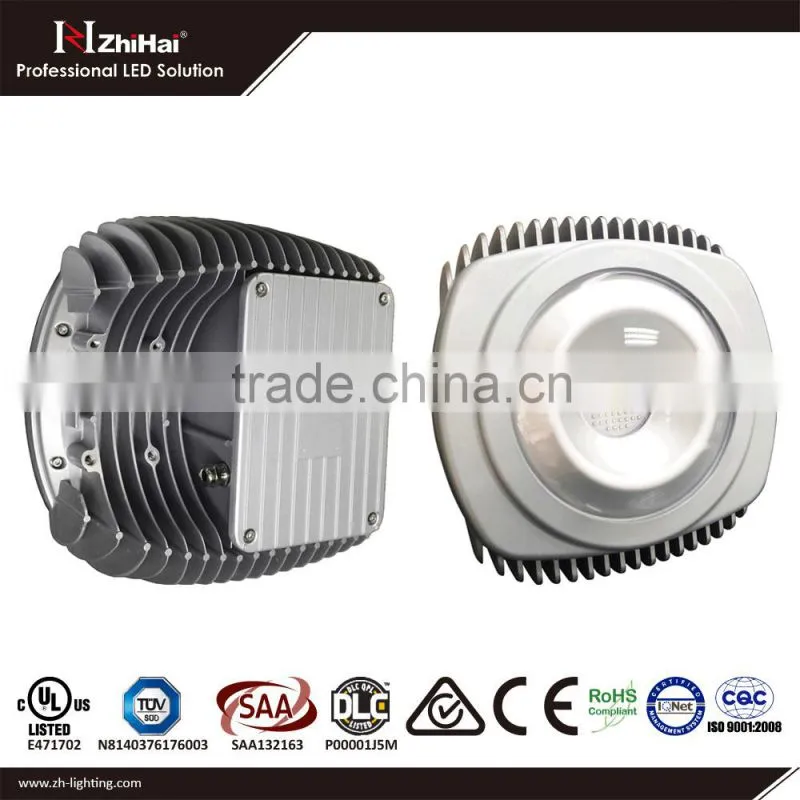

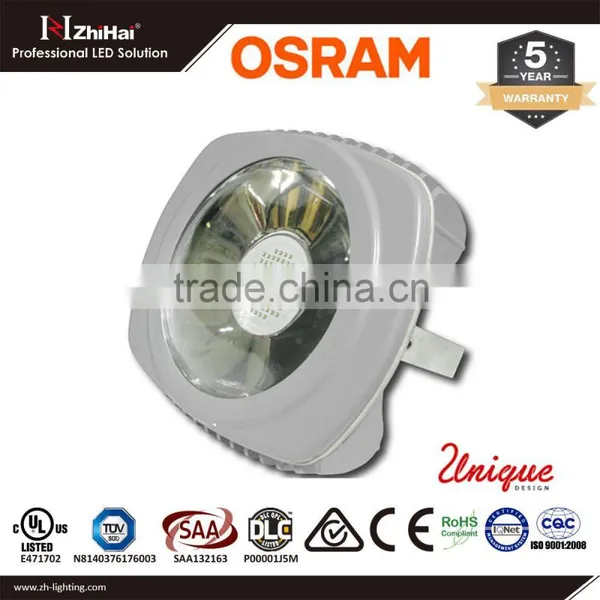

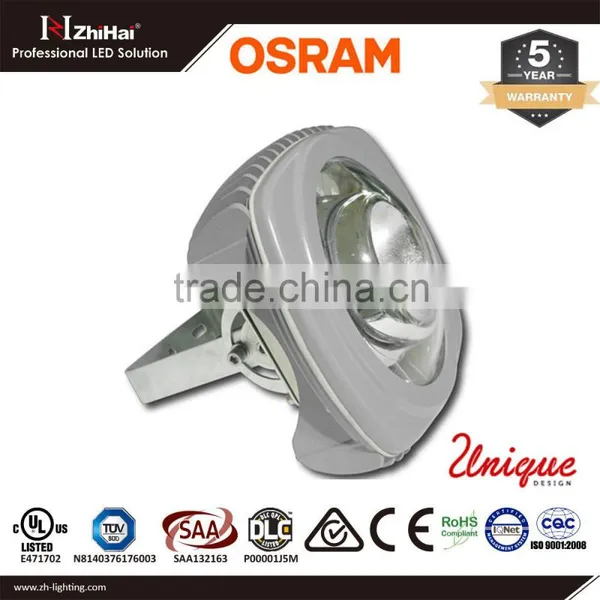

Photos of 200w smd led flood light
Beam Angle of 200w smd led flood light

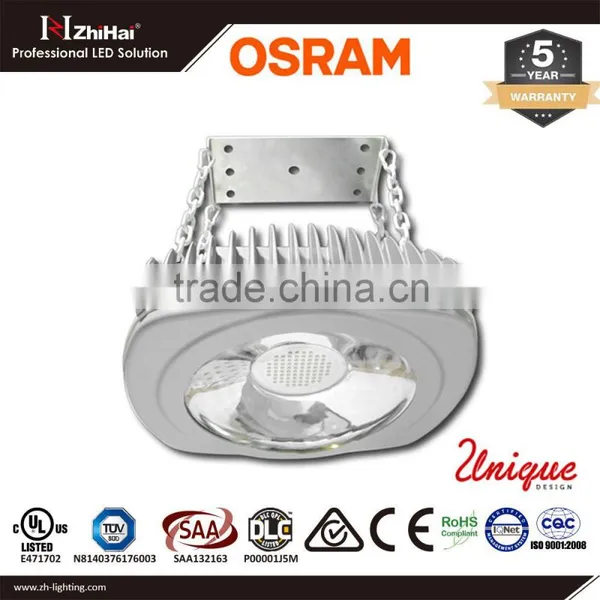

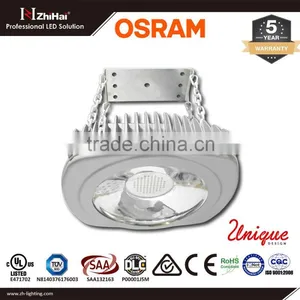

Brackets of 200w smd led flood light
Comparison diagram:
Typical Application of 200w smd led flood light
Highway | Main Street | Normal Road | Laneway | Bridge | Architecture | Park | Plant Area | Plaza | Stadium &Sports Field|Tunnel | Yard | Garden | Parking Area | Billboard | Warehouse | Show Room | Factory | Shopping Mall
Competitive Highlight of 200w smd led flood light
*Patented all-in-one design, ideal product for all project.
*Featuring Osram XPE LED chips, outstanding energy saving performance.
*Patented power supply technology, electricity surge and overheating auto-protection.
*Patented heat dissipation technology, 50000 hours long life with minimum luminous decay.
*Universal input voltage, AC / DC both work without any adapter or transformer.
*High power factor to minimize total harmonic distortion.
*Instant start and flicker free to reduce the eyestrain.
*Very even light distribution and high uniformity, no glare to eyes.
*Good color rendering, vivid colors under the light.
*Industry-leading 5-5-10 year warranty.
*DC 12V and 24V version also available for solar power and other applications.
Parameters of 200w smd led flood light
| Model of 200w smd led flood light |
ZHGL-30A | ZHGL-60A | ZHGL-90A | ZHGL-120A | ZHGL-150A | ZHGL-180A | ZHGL-210A | ZHGL-270A | |
| Power Consumption | LEDs | 25W | 50W | 80W | 108W | 135W | 162W | 189W | 243W |
| Driver | 5W | 10W | 10W | 12W | 15W | 18W | 21W | 27W | |
| Total | 30W | 60W | 90W | 120W | 150W | 180W | 210W | 270W | |
| Initial Lumen Lamp(6000K) | 3600 lm | 7200 lm | 10800 lm | 14400 lm | 18000 lm | 21600 lm | 25200 lm | 32400 lm | |
| Replace HID Lamp | 50-100W | 100-150W | 150-250W | 250-300W | 300-400W | 400-500W | 500-600W | 600-1000W | |

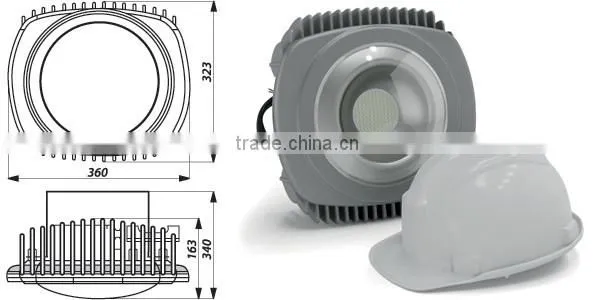

| Dimension | 360x323x163mm | ||||||||
| Net Weight | 8kg (17.6lbs) | ||||||||
| Color Temperature | 4000K - 6000K | ||||||||
| Color Rendering | ≥Ra75 | ||||||||
| Working Life | ≥50000Hrs | ||||||||
| Housiong Material | Aluminum | ||||||||
| Coating | Zinc Rich Paint | ||||||||
| IP Class | IP 65 (Upgradeable to IP 67) | ||||||||
| Insulation Class | Class I (Upgradeable to Class II) | ||||||||
| Working Temperature | -40C ~ 60C / -40F ~ 140F | ||||||||
| Working Humidity | 10% ~ 95% | ||||||||
| AC Input | 80 ~ 315Vac, (347Vac available on request) | ||||||||
| DC Input | 80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request) | ||||||||
| THD | <10% | ||||||||
| Power Factor | ≥0.98 | ||||||||
| Warranty | LED Module | 5 year | |||||||
| Driver | 5 year | ||||||||
| Housing | 10 year | ||||||||
| Model of 200w smd led flood light |
N.W (KGS) | G.W (KGS) | CTN SIZE (MM) | PCS/CTN |
| ZHGL-30A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-60A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-90A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-120A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-150A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-180A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-210A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-270A | 8.1 | 12/13.5 | 430*430*320 | 1 |

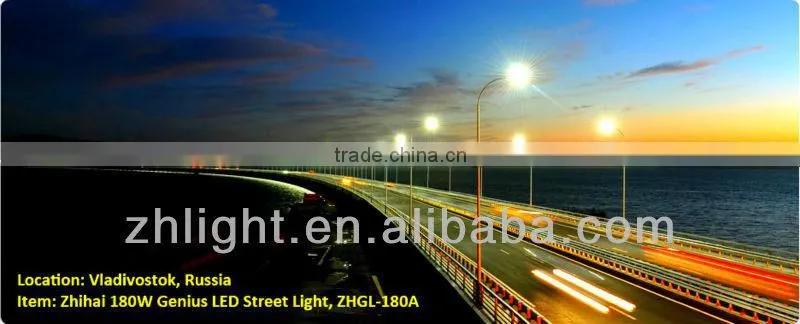

Projects of 200w smd led flood light
1.Hong Kong Lighting Fair:
2.2015 Las Vegas The LED Show
We also provide our client with lighting layout design and brightness caclulation of projects ,Zhihai would be your first choice of professional Led lighting supplies.
We have 3 years or 5 years warranty for all models of our led flood light, In this meantime, if not man-made factors, we offer replacement new one.
In 2006, adopted the technology of our electronic and thermal control experience, we started and moved to the R&D, manufacture, sales and service of LED lighting,and very quickly, we became one of the leading and most professional LED lighting company in China.
Till 2012 we have 125 patents and more than 80 patents are pending, the patents include the LED chips packaging, power supply controlling and design of lamp housing.
We worked with ISO-9001 quality control system since 2001, the products are LVD,CE,TUV, CE, SAA, C-tick and RoHS certificated, and we are also got CUL, UL,DLC
1.Why you should trust Zhihai Power ?
1).Zhihai Power has been qualified by third party and awarded 7 year’s “Gold Supplier” in Alibaba Group company.
2).Zhihai Power is an officially registered company both in China and Hong Kong.
3).We accept Payment by PAYPAL and for regular customer the payment period can be 30/60 days after delivery.
4).Because all our Led light products have cUL & UL DLC or Canadian certificate,which prove that
our Led product quality is in line with the Canadian and U.S. market sales requirements of first-class quality,the cUL & UL product certification requirements are the highest in the world.
5).Most of our Led lights are Osram chip inside and with Energy Star certificate. This is the mark of the best Led lighting products.
6).We are manufacturer direct selling. We guarantee that our products are the best quality and best price.
2.Why choose Zhihai Power as the business partner in the field of LED
Industrial Lighting ?
1).Professionalism: Zhihai Power has 9+year's exportation experience in LED Industrial
Lighting products in china.We provide you professional service one to one.
2).Strictly Quality control system: Xian Zhihai has professional QC team for the quality control, Allgoods are100% inspected before shipping,we do at least 5 test,including In-coming raw materialtest,sample test then bulk produce, waterproof test, functional test,burn-in test, appearance inspection.
3).Delivery:The products delivered to you within 4 days for sample, 7-15 days for mass order from the date of payment.
Q1:How about your delivery time ? Delivery Terms ?
A1:3-5 business days for sample ,order subjects to your quantity
Delivery terms as follows: FOB ,CIF,EXW ,etc.
Q2:Can I get some samples?
A2: We are honored to offer you samples.
Q3:How does your company do regarding quality control?
A3:we always attach great importance to quality controlling from the very beginning to the very end
Q4:Which kind ways of transportation you use ?
A4: By ocean ,air or express
Q5: Could you offer me the safest terms of payment?
A5: T/T ,PAYPAL, WESTERN UNION are available,you can choose the best way
Q6:What's about the packing details?
A6:Individual neutral packing for each lamp, and Customized packing is acceptable.
Q7:Are you Manufacturer?
A7:Yes
