Specifications
1.EASTWIN OEM Rapid PCB Prototype Service2.UL,SGS,ROHS Certificated,Competitive price
3.OEM&ODM PCB,Fast lead time PCB
Eastwin PCB board manufacture and PCB Assembly service including belows:
* PCB board file with parts list provided by customers (Gerber file,PCB file,Eagle file or CAD file all acceptable)
* PCB board file will be checked by PCB engineer (Eastwin Engineer will study file and improve the design with suggestions)
* PCB board made, circuit board parts purchased by Eastwin (Eastwin will help to order aprroved file in short time)
* PCB board components sourced by Eastwin(Eastwin able to source the components as the parts list)
* PCB board with components assembled(Eastwin will help to make few samples first and when sample approved,the rest will be complete in really quite short time as requst)
* Electronic testing circuit board or PCBA(All the bare board will go through E-test and Function test for the PCBA)
* Fast delivery, anti-static package(Eastwin will help to offer more better packing methods to each projects and think more than you can imagine)
* RoHS Directive-compliant, lead-free(All the process has strict stardard, ISO9001:2008 )
* One stop service for PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery(Eastwin can offer more service than you can imagine,just contact us when have needs!!!)
Technical Specification For PCB
PCB Assembly Capabilities
Detailed Terms for Pcb Assembly
Technical requirement for pcb assembly: What we can do?
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603,0402,0201 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
Quote requirement for pcb and pcb assembly:
1)Gerber file and Bom list Gerber file,PCB file,Eagle file or CAD file all acceptable
2)Clear pics of pcba or pcba sample for us This will help a lot for the fast purchasing as request
3)Test method for PCBA This can guarantee 100% good quality products when delivered
Inner packing :Vacuum Package Outer packing:Standard Carton

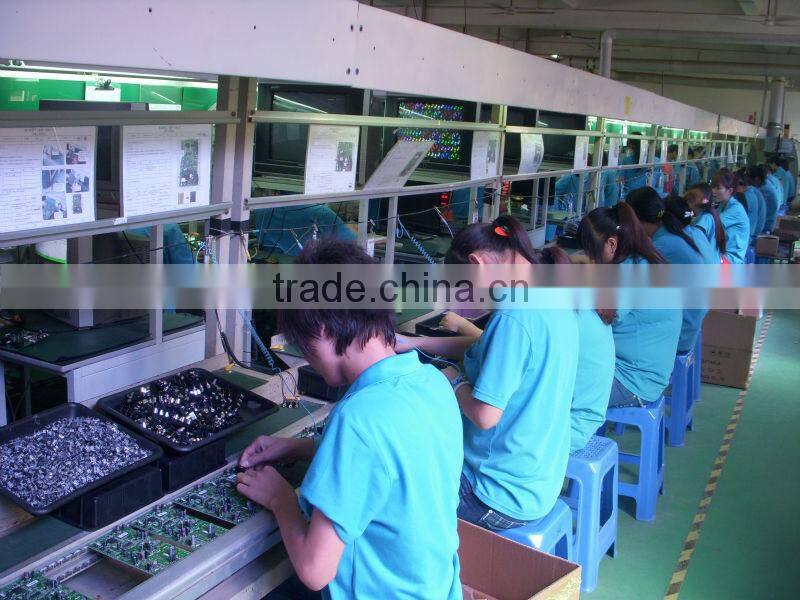

Factory View
Why US ???
Quality
Our UL/Rohs standards insure quality assemblies from start to finish. Whether it's a simple custom
product or a complex turnkey production run, Eastwin will adhere to the ISO9001 standards.
Capable
We offers the latest in assembly capabilities and qualifications insuring that quality is built
into every product we produced and save the your production cost in better level.
Experience
When it comes to your build you want a partner you can depend on. Our management team has
over 10 years of combined industry knowledge. Our engineering team has over 7 years experience.
Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.
Flexibility
We pride ourselves on our ability to custom tailor programs around our customers' needs. We take
time to listen to your unique business needs and then set out to surpass them.
