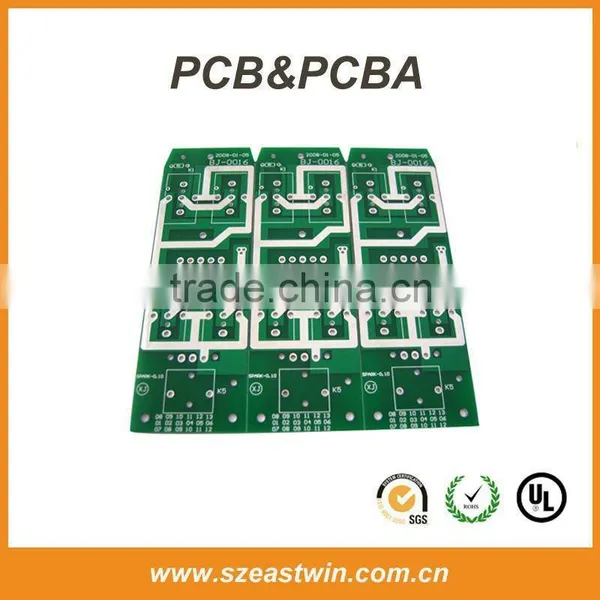

FR4 material power bank pcb board

Specifications

1. power bank pcb board
2.UL&RoHS Approval,100%E-tested
3.OEM&OEM fr4 pcb board
4.High quality with competitive price



FR4 material power bank pcb  board



Welcome to Eastwin!



PCB process capability:
1.Layer:  2-22 layer
2.Product type:  Rigid PCB,High Density Inverter PCB,thick copper PCB
3.Materials:  FR-4, CEM-3, Teflon, Aluminum Substrate, Rogers, Halogen Free, High Tg
4.Copper Thickness:  140micron(4oz)
5.Min Board Thickness:  0.4mm
6.Max Board Thickness:  5.0mm
7.Min finished Hole Diameter:  0.1mm
8.Outer layer line width / spacing:  0.1mm/0.1mm
9.Inner layer line width / spacing:  0.1mm/0.1mm
10.Min aperture:   0.2mm
11.Min Laser drilling:  0.1mm
12.Min  Ring Width:  0.11mm
13.Min BGA-bit hole spacing:  0.4mm
14.Resistance Tolerance:  ±10%
15.Minimum Insulation Thickness:  3mil
16.Maximum laser blind hole thickness to diameter ratio:  0.8:1
17.Maximum working board size:  520*622mm
18.Drilling Tolerance (PTH):  ±0.075mm
19.Drilling tolerance (NPTH):  ±0.05mm
20.Outline Tolerance (CNC):  ±0.13mm
21.Surface coating:  Lead Free HAL, HAL, Flash Gold, Immersion Gold, Immersion Tin, Immersion Silver, OSP, Gold Finger Plating, Carbon Ink Printing, Peelable Blue Mask







Your single point of contact for all of your raw materials, parts, and pcb assembly,  also offers:
 - Contract Manufacturing
- Engineering Services
- PCB Design & Assembly
- Product Design
- Prototyping
- Cable and Wire Assemblies
- Plastics and Molds







Detailed Terms for Pcb Assembly







 Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.







 Quote requirement:
1)Gerber file and Bom list
2)Clear pics of pcba or pcba sample for us
3)Test method for PCBA







Factory View:





All of the above description is to demonstrate the ability of our factory, if you have specific requirements, please contact us!
