TOOSIN/VMADE combo hd dvb t2 s2 receiver
Key Features :
- Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard
- Fully comply with DVB-S/S2, MPEG-2/4 H.264 Standard
- Support BISS KEY
- USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
- Supports single / multiple or blind search satellite search
| Specification of hd dvb t2 s2 receiver | ||||
| CPU | Montage VT6000 (128 pin) MIPS 34Kf@600MHz | |||
| Memory | 32X16Mbit DDR2 Frequency1066 | |||
| Flash | 32M bytes | |||
| Demodulator Type | Montage DM6000 Chip Set | |||
| S2+TUNER | Montage TS2022 Chip Set | |||
| T2+TUNER | MaxLinear MXL 608 | |||
| Front Panel | USB 2.0 Embedded One Host, | |||
| 4-digit LED display on front panel | ||||
| red LED Standby,green LED Lock | ||||
| Panel, KEY, POWER, CH+,CH- | ||||

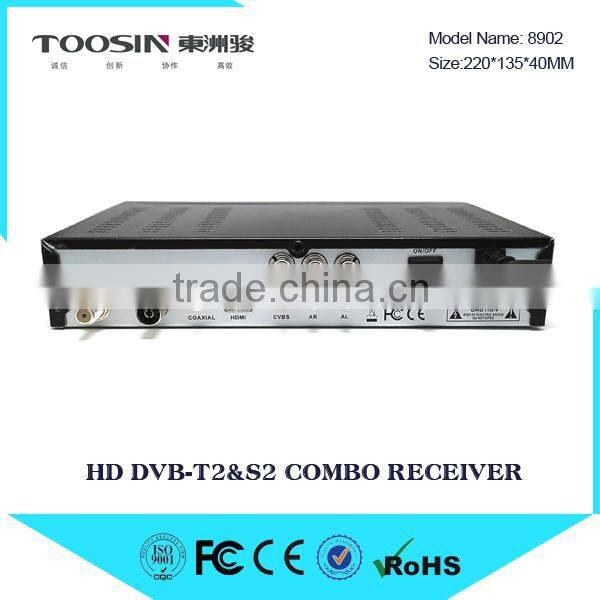

| Rear Panel | S2 LNB IN input connector | IEC60169-2 | ||
| T2 ANT input connector | IEC-162-2(IEC Female) | |||
| HDMI V1.3 | ||||
| RCA CVBS AL AR Connector x1 | ||||
| Ypbpr RCAx1 | ||||
| Coaxial x1 | ||||
| Power AC100~240V 50Hz/60Hz | ||||
| DVB-T2 Demodulation of dvb t2 s2 receiver | ||||
| DVB-T2 Demodulation | Terrisal Receiver StandardDVB-T2/T(EN_302755 V1.3.1/EN 300744) | |||
| Input RF Frequency 48~866MHZ | ||||
| Bandwidth6MHz,7MHz,8MHz | ||||
| Constellation QPSK 16-QAM 64-QAM and 256-QAM | ||||
| FEC 1/2, 3/5,2/3, 3/4,4/5,5/6 | ||||
| Guard Interval1/128 1/32 1/16 19/256 1/8 19/128 1/4 | ||||
| FFT Mode 2K/ 8K/32K | ||||
| Support Single and multiple PLPS | ||||
| Input level -83~ -5dBm | ||||
| DVB-S2 Channel Decoder of hd dvb t2 s2 receiver | ||||
| DVB-S2 Channel Decoder | Frequency Range | 950MHz-2150MHz | ||
| Sensitivity Level | - 10~ - 81dBm | |||
| Mode IFFT | 2k,8k | |||
| FEC Mode | 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |||
| Guard intervals | 1/4,1/8,1/16,1/32 | |||
| Constellation | QPSK,8PSK,16APSK | |||
| Neighboring channels immunity and Protection |
According to ETSI TR 101 190 V1.2.1 | |||
| Active Ant Power | 13/18V DC @ 500mA MAX,Overload Protection | |||
| Decoder of hd dvb t2 s2 receiver | ||||
| Video Decoder | Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) MPEG-2 Main Profile# Main Level(15Mbps) H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) |
|||
| Audio Decoder | MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding |
|||
| Powerful Multimedia Features of hd combo dvb t2 s2 receiver | ||||
| MediaCodec | avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc | |||
| Audio Codec | WMA,MP3,AAC (.wma,.mp3,m4a) |
|||
| Photo Codec | JPEG, BMP, PNG |
|||
| License of hd dvb t2 s2 receiver | ||||
| Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License. | ||||
| Accessories of hd combo dvb t2 s2 receiver | ||||
| Accessories | gift box | |||
| AV cable optional | ||||
| HDMI cable optional | ||||
| IR remote control | ||||
| User Manual | ||||
Packaging Details :
Carton meas.:48.5*33.5*43.2cm
Qty per export carton: 20 pcs
G.W:13.5KGS N.W:12.5KGS
20GP : 13440 sets ; 40GP: 26880 sets ; 40HQ: 32000 sets
Delivery Details :
Samples :
Lead time: 3-5 working days.
Charge:The buyer pays the sample cost and freight.
Mass order Production :
Lead time: 15-25 working days after receipt of deposit.
Shipment Method :
By Aircargo: Different Airline for your optional with good price .
By Sea : Different shipping company for your optional with good price .
By Express : DHL ,TNT, FedEx,UPS,EMS etc.
You can choose your own shipping company .
Service and Advantage:
♦ Sales service time:24 hours for one day, 6 days for one week to supply completely service for you any time.
♦ Warranty time:12 months.
Delivery Service :
♦ Export standard , safety and environmental packing Quick lead time for mass production.
♦ Accept EXW, FOB, CIF and other price terms.
Payment Terms:
♦ T/T, Western Union, Paypal , L/C, Money Gram.
Technical Service:
♦ Professional Engineering supplies technical supporting.
♦ Support OEM, ODM project.
Quality service:
♦ 100% quality testing for every finished products before delivery;
♦ Professional Aging testing room for aging testing time over 8 hours.
♦ Professional function testing for every process.
♦ One years warranty service for all products.
