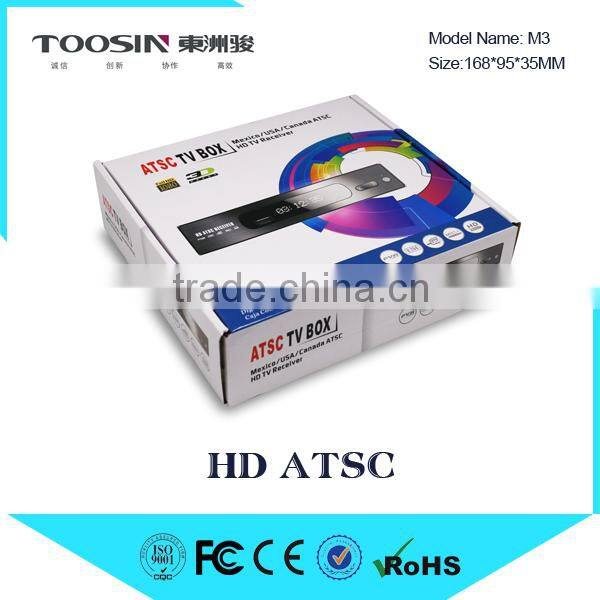

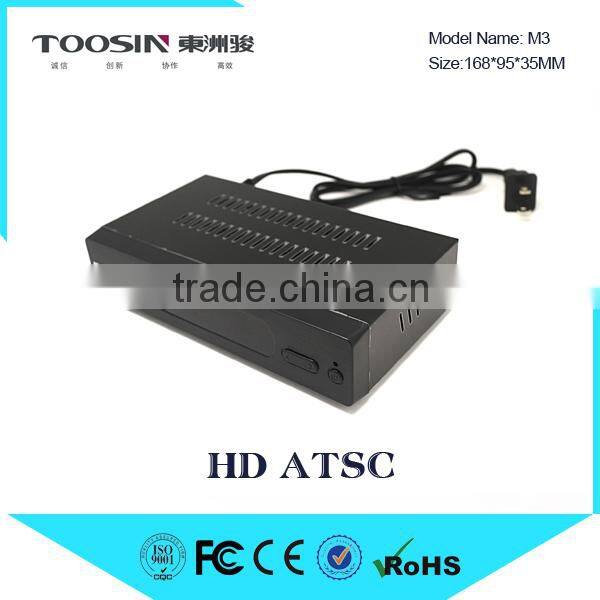

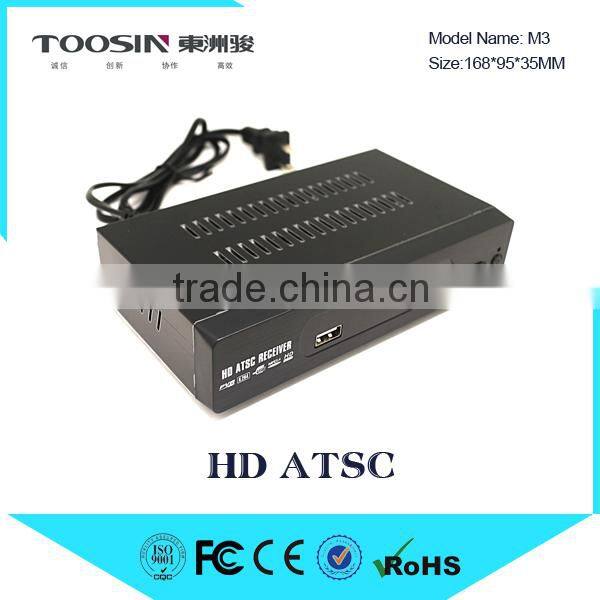

OEM/VMADE dvb-t/atsc/isdb-t digital tv box
| Features of dvb-t atsc isdb-t digital tv box | |||||
| 1.CPU:MSTAR-MSD7802(128 pin) MIPS 34Kf@550MHz | |||||
| 2. Memory: 32X16Mbit DDR2 Frequency1066 | |||||
| 3.Flash: 32M bytes | |||||
| 4.Demodulator Type: MSB1237 Chip Set | |||||
| 5.TUNER:Rafael R820T2 | |||||
| 6.USB 2.0:Embedded One Host, | |||||
| 7.Front Panel:4-digit LED display on front panel ; RED LED Standby,GREEN LED Lock | |||||

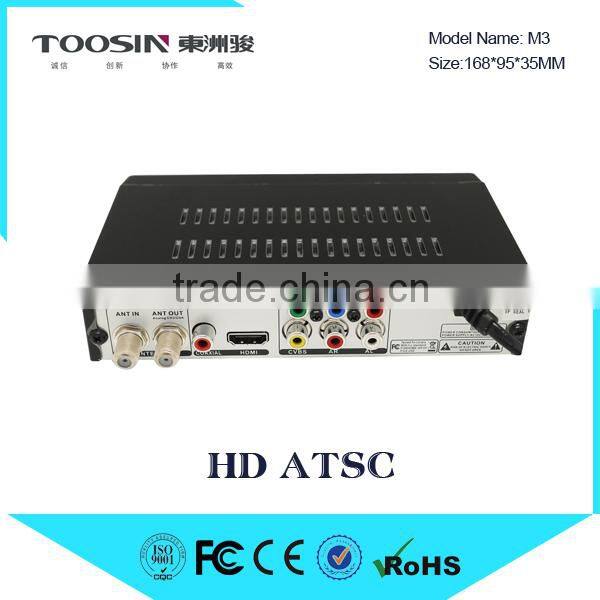

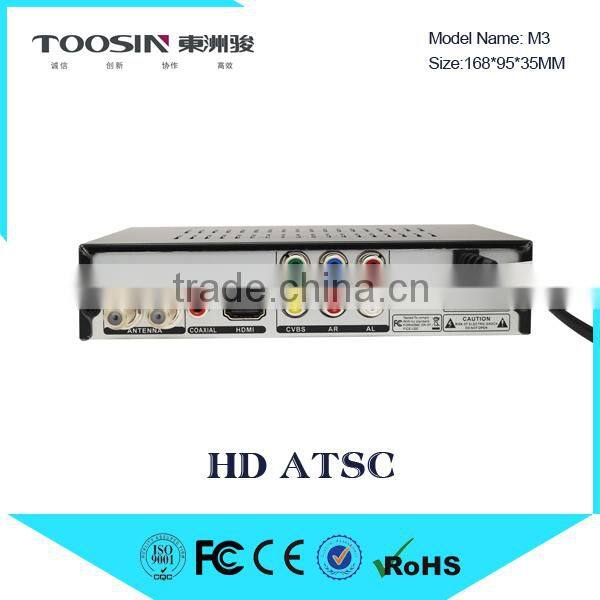

| Rear Panel of dvb-t atsc isdb-t digital tv box | |||||
| Tuner RF input connector | |||||
| Tuner RF Loop through connector | |||||
| HDMI V1.3 | |||||
| AV RCA x1 | |||||
| Ypbpr RCAx1 | |||||
| Coaxial x1 | |||||
| Power AC100~240V 50Hz/60Hz | |||||
| Demodulation of dvb-t atsc isdb-t digital tv box | |||||
| Standard ISO/IEC 13818-1; ARIB STB-B10 | |||||
| Input max. bit stream rate: 36Mbps (serial) / 9Mbps (parallel) | |||||
| ATSC NTIA and 8VSB Standard | |||||
| QPSK, 64QAM, 256QAM | |||||
| FEC: 1/2, 2/3, 3/4, 4/5,5/6, | |||||
| Guard Interval: 1/4,1/8,1/16,1/32,1/128 | |||||
| FFT Mode: 2K, 8K, 32K | |||||
| RF input frequency: 54-803MHz | |||||
| Bandwith: 6MHz | |||||
| Input level: -83 - -5dBm | |||||
| Video Decoding of dvb-t atsc isdb-t digital tv box | |||||
| Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 | |||||
| MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) | |||||
| MPEG-2 Main Profile# Main Level(15Mbps) | |||||
| H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) | |||||
| Audio Decoding of dvb-t atsc isdb-t digital tv box | |||||
| MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA | |||||
| E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding | |||||
| MediaCode:avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc | |||||
| Sortware Features of dvb-t atsc isdb-t digital tv box | |||||
| USA ATSC 8VSB /64/256 QAM digital broadcast HD receiver | |||||
| Converts digital broadcast to your analog TV | |||||
| By remote control to choose the RF 3/4 ch output | |||||
| Sleep Timer | |||||
| Support teletext/subtitle/muti-language | |||||
| Powerful and highly effective 7-day EPG function | |||||
| AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full | |||||
| 16:9 Wide Screen: | |||||
| USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback | |||||
| Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P | |||||
| Standard accessories of dvb-t atsc isdb-t digital tv box | |||||

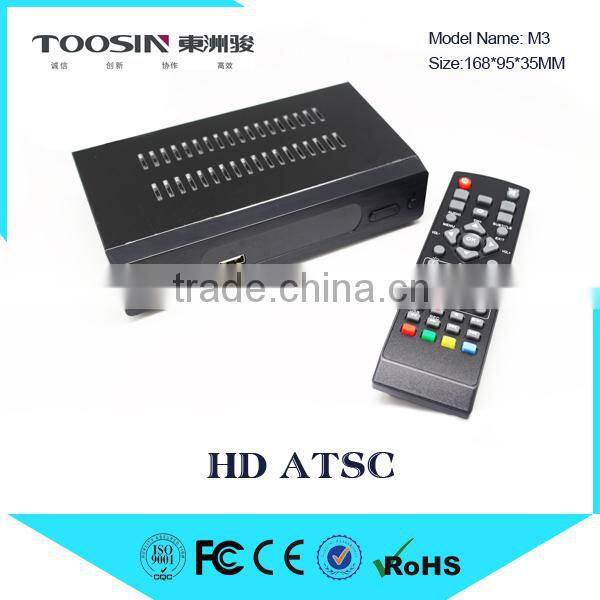

| Remote control without battery*1 | |||||
| User manual*1 | |||||
| Gift box*1 | |||||
| Customised LOGO: | |||||
| Acceptable for own LOGO(one color screen printing) | |||||
| Once your order Q'ty reach 2000pcs above | |||||
| Payment: | |||||
| 30% -50% deposit upon P.O. confirmation, balance before shipment | |||||
| Warranty: | |||||
| 1 year manufactory warranty since the delivery date, not including man-made damage. |
Packaging Details :
Carton meas.:48.5*33.5*43.2cm
Qty per export carton: 20 pcs
G.W:13.5KGS N.W:12.5KGS
20GP : 13440 sets ; 40GP: 26880 sets ; 40HQ: 32000 sets
Delivery Details :
Samples :
Lead time: 3-5 working days.
Charge:The buyer pays the sample cost and freight.
Mass order Production :
Lead time: 15-25 working days after receipt of deposit.
Shipment Method :
By Aircargo: Different Airline for your optional with good price .
By Sea : Different shipping company for your optional with good price .
By Express : DHL ,TNT, FedEx,UPS,EMS etc.
You can choose your own shipping company .
Service and Advantage:
♦ Sales service time:24 hours for one day, 6 days for one week to supply completely service for you any time.
♦ Warranty time:12 months.
Delivery Service :
♦ Export standard , safety and environmental packing Quick lead time for mass production.
♦ Accept EXW, FOB, CIF and other price terms.
Payment Terms:
♦ T/T, Western Union, Paypal , L/C, Money Gram.
Technical Service:
♦ Professional Engineering supplies technical supporting.
♦ Support OEM, ODM project.
Quality service:
♦ 100% quality testing for every finished products before delivery;
♦ Professional Aging testing room for aging testing time over 8 hours.
♦ Professional function testing for every process.
♦ One years warranty service for all products.
