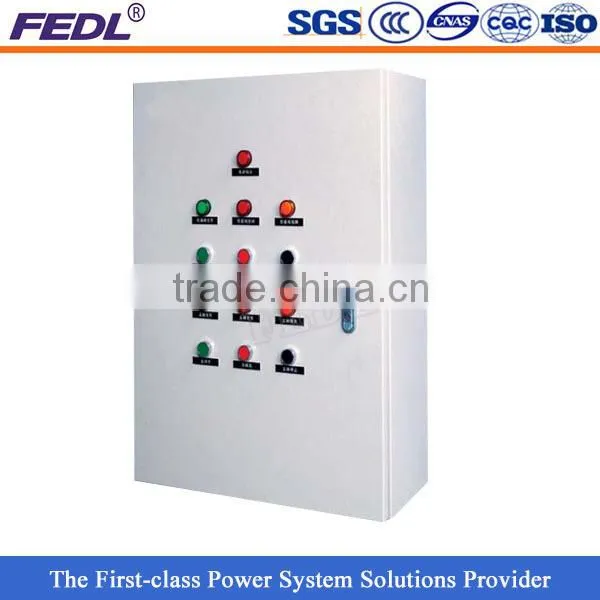

XM stainless steel termination electrical panel for distribution board
Features
- Strong generality
- Wide applications
- Flexible scheme
Description
It is divided into unfolded installation and concealed installation according to the installation ways. Unfolded installation is less affected by the location, easy to operate ; concealed installation is not affected by the wall decoration layer thickness, because of the adjustable distance between bottom box and door frames within a certain range.
Application
It is widely used in schools, apartments, high-rise buildings, ports, railway stations, airports, warehouses, hospitals, industrial enterprises and other places of architectural lighting and small power distribution controlling.It is suitable for the circuit with AC 50Hz, single phase 220V, three phase 380V, current up to 225A , as a circuit overload, short circuit protection and circuit switching; applicable for the places where civilian and non-professionals can enter into.
Normal operating conditions
- Ambient air temperature : -5°C ~ +40°C;
- Daily average temperature(Within 24h): ≤+35℃
- Relative humidity: ≤50% at the maximum temperature of +40℃ and may be higher at lower temperature, for example, 90% at +20℃.
- Altitude:≤2,000m;
- Installation inclination:≤ 5°;
- Installation places: Indoor; without fire, explosion risk, serious pollution, rain immersion, violent vibration, chemical corrosion and conductive dust.
Special operation conditions
If the switchgear will be used in conditions that exceed the normal environmental conditions, users should consult with the manufacturer.
Technical Parameter
No. |
Item(Unit) |
Data |
1 |
Rated Operational Voltage(V) |
AC380/220 |
2 |
Rated Insulation Voltage(V) |
AC660/400 |
3 |
Rated Frequency(Hz) |
50 |
4 |
Main Bus Rated Current(A) |
≤225 |
5 |
Main Bus Rated Short-time Withstand Current(kA) |
≤10 |
6 |
Main Switch Breaking Capacity (kA) |
≤ 10 |
7 |
Standard |
GB7251.3 |
8 |
Protection Degree |
≤IP30 |
