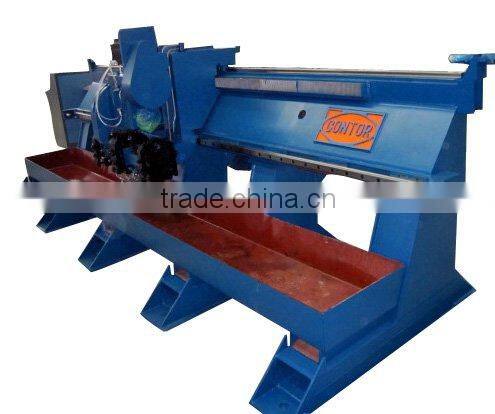

60 Pipe Cold Cutting Machine

60 Pipe Cold Cutting Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Pipe Cutting Machine
Pipe Material:
Carbon Steel
Application:
Other, Pipe production line
Payment & Shipping
Payment Methods:
Port of Shipment:
Da Lian
Delivery Detail:
Delivery time depends on order quantity.
Type Pipe Cutting Machine
Pipe Material Carbon Steel
Application Other, Pipe production line
Place of Origin Liaoning, China
Brand Name Contor
Model Number 60

Specifications

Smooth running,high precision,low noise
No burrs,without deburring work
No harm to people when saw blade crushed on cutting.

 A. The main parameters of  50 Cold saw

1. Drive Motor: YASKAWA Servo 11kw

2. Cutting Feed Motor:  YASKAWA Servo 2kw

3. Blade Rotate Motor:  YASKAWA Servo 5.5kw

4. Cutting Size: Pipe Diameter 25--60mm

5. Cutting Thickness: 0.8--3.5mm

6. Mill Speed: 80m/min

7. Cutting Frequency: 14/min

8. Precision: ±1mm
9. Full digitilized control, LCD human-computer interface to set up and amend parameters.

B. The specification of the CNC Flying Cutoff Machine:

Specification & Technical Parameters

50

76

114

Round Tube

9.5…50.8 mm

20…76.2 mm

76…114 mm

Square Tube

12-40mm

12-60mm

12-80mm

Rectangle Tube

15x10…50x30 mm

15x10…80x40 mm

15x10…100x60 mm

Thickness

0.8…3

mm

0.8…4.0

mm

0.8-4.0

mm

Speed

90

 m/min.

70

m/min.

60

m/min.

Precision

±2mm

±2mm

±2mm


C. The characteristic of cold saw

Adopt high speed steel or CTC tooth blade to cut pipes on tube mill.

 This new kind of flying saw achieved a smooth running and high precision cutting.

 The saw blade is rotating at a low speed with a low noise and without the harm to people when the saw blade crushed on cutting.


 Quality cutoff surface to eliminate troublesome secondary de-burring & de-dimpling works.
