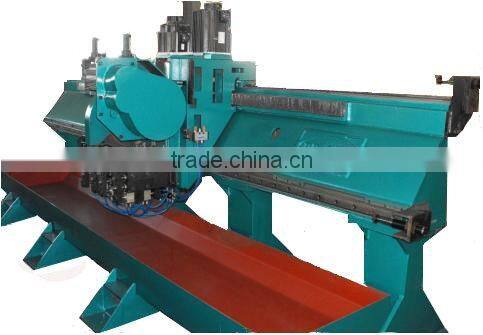

89 Pipe Cold Cutting Machine

Specifications

Smooth running,high precision,low noise
No burrs,without deburring work
No harm to people when saw blade crushed on cutting.

 A. The main parameters of  50 Cold saw

1. Drive Motor: YASKAWA Servo 11kw

2. Cutting Feed Motor:  YASKAWA Servo 2kw

3. Blade Rotate Motor:  YASKAWA Servo 5.5kw

4. Cutting Size: Pipe Diameter 25--60mm

5. Cutting Thickness: 0.8--3.5mm

6. Mill Speed: 80m/min

7. Cutting Frequency: 14/min

8. Precision: ±1mm
9. Full digitilized control, LCD human-computer interface to set up and amend parameters.

B. The specification of the CNC Flying Cutoff Machine:

Specification & Technical Parameters	50	76	114
Round Tube	9.5…50.8 mm	20…76.2 mm	76…114 mm
Square Tube	12-40mm	12-60mm	12-80mm
Rectangle Tube	15x10…50x30 mm	15x10…80x40 mm	15x10…100x60 mm
Thickness	0.8…3 mm	0.8…4.0 mm	0.8-4.0 mm
Speed	90  m/min.	70 m/min.	60 m/min.
Precision	±2mm	±2mm	±2mm

C. The characteristic of cold saw

Adopt high speed steel or CTC tooth blade to cut pipes on tube mill.

 This new kind of flying saw achieved a smooth running and high precision cutting.

 The saw blade is rotating at a low speed with a low noise and without the harm to people when the saw blade crushed on cutting.

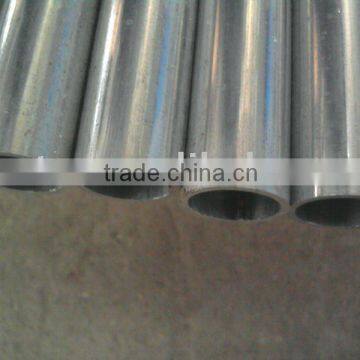

 Quality cutoff surface to eliminate troublesome secondary de-burring & de-dimpling works.
