Cheap Price Automatic Tea Box Shrink Packing Machine with Japan TOKIVA Technology
1.The machine with PLC control and touch screen
2.With CE approved
3.Servo motor contol
Feature of FFB automatic tea box shrink packing machine
1. The shrink packing machine is wiht PLC control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films.
2. Human-machine touch screen, Chinese or English displaying, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking, digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. All the controls are achieved by software, convenient for function adjusting and upgrading.
Parameter of FFB automatic tea box shrink packing machine
Model |
FFB-450/120 |
FFB-450/150 |
FFB-450/180 |
FFB-590/120 |
FFB-590/150 |
FFB-590/180 |
FFB-590/210 |
Max film width(mm) |
450 |
450 |
450 |
590 |
590 |
590 |
590 |
Packaging rate(bag/min) |
30-220 |
30-220 |
30-220 |
30-200 |
30-200 |
30-200 |
30-200 |
Bag length(mm) |
70-450 |
80-450 |
90-450 |
70-450 |
80-450 |
90-450 |
100-450 |
Bag width(mm) |
10-150 |
10-150 |
10-150 |
10-200 |
10-200 |
10-200 |
10-200 |
Product height(mm) |
5-45 |
5-65 |
5-85 |
5-65 |
5-85 |
5-120 |
5-140 |
Power voltage(v) |
220 |
220 |
220 |
220 |
220 |
220 |
220 |
Total installed power(kw) |
3.6 |
3.6 |
3.6 |
4 |
4 |
4 |
4 |
Power of shrink heating(kw) |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
Weight(kg) |
1000 |
1000 |
1000 |
1200 |
1200 |
1200 |
1200 |
Dimensions(LxWxH)mm |
5700*1050*1700 |
5700*1050*1700 |
5700*1050*1700 |
5700*1250*1800 |
5700*1250*1800 |
5700*1250*1800 |
5700*1250*1800 |

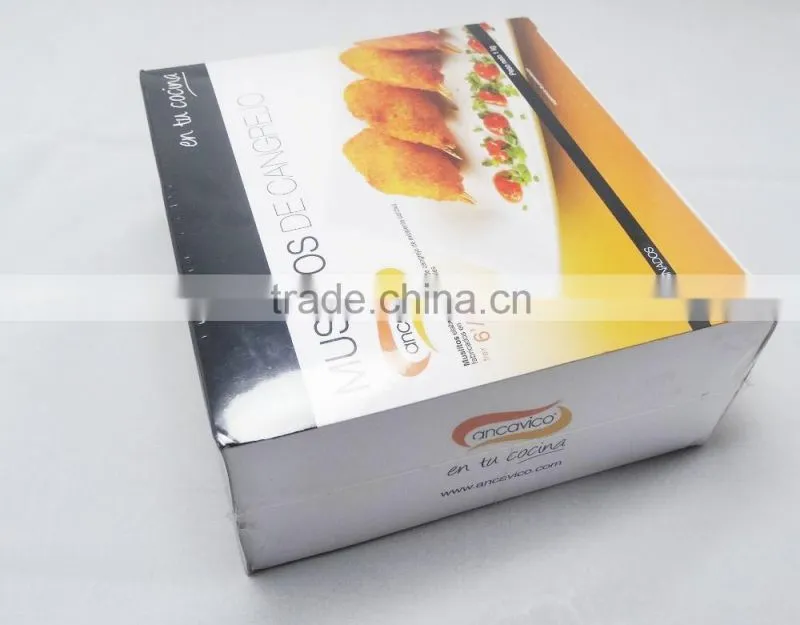

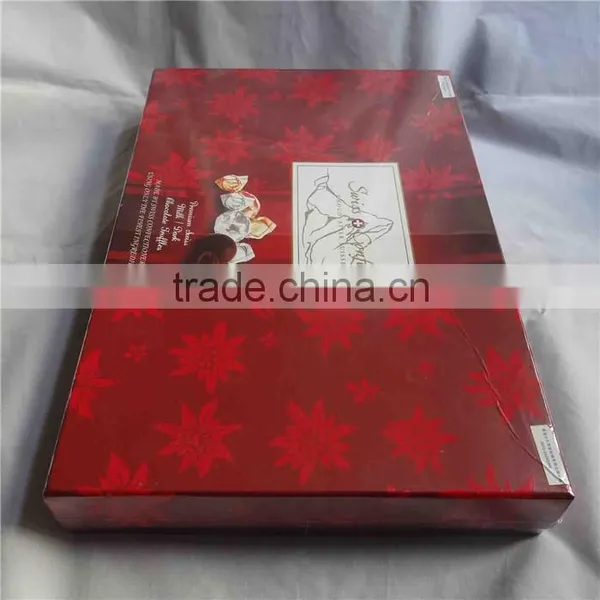

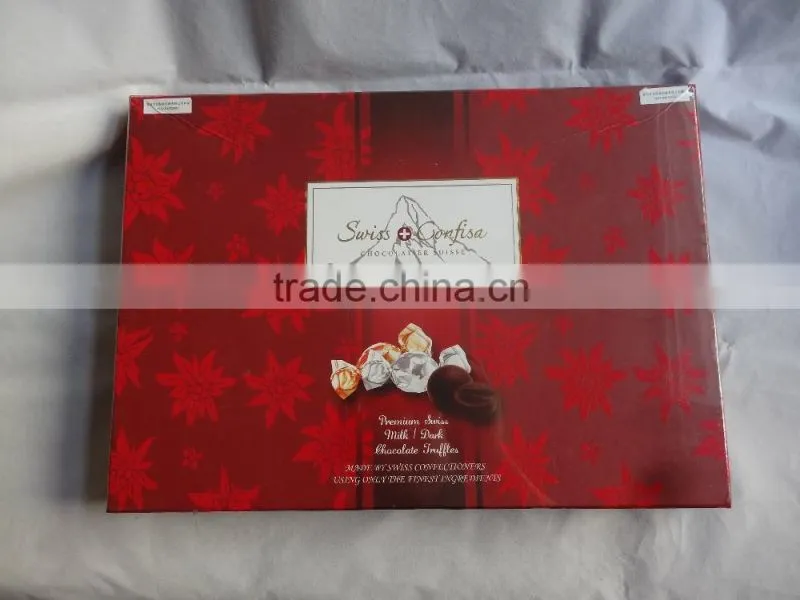

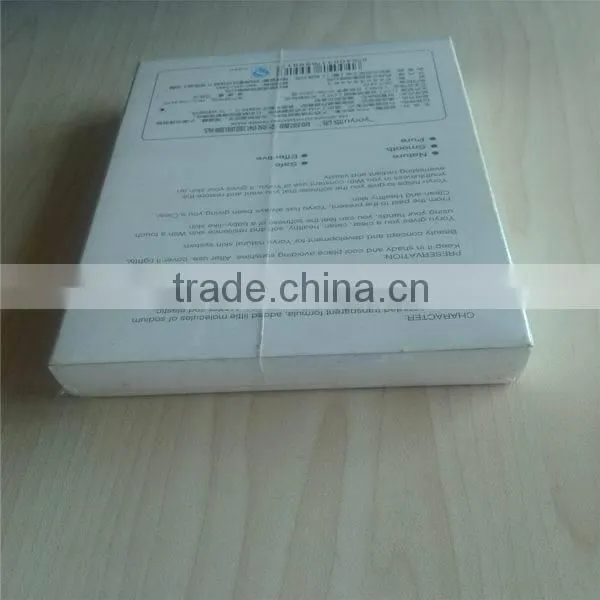

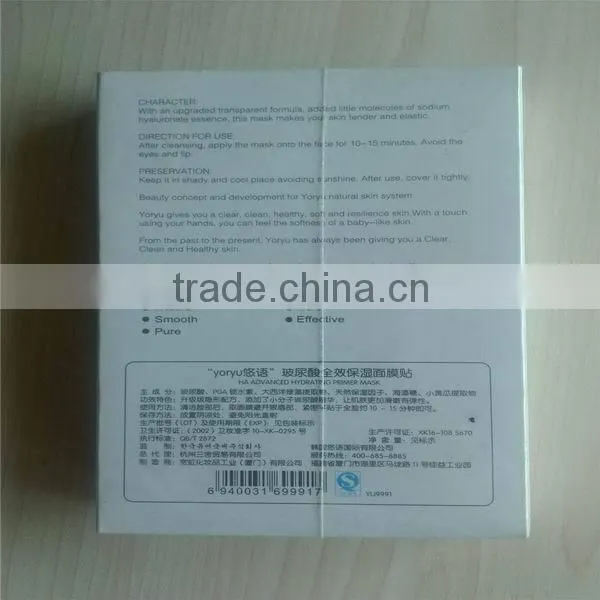

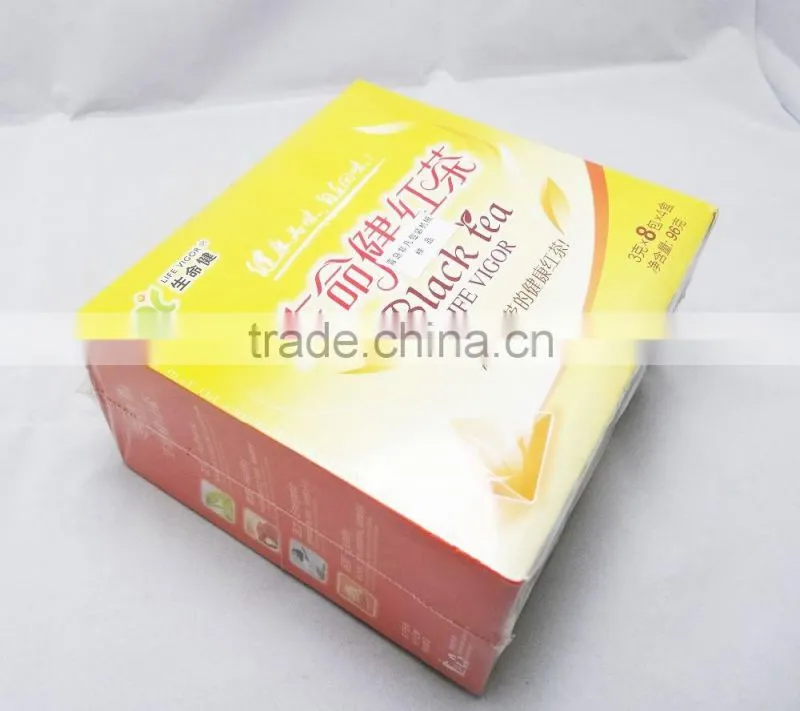

Packing products
1. Guaranty: One Year
2. One set of tool kits will be provided with the machine.
3. Before delivery, we will adjust the machine to fit for your product.
4. Any question, you can mail/call us at any time. And our most experienced engineers are assigned to give consulting service, and always available for dispatching abroad.
5.Manual is in English.
As an integrated manufacturing company, Qingdao Feifan Packing Machinery Co., Ltd mainly focus ono R&D, production, marketing and service of packing machines and related products. Our products include horizontal packing machines, shrink wrapping machines, box-motion type packing machines, cellophane overwrapping machines, biscuit oon edge packing machines, static shrink wrapping machines, end-folded X-fold biscuit on edge packing machine and pre-made bag giving packing machine. They are intensively used in food, cosmetics, pharmaceutical and chemical industries, for example, they can be used in medicine, instant noodle, milk, biscuit, bread, cake, frozen food, cosmetic product, sausage, soap packing and so on. Involved in more than 10 kinds of industries, marketing thousands of devices, exported to dozens of countries.
Why should you choose us?
1.We are one of the biggest manufacturers on packing machines in China.
2.We have more than 20years experience on manufacturing and exporting.
3.We have the excellent quality control.
4.We have the competitive price.
5.We have the completed sales and service team so that we can offer the best service
For more details, please contact us freely.
