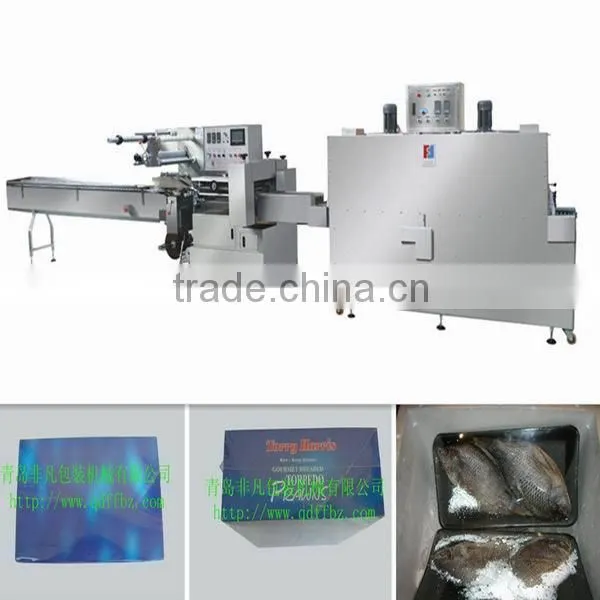

Pillow Type Frozen Seafood, Fish Shrink Packaging Machine based on Japan TOKIVA technology
Qingdao Feifan Packing Machinery Co., Ltd can supply all kinds of packaging machine for frozen seafood, fish packaging with competitive price in China
1.24years experience
2.Touch screen&PLC control
3.CE Certificated
Features of Automatic frozen seafood, fish shrink packaging machine:
1. This machine is with PLC controller, flexible bag length cutting, operator don't need to adjust the unloading working, saving time and saving films.
2. Human-machine touch screen, Chinese or English displaying, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking, digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. All the controls are achieved by software, convenient for function adjusting and upgrading.
Paramete of Automatic frozen seafood, fish shrink packaging machine
Model |
FFB-450/99 |
FFB-450/120 |
FFB-450/150 |
FFB-450/180 |
FFB-590/120 |
FFB-590/150 |
FFB-590/180 |
Max film width(m) |
450 |
450 |
450 |
450 |
590 |
590 |
590 |
Package rate(bag/min) |
30-220 |
30-220 |
30-220 |
30-220 |
30-200 |
30-200 |
30-200 |
|
Bag length(mm) |
70-450 |
70-450 |
90-450 |
100-450 |
80-450 |
90-450 |
100-450 |
Bag width(mm) |
10-150 |
10-150 |
10-150 |
10-200 |
10-200 |
10-200 |
10-200 |
Product height(mm) |
5-45 |
5-65 |
5-85 |
5-120 |
5-65 |
5-85 |
5-120 |
Power voltage(v) |
220 |
220 |
220 |
220 |
220 |
220 |
220 |
Total installed power(kw) |
3.5 |
3.6 |
3.6 |
3.6 |
4 |
4 |
4 |
Weight(kg) |
1000 |
1000 |
1000 |
1000 |
1200 |
1200 |
1200 |
Dimensions(LxWxH)mm |
5700*1050*1700 |
5700*1050*1700 |
5700*1050*1700 |
5700*1050*1700 |
5700*1250*1800 |
5700*1250*1800 |
5700*1250*1800 |
The frozen seafood, fish shrink packaging machine will be packed in two cartons
Delivery time: 25 working days
1. Guaranty: One Year
2. One set of tool kits will be provided with the machine.
3. Before delivery, we will adjust the machine to fit for your product.
4. Any question, you can mail/call us at any time. And our most experienced engineers are assigned to give consulting service, and always available for dispatching abroad.
5.Manual is in English.
As an integrated manufacturing company, Qingdao Feifan Packing Machinery Co., Ltd mainly focus ono R&D, production, marketing and service of packing machines and related products. Our products include horizontal packing machines, shrink wrapping machines, box-motion type packing machines, cellophane overwrapping machines, biscuit on edge packing machines, static shrink wrapping machines, end-folded X-fold biscuit on edge packing machine and pre-made bag giving packing machine. They are intensively used in food, beverage, cosmetics, pharmaceutical and chemical industries, for example, they can be used in medicine, instant noodle, milk, biscuit, bread, cake, frozen food, cosmetic product, sausage, soap packing and so on. Involved in more than 10 kinds of industries, marketing thousands of devices, exported to dozens of countries.
For more details, please contact us freely.
