Specifications

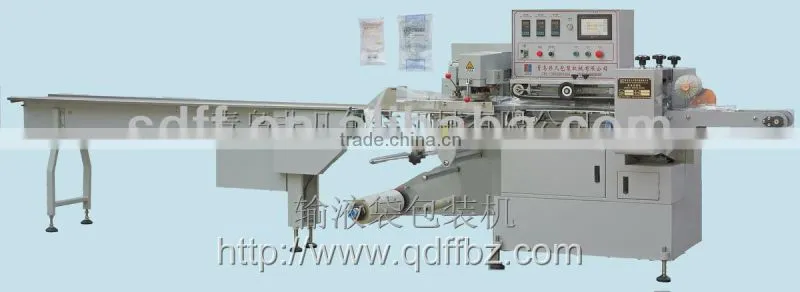

Automatic medical pillow packing machine is fit for infusion bag/bottles,with 24years packing experience and Japanese technologyFFY series Automatic Medical Pillow Packing Machine //automatic packaging machine
Parameters:
FFY Series |
450/99 |
450/120 |
450/150 |
590/180 |
Max Film Width (mm) |
450 |
450 |
450 |
590 |
Speed (Bag/ min) |
30-240 |
30-240 |
30-180 |
30-180 |
Packing Length (mm) |
70-350 |
70-350 |
100-450 |
100-450 |
Packing Width (mm) |
20-130 |
20-130 |
20-130 |
20-180 |
Packing Height (mm) |
10-35 |
10-45 |
10-70 |
45-105 |
Electric Power Voltage (v) |
220V |
220V |
220V |
220V |
Total Installed Power |
4KW |
|||
Weight (kg) |
1000KG |
1100KG |
1100KG |
1100KG |
Dimensions (L*W*H) (mm) |
5700*1050*1710 |
5700*1050*1710 |
5700*1050*1710 |
5700*1250*1820 |
Mechanical Features:
1. Fit for plastic infusion bag/bottle,automatic arrangement and spacing of products on conveyors,reduce labor.
2. The control and drive unit is composed of a servo motor,programmable PLC and touch screen color LCD,improving a great improvement in the cutting accuracy of bag length,speed adjustable range,intelligent and automation.
3. Accoring to different products,adopts different kinds of feeding,punctual material feeding seamlessly connects with front and rear production lines.
4. Main parameters for variety of products can be kept and use conveniently
5. The tracing and photoelctric switches solve the problem of reflective liquid as a mirror and guarantees accuracy of cutting,which makes the cutter always stop at accurate position,avoids film burning and reduces materials wasting
6. According to user's needs to provide different automatic receiving device and automatic conveying device.
7. AC moto attached converter for releasing step-less control
8. Position stop function avoid film damage
9. Rotary cutters improve packing speed
10.Protection cover for safety of user.
Packing material:
Any heatmelt-cut sealing materials like Paper-PE,OPP/AL/PE,BOPP etc.
Application:

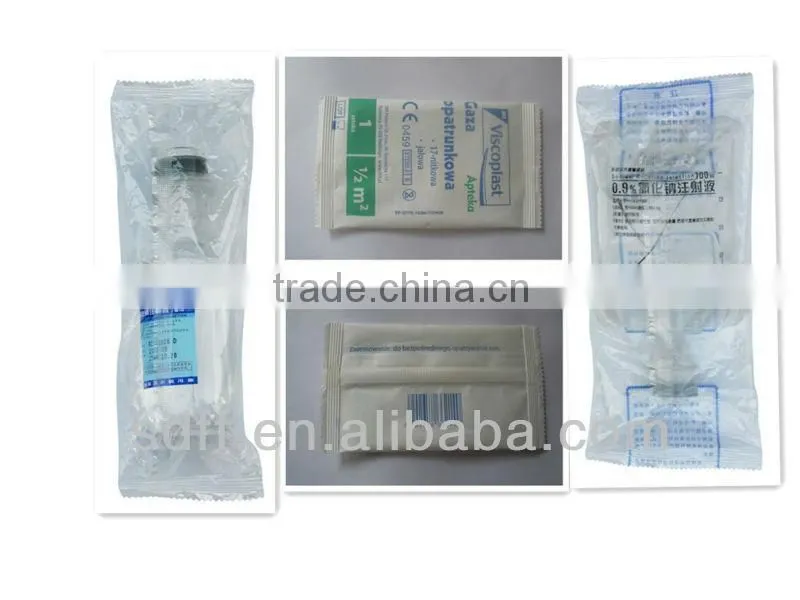

This FFY series automatic packaging machine is suitable for packing plastic infusion bags or bottles,etc.
