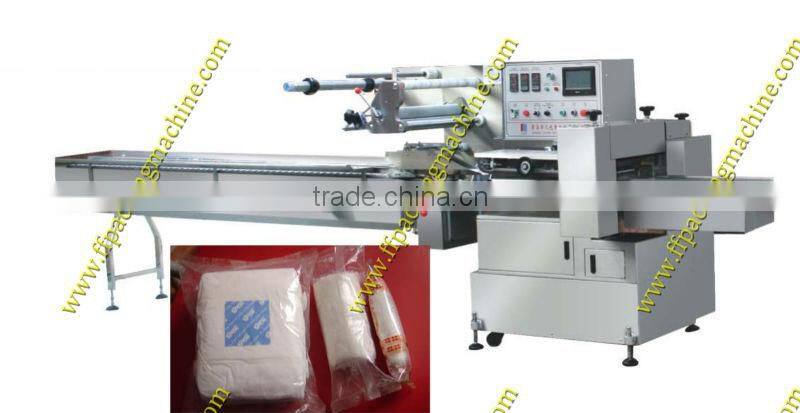

Help CenterFull-automatic Bandage Flow Packing Machine With CE Certificated
Related Products
-
Automatic Tablet/pill Horizontal Packing Machine(FFA)NegotiableMOQ: 1 Set -
Medicine Automatic Horizontal Packing MachineNegotiableMOQ: 1 Set
-
High Quality Infusion Bag Packing MachineNegotiableMOQ: 1 Set
-
Automatic Gauze Packing MachineUS$ 1 - 10,000MOQ: 1 Set
-
Pharmaceutical Packaging Machine(FFA)US$ 1 - 20,000MOQ: 1 Set
Specifications
full-automatic bandage flow packing machine adopts servo motor with higher control precision realizing step-less control and dyfull-automatic bandage flow packing machine adopts servo motor with higher control precision realizing step-less control and dynamic adjusting during operation.
Tecnical data
Model |
FFA-450/99 |
FFA-450/120 |
FFA-450/150 |
FFA-450/180 |
FFA-590/120 |
FFA-590/150 |
FFA-590/180 |
||
Max film width(mm) |
450 |
450 |
450 |
450 |
590 |
590 |
590 |
||
Packaging speed(bag/min) |
30-220 |
30-220 |
30-220 |
30-220 |
30-200 |
30-200 |
30-200 |
||
Bag length(mm) |
70-450 |
70-450 |
90-450 |
100-450 |
80-450 |
90-450 |
100-450 |
||
Bag width(mm) |
10-150 |
10-150 |
10-150 |
10-200 |
10-200 |
10-200 |
10-200 |
||
Product height(mm) |
5-45 |
5-65 |
5-85 |
5-120 |
5-65 |
5-85 |
5-120 |
||
Power voltage(v) |
220 |
220 |
220 |
220 |
220 |
220 |
220 |
||
Total installed power(kw) |
3.5 |
3.6 |
3.6 |
3.6 |
4 |
4 |
4 |
||
Weight(kg) |
1000 |
1000 |
1000 |
1000 |
1200 |
1200 |
1200 |
||
Dimensions(LxWxH)mm |
5700*1050*1700 |
5700*1050*1700 |
5700*1050*1700 |
5700*1050*1700 |
5700*1250 |
||||
Features:
1. PLC controller, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.
2. Human-machine touch screen, Chinese or English displaying, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking, digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. All the controls are achieved by software, convenient for function adjusting and upgrading.
