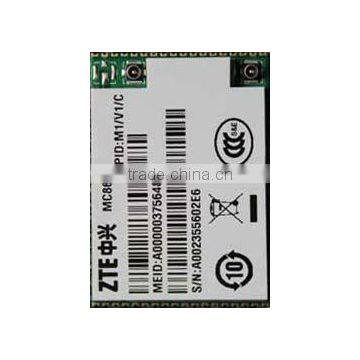

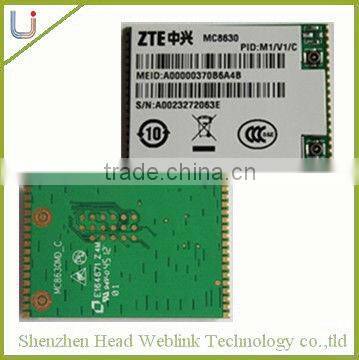

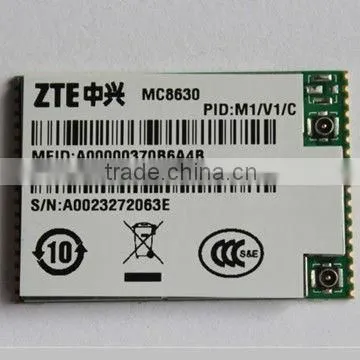

3g Wireless Module Zte Evdo Mc8630
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
MC8630
Type:
Other, 3G Wireless Module
Brand Name:
ZTE
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZTE MC8630 Sound Voice Qualcomm Recording Evdo 3g ModuleUS$ 30 - 50MOQ: 1 Piece -
EVDO 800MHz Wireless Module Mc8630 4G MODEM Win2K/XP/Vista/WinCE/Mac/LinuxNegotiableMOQ: 1 Piece
-
ZTE MC8630 Sound Voice Qualcomm Recording Evdo 3g Module Compatible With MT3732 MG3732 MW3736NegotiableMOQ: 1 Piece
-
Low Cost EVDO 3G Module Modem ZTE MC8630 Laptop for AndroidNegotiableMOQ: 1 Piece
-
Cdma 1x Module Ev-do ModemNegotiableMOQ: 1 Piece
Model Number
MC8630
Type
Other, 3G Wireless Module
Brand Name
ZTE
Place of Origin
Guangdong, China
| Module Specification | ||
| Module Model | Technical System | Work Frequency |
| MC8630 |
CDMA 2000 1X EVDO RevA Down compatible with CDMA 1X, EVDO Rev0 |
CDMA 800MHz |
| Module's Basic Functions | |
| Basic Functions | Descriptions |
| Voice | EVRC, 13Kqcelp, 4GV high quality voice(need network support), add PCM interface for phone applications in Version C |
| SMS | Support TEXT |
| Data | Forward data rate's peak value up to 3.1 Mbit/s, and reverse data rate's peak value up to 1.8 Mbit/s. |
| Module's Interface | |
| Module's Interface | Descriptions |
| UART interface | Support software customization, only version C supports port |
| USB interface l l |
Software download upgrade Data communication(MODEM) USB2.0 |
| Power interface | Used to supply the power, reset, and power on-off the module |
| Audio interface | Two audio input/output, one for diffenrential, one for single-end |
| ON/OFF interface | Press key to power on/off, or toggle the switch to power on/off(indirect switch power) |
| PCM interface | Only version C supports PCM interface |
| UIM ard interface | Built-in UIM or R-UIM , Class B/C UIM interface specification |
| Antenna interface | Provides two RF connectors and two stamp-hole PINs, used for CDMA main antenna and auxiliary antenna. Select the detailed connection method. |
| Technical parameters | |
| Technical parameters | Description |
| Working temperature | -30°C ~ +75°C |
| Input voltage | 3.0V-4.4V typical: 3.6V |
| Maximum current | 650mA @ -105.5 dBm recommended current: 1A |
| Standby current | Min. standby current 3mA @ -75 dBm,(Method: USB hangup, RXD pull-down for 20s) |
| Talk current | 230mA @ -75 dBm |
| Rx. sensitivity | -105.5dBm |
| Tx. power | 23dBm ~ 30dBm (Class II) typical testing value: 24.0dBm |
| Frequency range |
800MHz Tx: 824~849 MHz Rx: 869~894 MHz |
