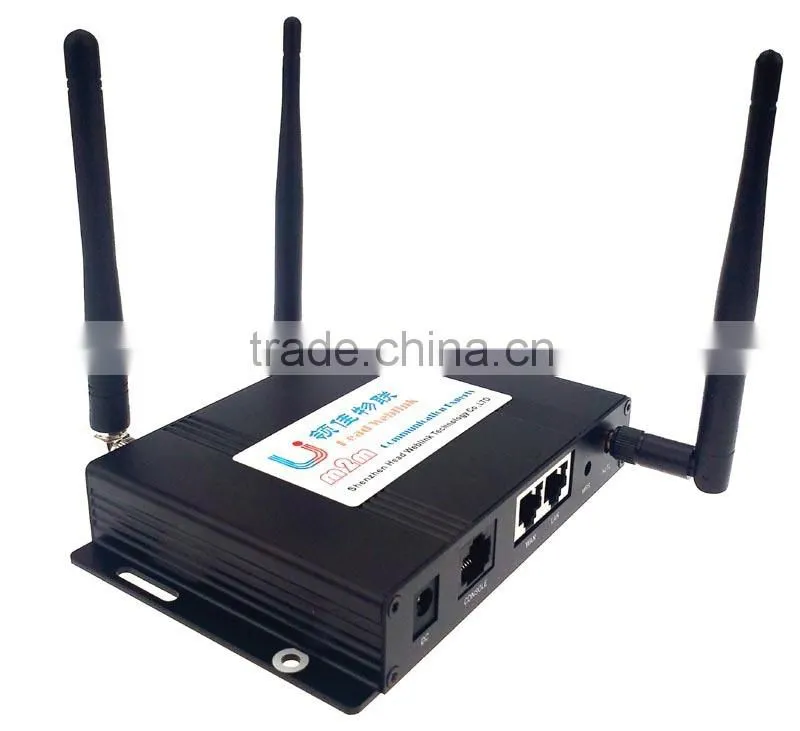

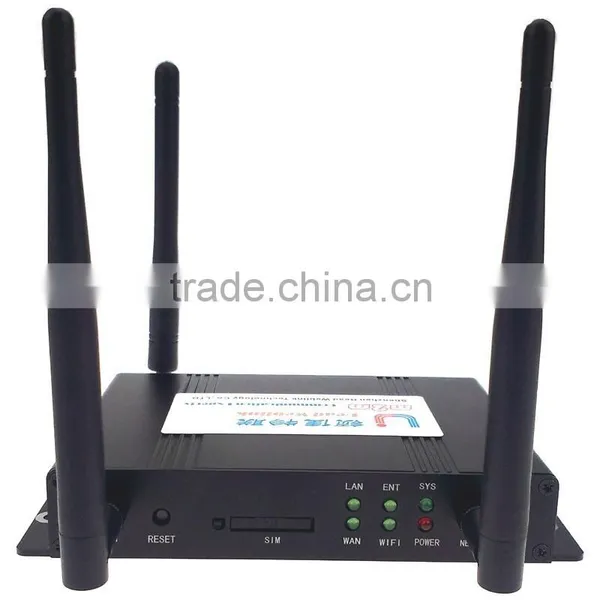

Industrial 3G or 4g LTE Wireless Router,with RS232 interface,with sim card slot

Frequency band

  * 4G LTE router.

1). HDRM1004GT.

 2). HDRM1004GF

Lartin America version.

   FDD- LTE. B2,B4,B5,B7,B17

   TDD- LTE.  B38

   WCDMA/UMTS . 2100/1900/1700/850(900)MHz

   GSM/GPRS. 850/900/1800/1900MHz.

EU_ASIA version.

        FDD- LTE. B1,B3,B7,B8,B20

        TDD- LTE. B40,B38

        WCDMA/UMTS . 2100/1900/1700/850(900)MHz

        GSM/GPRS. 850/900/1800/1900MHz

 * 3G router.

1). HDRM1003GW

     WCDMA. 850/1900MHz  & 900/2100MHz

     GSM. 850/900/1800/1900MHz

2). HDRM1003GE

         EVDO 800MHz &  800/1900MHz

*Note.

 We can provide customized frequency bands.

 Data rates

* 4G LTE router.

1).HDRM1004GT.

   - Uplink up to 50Mbps,

   - Downlink up to 100Mbps

   - Uplink up to 2.2 Mbps,

   - Downlink up to 2.8 Mbps

   - Uplink up to 128Kbps,

   - Downlink up to 384Kbps

   - Uplink up to 11 Mbps,

   - Downlink up to 42 Mbps

   - Uplink/Downlink up to 384Kbps

             - Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)

             - Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)

             - GSM data rate 14.4Kbps

             - WCDMA data rate 57.6Kbps

             - WCDMA 64kbps CSD for Video call

2). HDRM1004GF

   - Uplink up to 50Mbps,

   - Downlink up to 100Mbps

   - Uplink up to 11 Mbps,

   - Downlink up to 42 Mbps

   - Uplink/Downlink up to 384Kbps

             - Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)

             - Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)

             - GSM data rate 14.4Kbps

             - WCDMA data rate 57.6Kbps

             - WCDMA 64kbps CSD for Video call

* 3G router.

1). HDRM1003GW

  WCDMA. DL 14.4Mbps, UL 5.76Mbps

2).HDRM1003GE

  EVDO. DL 3.1Mbps, UL 1.8Mbps

  Power supply

   Input. 100V~240V,50Hz~60Hz

       Output. 5V,1000mA

 Conditions

      Operating Temperature . -30℃ -- +70℃

      Operating humidity. 5%--95%
