Home > Manufacturing & Processing Machinery > Textile Machinery & Parts > Weaving Machine > HY-968 Warping Machine

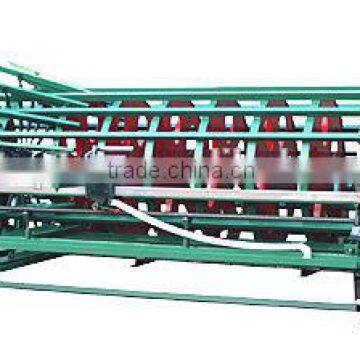

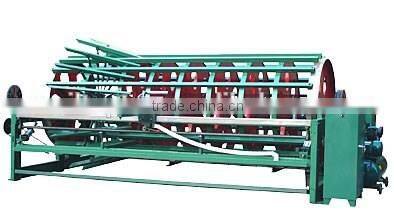

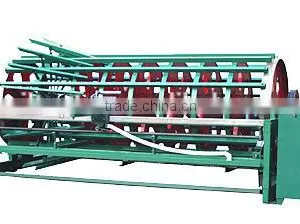

HY-968 Warping Machine
US$ 30,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Warping machine
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed Electronic Device With Clean Hy-988 Warping MachineUS$ 30,000 - 50,000MOQ: 1 Set -
HY-988 High Speed With Clean Warping Machine CottonUS$ 30,000 - 50,000MOQ: 1 Set
-
HY-988 Type High Speed Warping Machine With CleanUS$ 30,000 - 50,000MOQ: 1 Set
-
WT968 Warping MachineUS$ 6,000 - 12,000MOQ: 2 Sets
-
WT978 Warping MachineUS$ 24,000 - 28,800MOQ: 1 Set
Condition
New
Type
Other, Warping machine
Place of Origin
Zhejiang, China
Brand Name
wiltoptex
Model Number
HY-968
Weight
5500kg
Power(W)
5.5KW
Certification
ISO9001 CE
Warranty
1 Year
After-sales Service Provided
Overseas service center available
HY-968 Warping Machine
Main specifications:
| Item | Unit | Parameter |
| Reed Width | mm | 1600-3400 |
| Dia. Of warp beam | mm | ≤820 |
| Warping Speed | m/min | ≤330 |
| Bearning Speed | m/min | ≤50 |
| Warping Brake Distance | m | 2.0 |
| Warping Cone Length | mm | 950-1200 |
| Adjusting Angle | ° | 5°-13° |
| Warp Reeding Speed | mm/r | 0.52-2.33 |
| Voltage | v | 380(50HZ) |
| Power of Warping Motor | kw | 3.0(960r/min) |
| Power of Reverse Motor | kw | 7.5(1460r/min) |
| Power of frequence Converter | kw | 11 |
We can manufacture according to customer's requirement.
