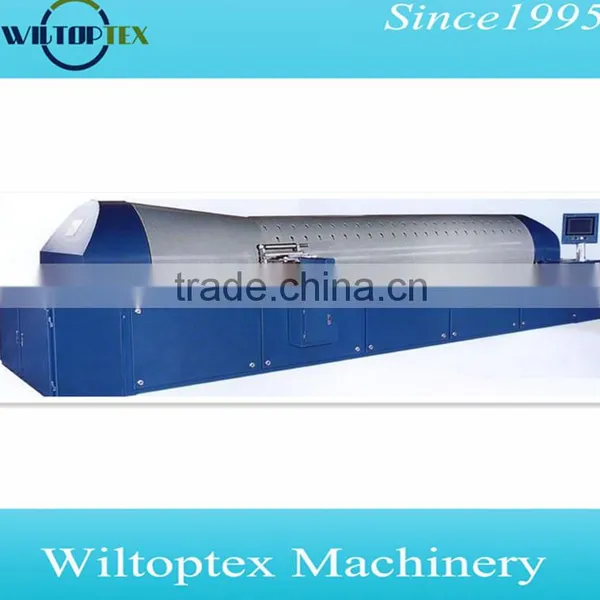

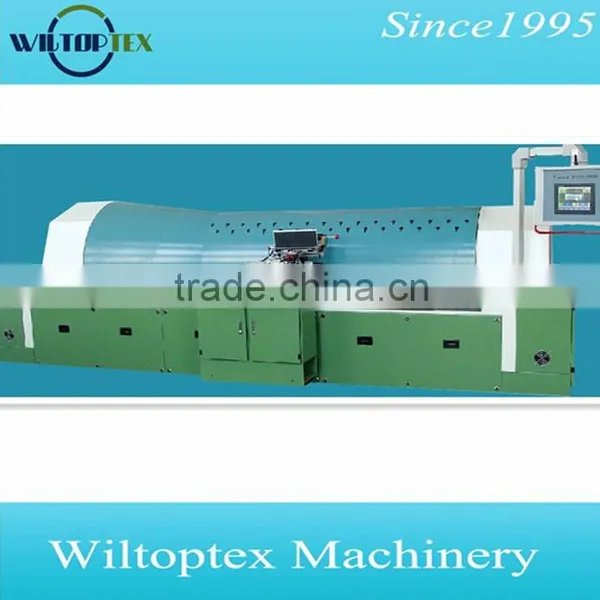

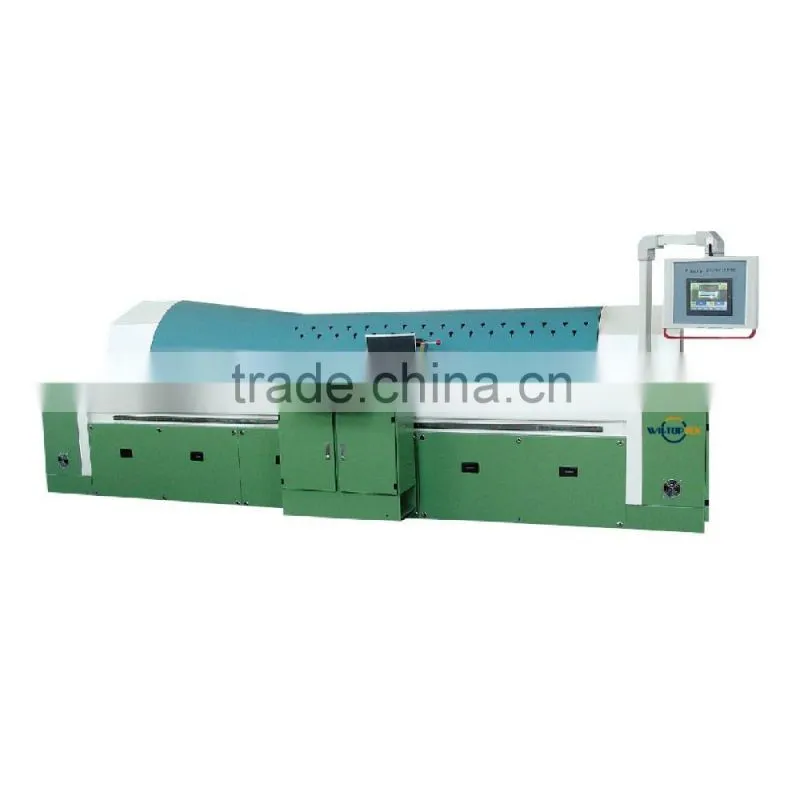

HY-988 High Speed With Clean Warping Machine
Main specifications:
Diameter of swift |
1000mm |
Breadth of warping |
2300-3600mm |
Length of cone |
1200mm |
Angle of cone |
7° |
Lead of strip and walk of silk |
0.45-4.5 sixteen shelves |
Suitable diameter of loom beam plate board |
≤1000mm |
Power of warping |
5.5KW |
Power of inverse axes |
11KW |
Power of frequency conversion |
11 KW |
Rate of warping |
0-300m/min |
Rate of inverse axes |
0-100m/min |
Number of spindles |
480 |
Distance of spindles |
250*250 |
Weight of Mainframe |
About 5500kg |
We can manufacture according to customer's requirement.
Scope of Application
This type high speed strip warping machine is suitable to variety minute strip warping on chemical fiberfilament, cotton and kapok wool fabric blending, and can be front weaves prepares with domestic produced sword pole, middle-grade no arris loom, spraying of wter loom, spraying of jet loom and piece arris loom. It is also the optimal equipment for color weaving, special type industry and canvas weave industry.
Main Technical Characteristics:
♥ Motion of swift of mainframe, fixation of pony roll frame and inverse axis installment, invariabity of angle of friction when the yarn halves twists, eauality of tensity.
♥ Willful establishment of frequency conversion velocity modulation and warping speed
♥ Permanet line fast coiling of inverse axis
♥ Electron counts(Length and meter), automatically decide length and quantity.
♥ Steel swift after high accuracy transient equilibrium verification.
♥ Barometric pressure controls loom beam, easy of operation.
♥ Inside brake of warping, steel inverse axis with brake.
♥ Having many kinds of forms pony roll frame, the distance and the number of spindles may design according to use's request.
♥ Having the infrared automatic stop arrangement and many kinds of forms sigle gauze tensity equipment.
