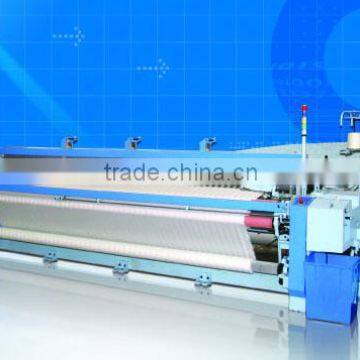

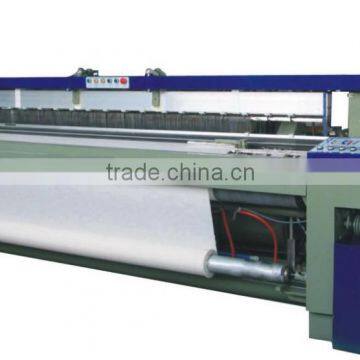

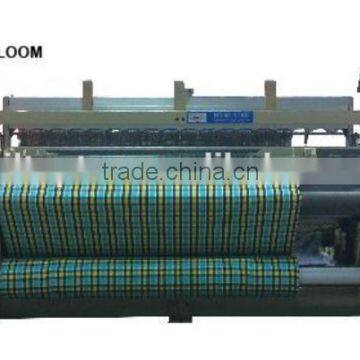

Air Jet Loom Towel Machine

Name: Air Jet Loom Towel Machine
Brand: wiltoptex
SKU: 126789523
Availability: InStock

US$ 15,000 - 22,000 MOQ: 2 Sets

Key Specifications

Condition:

New

Type:

Air Jet Loom

Application:

Fabric

Hangzhou Wiltop Textile Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Air Jet Loom

Application Fabric

Production Capacity 100%

Place of Origin Zhejiang, China

Brand Name wiltoptex

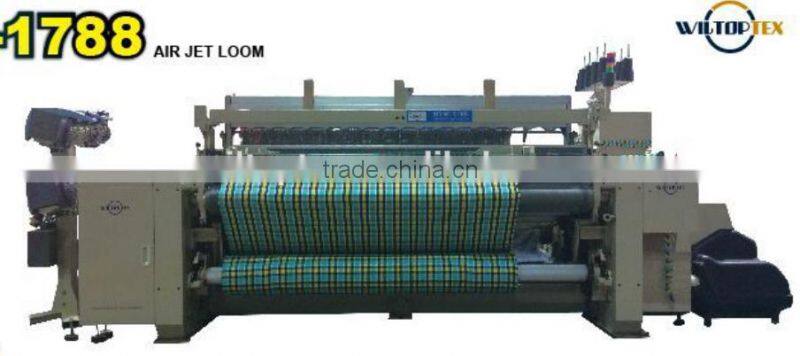

Model Number HYAL-1788

Dimension(L*W*H) 1

Weight 1

Power(W) 2.7kw-3.7kw

Certification ISO9001 CE

Warranty 1 Year

After-sales Service Provided Overseas service center available

China Maunufacture ZAX Tsudakoma Air Jet Loom

FEATURE

♥ New type of weft insertion: economizing air resource

♥ New type of beating: running as high speed and low oscillation

♥ It-intelligence board: easy to understand with color picture two-way communication

Reed width(cm)	190,210,230,280,330,360cm
Useful reeding width	Same as nominal width maximum reduction 60 cm
Speed(r/min)	500-900
Yarn range(d)	Short yarn: Ne100-Ne2.5
Yarn range(d)	Filament: 56dtex-1350dtex
Drive	PSS programmable to start, push-button operation with both hands
Motor Power	2.7KW, 3.0KW, 3.7KW
Weft selection	2-color mixing, 2 color at-will or 4 colour,6 color
Shedding	Negative(Positive) cam shedding; Shaft number upto 10
Let-off	Electronic let off with reverse function
Flange dia	800mm,1000mm
Beating	Crank type beating, multiple sley sword beating
	4 links(reed space up to 230cm)
	6 links(Reed 230cm and more)
	intermediate rocking supporter
Measuring/Storing	FDP Free Drum Pooling
Filling supply stand	Floor-mounted for 4 packages(2 colors),Floor-mounted for 8 packages(4 colors)
Selvedge	Planetary gear motion
Waste filling removal	Catch cord type (gear type)
Cutter	Mechanical cutter
Lubrication	Oil bath system for main drive parts, centralized lubrucation(manual grease)

Take up		Electronic take up
		Mechanical take up
	Max take up Dia	600cm
	Pick density	6.6-80.5 picks/cm(16.7-204.4 picks/inch)
	Length count	i-board display with fix meausre stop fuction
	Temple	Floor-monted
Auto-stop motion	Catch yarn	Reflective weft feeler(Dingle feeler)
	Stop cause indication	Message on i-board, 4 color lamp for indicating cause
	Others	Stop motion for selvage and catch cord yarn
