Electronic Jacquard Weaving Loom Machine for Curtain and Home Textile

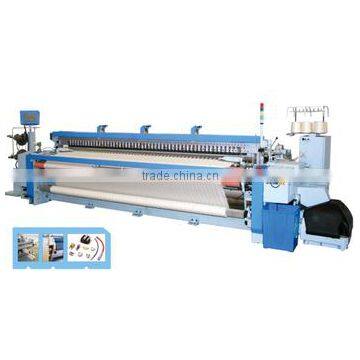

Electronic Jacquard Weaving Loom Machine for Curtain and Home Textile photo-1
Electronic Jacquard Weaving Loom Machine for Curtain and Home Textile photo-2

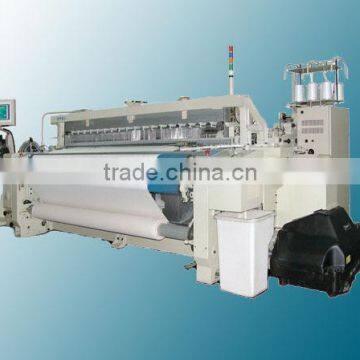

Electronic Jacquard Weaving Loom Machine for Curtain and Home Textile photo-3
Electronic Jacquard Weaving Loom Machine for Curtain and Home Textile photo-4

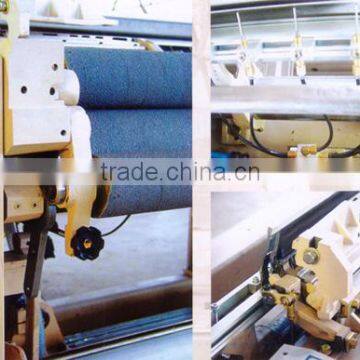

Electronic Jacquard Weaving Loom Machine for Curtain and Home Textile photo-5

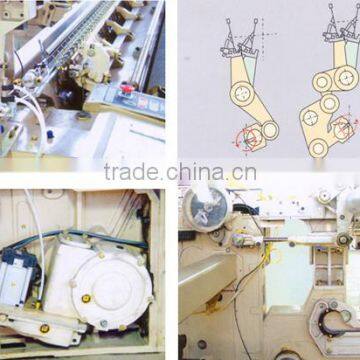

Electronic Jacquard Weaving Loom Machine for Curtain and Home Textile photo-6
US$ 15,000 - 22,000 MOQ: 2 Sets
Key Specifications
Get Latest Price
Condition:
New
Type:
Air Jet Loom
Application:
Fabric
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Air Jet Loom
Application Fabric
Production Capacity 100%
Place of Origin Zhejiang, China
Brand Name wiltoptex
Model Number HYAL-1788
Dimension(L*W*H) 1
Weight 1
Power(W) 2.0kw-3.7kw
Certification ISO9001 CE
Warranty 1 Year
After-sales Service Provided Overseas service center available

HYAL-1788 Cotton Making Air Jet Jacquard Loom Machine

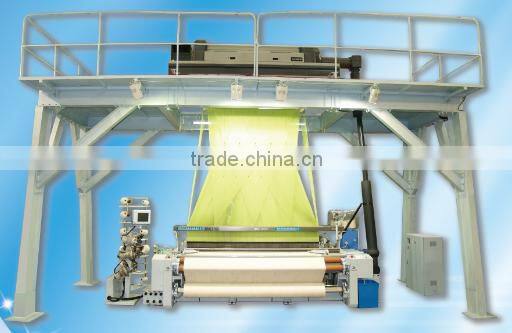

 Electronic Jacquard Weaving Loom Machine for Curtain and Home Textile

FEATURE

♥ New type of weft insertion: economizing air resource

♥ New type of beating: running as high speed and low oscillation

♥ It-intelligence board: easy to understand with color picture two-way communication



Reed width(cm)

190,210,230,280,340,360,390

Useful reeding width

Same as nominal width maximum reduction 60 cm

Speed(r/min)

500-900

Yarn range(d)



Short yarn: Ne100-Ne2.5

Filament: 56dtex-1350dtex

Drive

PSS programmable to start, push-button operation with both hands

Motor Power

2.7KW, 3.0KW, 3.7KW

Weft selection

2-color mixing, 2 color at-will or 4 colour

Shedding

Electronic Jacquard Loom Machine, 1344 hooks, 2688 hooks,6144 hooks

Let-off

Electronic let off with reverse function

Flange dia

800mm,1000mm

Beating







Crank type beating, multiple sley sword beating

4 links(reed space up to 230cm)

6 links(Reed 280cm and more)

intermediate rocking supporter

Measuring/Storing FDP Free Drum Pooling

Filling supply stand

Floor-mounted for 4 packages(2 colors),Floor-mounted for 8 packages(4 colors)

Selvedge

Planetary gear motion

Waste filling removal Catch cord type (gear type)
Cutter Mechanical cutter
Lubrication Oil bath system for main drive parts, centralized lubrucation(manual grease)

Take up

  Electronic take up


Mechanical take up

Max take up Dia                            400cm
Pick density  6.6-80.5 picks/cm(16.7-204.4 picks/inch)
Length count i-board display with fix meausre stop fuction
Temple Floor-monted
Auto-stop motion Catch yarn Reflective weft feeler(Dingle feeler)
Stop cause indication Message on i-board, 4 color lamp for indicating cause
Others Stop motion for selvage and catch cord yarn



we can manufacture according to customer's requirements
