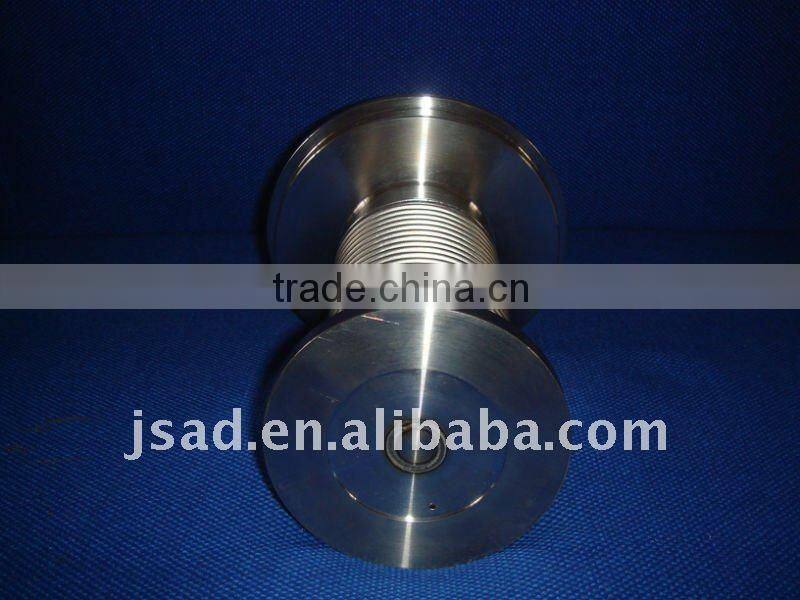

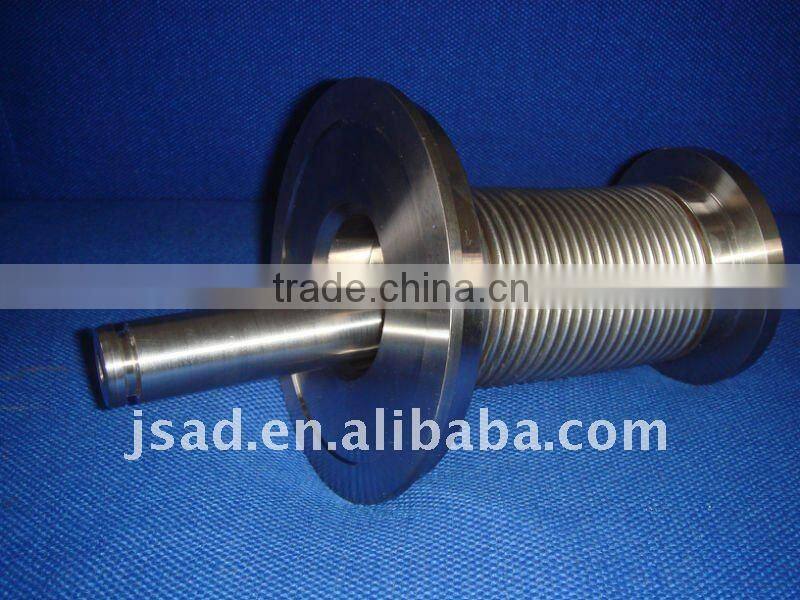

Help CenterSpiral Stainless Steel Bellows Sealed Gate Valve
Related Products
-
High-pressure Stainless Valve Metal BellowsUS$ 1 - 100MOQ: 50 Cartons -
Sensor Stainless Steel Bellows ComponentUS$ 1 - 100MOQ: 100 Cartons
-
Stainless Steel Vacuum Flexible HoseUS$ 1 - 49MOQ: 50 Pieces
-
Large Diameter Stainless Steel Bellows Used for CouplingUS$ 50 - 500MOQ: 50 Cartons
-
BS16 BS25 Bellows for Bellows CouplingsUS$ 50 - 500MOQ: 50 Cartons
Specifications
1,Offer design and molds opening service2,Compensatory function
3,Metal material
4,Hydraulic molding type
Our company is specialized in the production of corrugated metal bellows, the core team has nearly 30 years of bellow design and production experience, its design and craftsmanship take leading position in industry. Now it passed the certification of ISO9001:2008. we have all kinds of specification mold, material available; and we have a strong production capacity, delivery is prompt the company possess the stronger nonstandard design and mechanical capacity, we can produce nonstandard bellows weldment as your requirement.
Detailed product Description
The specific bellow parameters are as followings :( All data is record by electronic digital display caliper)
¤Normally (The scope of product specification )
Material: stainless steel 304, 316L, 321,, etc
Specifications: DN10-DN300
Single wall thickness: 0.09-1.0(Can according to customer special requirement multilayer wall thickness)
Compression ratio: 10%-45 %( pressure: 0.25Mpa-25Mpa)
Temp:-196-450°C
Application display of bellows compensator (Detailed Product Description)
Detailed product Description
specifications |
I.D |
O.D |
Wall thickness |
Compression ratio |
Corrugated distance |
Existing material |
DN10 |
10 |
15 |
0.12 |
45 |
1.8 |
304 |
DN12 |
12 |
20 |
0.12 |
45 |
2 |
304 |
DN14 |
14 |
22 |
0.12 |
45 |
2.2 |
304 and 316L |
DN15 |
15 |
23 |
0.15 |
45 |
2.2 |
316L |
DN16 |
16 |
25 |
0.15 |
45 |
2.3 |
304 |
DN18 |
18 |
28 |
0.12 |
45 |
2.6 |
304 |
0.15 |
316L |
|||||
DN22 |
22 |
32 |
0.15 |
45 |
3 |
304 and 316L |
DN25 |
25 |
38 |
0.15 |
45 |
3 |
304 |
0.13 |
316L |
|||||
DN28 |
28 |
40 |
0.12 |
45 |
3.2 |
304 |
0.15 |
316L |
|||||
DN32 |
32 |
45 |
0.15 |
45 |
3.4 |
304 and 316L |
DN35 |
35 |
50 |
0.15 |
45 |
3.5 |
304 and 316L |
DN38 |
38 |
55 |
0.15 |
45 |
3.8 |
304 and 316L |
DN40 |
40 |
60 |
0.2 |
45 |
3.8 |
304 |
DN42 |
42 |
60 |
0.15 |
45 |
4.4 |
304 |
DN45 |
45 |
65 |
0.15 |
45 |
4.5 |
304 |
DN48 |
48 |
66 |
0.2 |
45 |
4.5 |
316L |
DN50 |
50 |
70 |
0.2 |
45 |
5 |
304 and 316L |
DN60 |
60 |
80 |
0.18 |
45 |
5.5 |
304 |
DN65 |
65 |
89 |
0.3 |
45 |
5.7 |
304 |
0.2 |
316L |
|||||
DN75 |
75 |
100 |
0.3 |
30 |
6 |
304 |
DN80 |
80 |
105 |
0.3 |
30 |
7 |
304 and 316L |
DN90 |
90 |
115 |
0.3 |
30 |
6.5 |
304 |
