High Speed Paint Mixer

High Speed Paint Mixer photo-1
High Speed Paint Mixer photo-2
US$ 1,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Mixer Type:
Homogenizer
Product Type:
Paint
Application:
Liquid with Suspended Solids
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Mixer Type Homogenizer
Product Type Paint
Application Liquid with Suspended Solids
Additional Capabilities Milling
Place of Origin Jiangsu, China
Brand Name JINGDA
Model Number FL
Max. Loading Capacity 5000L
Voltage Customised
Power(W) Customised
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

CE certified
Paint dispersion mixer, paint dispersing mixer

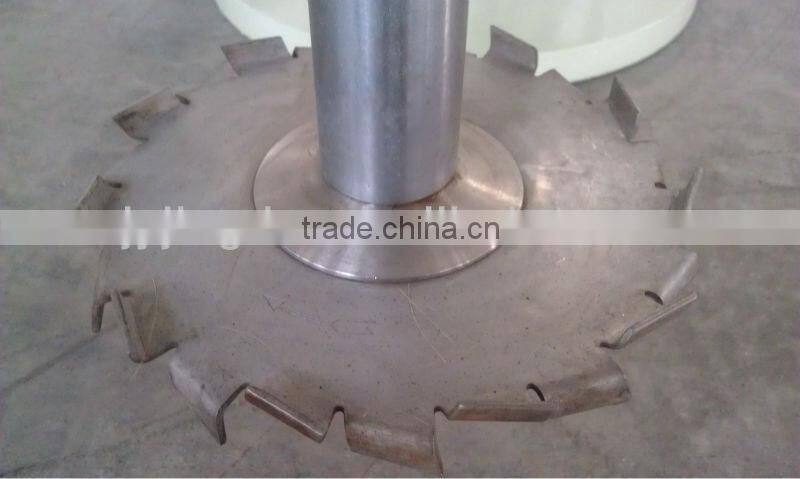

Tooth shape disc
Hydraulic lift
Floor type or platform type


Product Description

It is applicable for agitation, dispersion and dissolution of liquid and liquid-solid materials in such industries as paint, dye, pigment, printing ink, papermaking and adhesive. It characterizes little air absorption when agitating and dispersing, high mixing efficiency and uniformity, high speed dissolution of materials in the case of medium/high speed agitation and dispersion.


Packaging: Wooden case or wooden pallet

Our Services
Customised design of equipment can be provided accoding to user's production process.




FAQ



To make an optimal design for your production, you are kindly asked to inform us of following data:

Formation of materials to process, solid proportion, density and viscosity of materials before mixing



Should the High speed  paint mixer be explosion-proof?

What is the destination seaport?



Model

FL1.5

FL4

FL7.5

FL11

FL22/FX22

FL37/FX37

FL90/FX90

Main motor power(KW)

1.5

4

7.5

11

22

37

90

Dispersing shaft speed (r.p.m)

0-1450

0-1450

0-1450

0-1450

0-1450

0-1200

0-1000

Dispersing blade dia. (mm)

150

200

230

250

350

400

600

Lifting stroke(mm)

600

800

900

900

1200

1200

1600

Pump motor power(KW)

0.55

0.55

0.55

0.55

0.75

0.75

2.2

Tank volume(L)

50

200

300

400-600

600-1000

1000-2000

5000

Weight(Kg)

120

400

700

800

1500

1700

2600

External dimension

A (mm)

1400

1700

1750

1750

2200

2200

2700

B (mm)

940

1300

1800

1800

2100

2100

3000

C (mm)

350

600

830

900

1100

1100

1600

W (mm)

350

540

650

650

900

900

1500

High speed paint mixerHigh speed paint mixer
