Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > DP-88 Clamp-on Split Open Core Insulated Current Transformer 5a

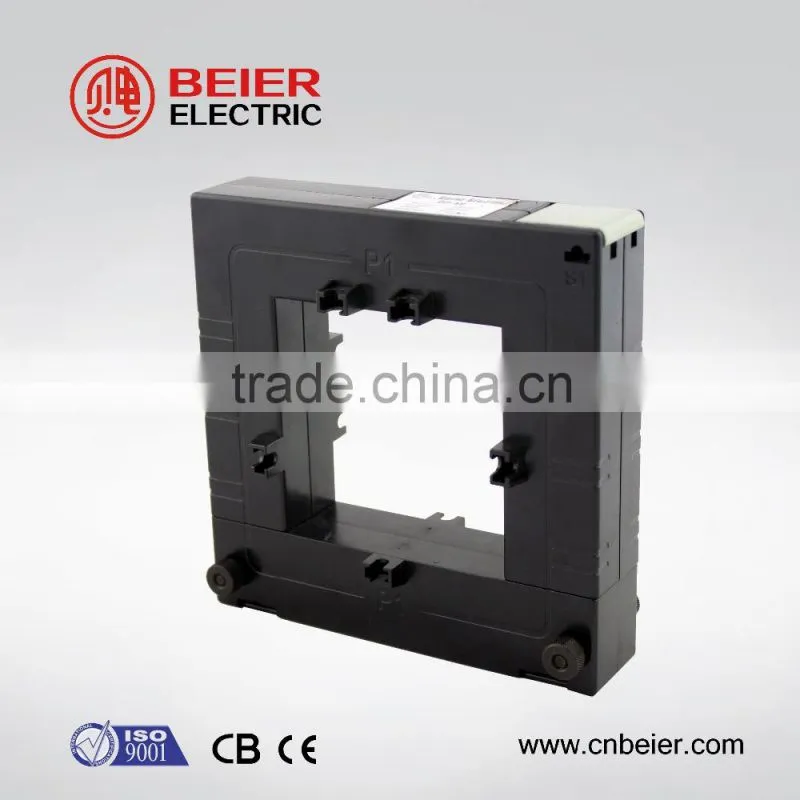

DP-88 Clamp-on Split Open Core Insulated Current Transformer 5a
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Beier
Model Number:
DP 58
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DP-816 5a Output Phase Spilt Core ct Transformer 4000/5aUS$ 2.5 - 12.5MOQ: 100 Pieces -
Dp812 Series Sealed and Busbar Type Split Core ct Transformers 5aUS$ 2.5 - 12.5MOQ: 100 Pieces
-
DP-88 Single Phase ct Current Transformer 1000/5A Copper Split CoreNegotiableMOQ: 10 Pieces
-
DP-58 800/5a One Phase Split Core ac Current Transformer PriceNegotiableMOQ: 10 Pieces
-
DP-23 300/5a Open Type Split Core Clamp ac Current TransformerUS$ 2.3 - 20.3MOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
Beier
Model Number
DP 58
Usage
Instrument
Phase
Single
Coil Structure
Toroidal
Company Information
Product Description
DP-88 clamp-on split open core insulated current transformer 5a
Standard adopted: IEC44-1, BS7626;
Primary current: 100A~5000A;
Secondary current: 1A or 5A;
Rated burden: 1.5VA~30VA;
Accuracy class: 0.5, 1.0 or 3.0 for small current;
Maxi-voltage: 0.72kV/3KV;
Frenquency: 50/60Hz;
Short time thermal current: Ith=100xIn;
Security coefficient: FS<5
Feature
Packaging & Shipping
Advantages
- All the cases are made of polycarbonated materials, not ABS material case,so the temperature endurence is much higher;
- All the cores are made of imported highest quality silicon iron sheet,so the core's magnetic performance is much higher;
- All the parameters are double cross-checked, so the testing results is much ensured!
Certifications
Contact us
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2008
Factory Size
3,000-5,000 square meters
Total Employees
51 - 100 People
