Dp812 Series Sealed and Busbar Type Split Core ct Transformers 5a

Dp812 Series Sealed and Busbar Type Split Core ct Transformers 5a thumbnail-1
Dp812 Series Sealed and Busbar Type Split Core ct Transformers 5a thumbnail-2
Dp812 Series Sealed and Busbar Type Split Core ct Transformers 5a thumbnail-3

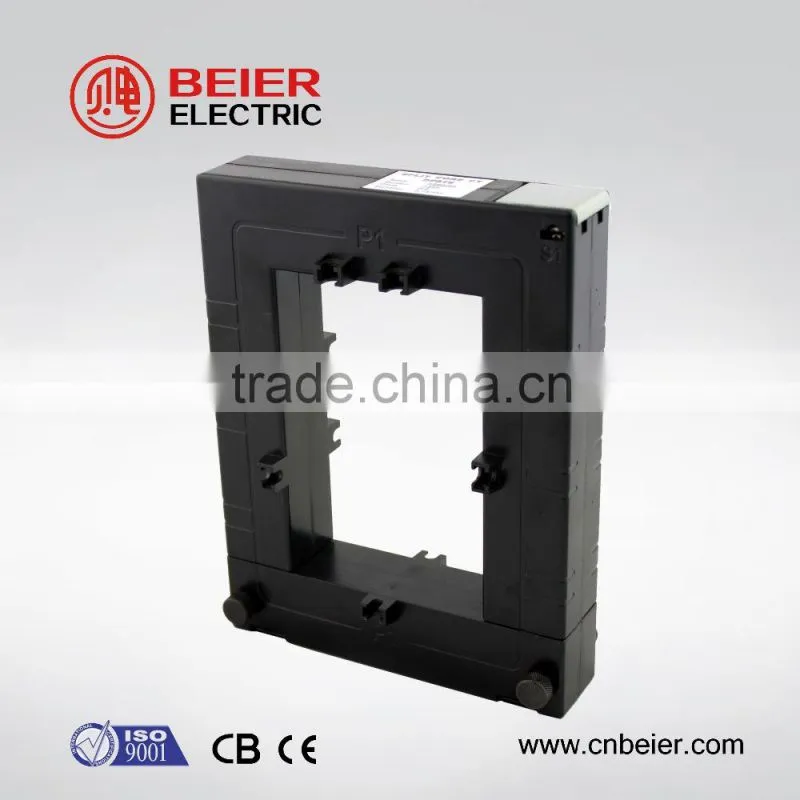

Dp812 Series Sealed and Busbar Type Split Core ct Transformers 5a photo-1

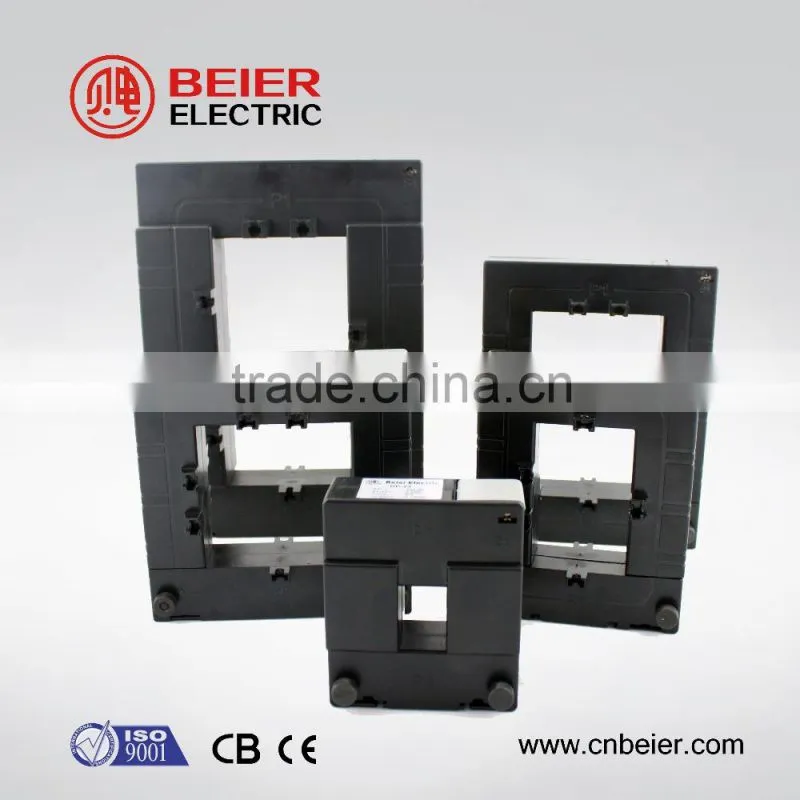

Dp812 Series Sealed and Busbar Type Split Core ct Transformers 5a photo-2

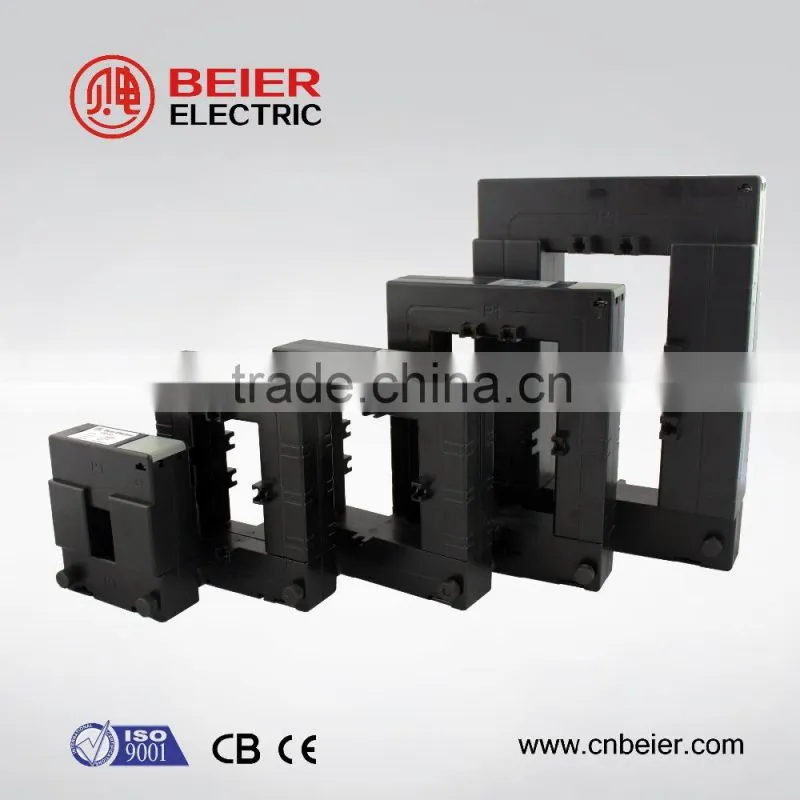

Dp812 Series Sealed and Busbar Type Split Core ct Transformers 5a photo-3
US$ 2.5 - 12.5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Beier
Model Number:
DP-812
Contact Supplier Request Quote Chat Now
Yueqing Beier Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Beier
Model Number DP-812
Usage Instrument
Phase Single
Coil Structure Toroidal
Coil Number Autotransformer
Company Information

dp812 series sealed and busbar type split core ct transformers 5a

Product Description

dp812 series sealed and busbar type split core ct transformers 5a

 1. Standard: IEC44-1, BS3938, DIN42600, GB1208-2006;

2. Primary current: 500-1500A;

3. Secondary current:  5A;

4. Accuracy class: 0.5,1.0,3.0(Class0.2 or class0.2S can be tailor made!)

5. Cases are made of ABS, meet UL-94V0;

6. Short -time thermal current: Ith=60x1h;

7. Security factor: FS less than 5



dp812 series sealed and busbar type split core ct transformers 5a



dp812 series sealed and busbar type split core ct transformers 5a



dp812 series sealed and busbar type split core ct transformers 5a

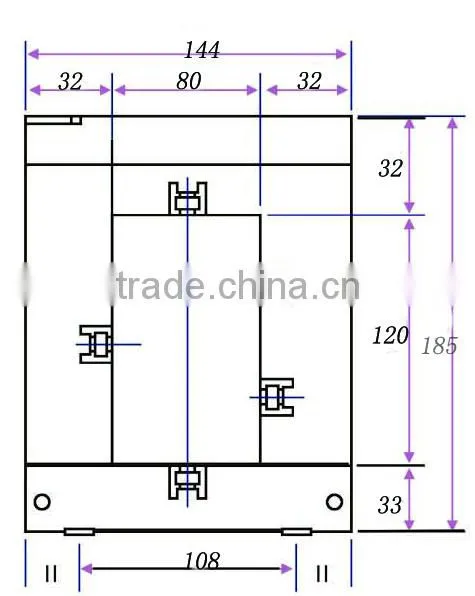

Specification



dp812 series sealed and busbar type split core ct transformers 5adp812 series sealed and busbar type split core ct transformers 5adp812 series sealed and busbar type split core ct transformers 5a

 dp812 series sealed and busbar type split core ct transformers 5a



Packaging & Shipping

 dp812 series sealed and busbar type split core ct transformers 5a

Advantages



  • All the cases are made of polycarbonated materials, not ABS    material case,so the temperature endurence is much higher;



  • All the cores are made of imported highest quality silicon iron sheet,so the core's magnetic performance is much higher;



  • All the parameters are double cross-checked, so the testing results is much ensured!
Certifications

 dp812 series sealed and busbar type split core ct transformers 5adp812 series sealed and busbar type split core ct transformers 5a
