China best veterinary sperm quality analyzer with cheap price 6800T

China best veterinary sperm quality analyzer with cheap price 6800T

Brief introduction:

Animal sperm comprehensive and intuitive image data, test data-rich, comprehensive data semen analysis, excellent operating performance.
Intuitive, clear, beautifully printed reports designed to make diagnostic results at a glance.

Main function:

Curvilinear motion, linear motion, the average path;
Sperm velocity classification statistics to live before a Class A rapid rate, slow to live before the b-class rate, c-class movement rate to non-pre-, d-level slow;
The main test items: other component of animal sperm, mixing abnormal sperm count, abnormal sperm count, abnormal sperm, sperm appearance;
Allowable number of sample collection (a) 1-2000 (or more), the detection rate range (um / s) 0-200;
Capture several images (frames) 0-75, resolution particle diameter (um) 1-10;
Analysis of the acquisition time (sec) 1-5 or more (the size of the computer memory), the number of groups of image acquisition (group) 100.

Vitality (Motility) analysis:

Analysis can save images to facilitate the future; sperm can quickly generate accurate illustrations,
precise analysis of kinetic parameters of the trajectory of a single sperm and sperm motility;
VAP: average rate;
VCL: track speed;
VSL: straight rate
ALH: Head swing frequency;
BCF: Flogging frequency;
LIN: linear (VSL / VCL);
STR: straight Index;
WOB: Vibration Index.

Concentration analysis:
According to WHO standard, it can be detect sperm concentration automatically, quickly and accurately;
Sperm per milliliter concentration and overall density (M / ML);
Total static number of sperm (Type D);
Forward movement of sperm count (Type A + B);
The total number of sperm movement (Type A + B + C);

Morphology analysis:

In the monochromatic mode, identification swimming sperm head deformities, central, for analysis of the individual,
and to provide a basis and parameters for quantitative analysis of sperm morphology;
Spherical normal;
Head size (area, perimeter, length, width);
Middle size (area width);
Central embedding (distances, angles);
Normal tail.

Software features:

Windows XP, Chinese-English change interface.
Medical dedicated capture card supports a single field, single frame, continuous field, collecting a continuous frame.
The software has a high resolution image capture, image processing, interface driver software automatically sperm static and dynamic analysis of statistical software, sperm deformity analysis and other components of semen analysis software, capable of visual analysis, diverse query, modify, statistics, store and print test reporting and other functions.

Standard Configuration:

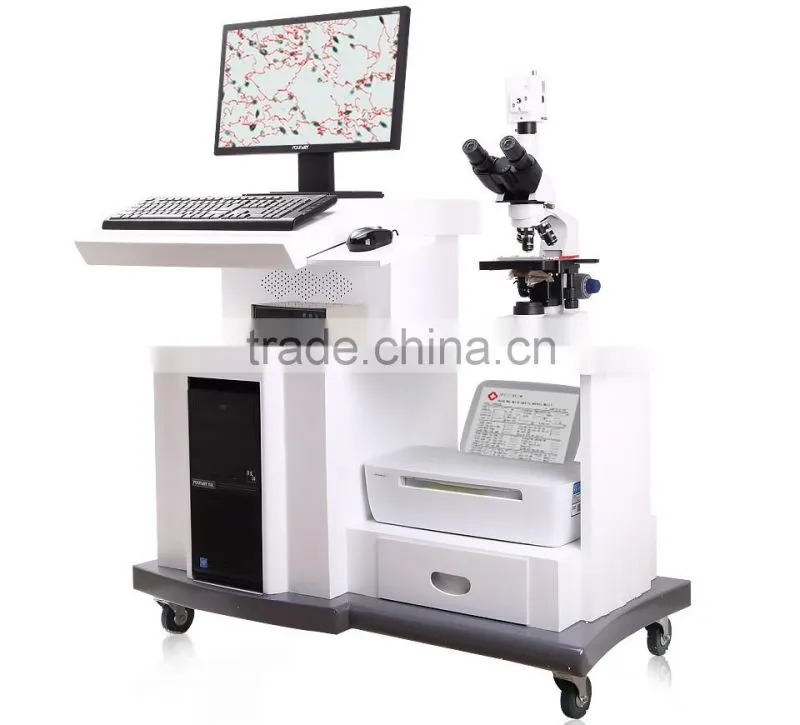

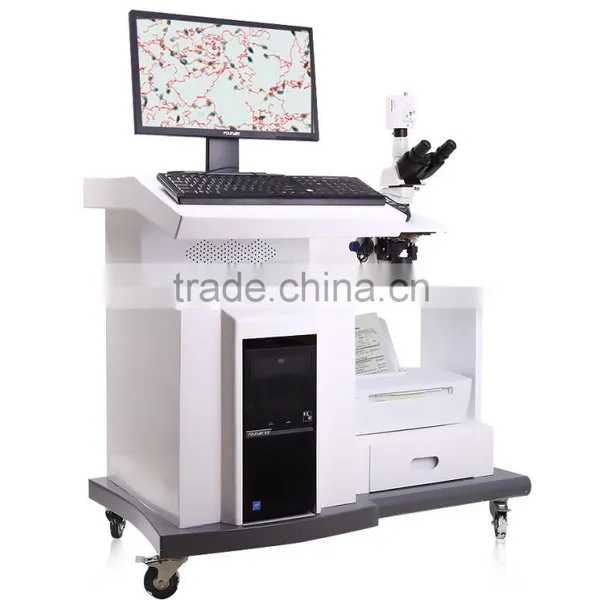

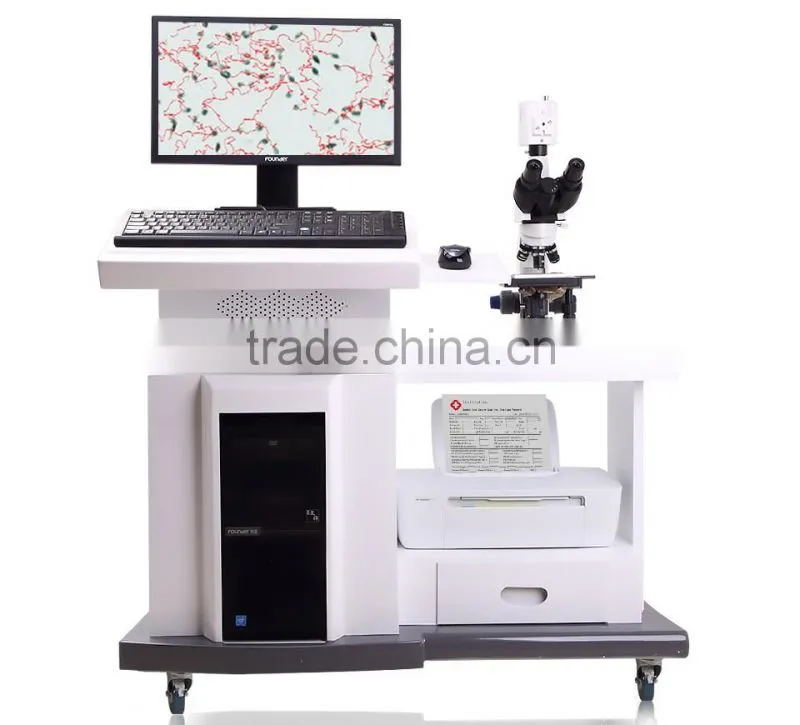

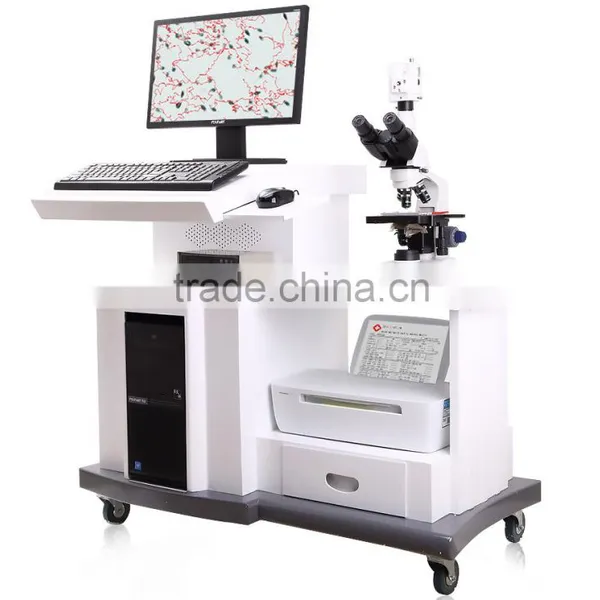

. Main Unit with 19" LCD Display: 1set
. JVC Camera (from Japan): 1set:

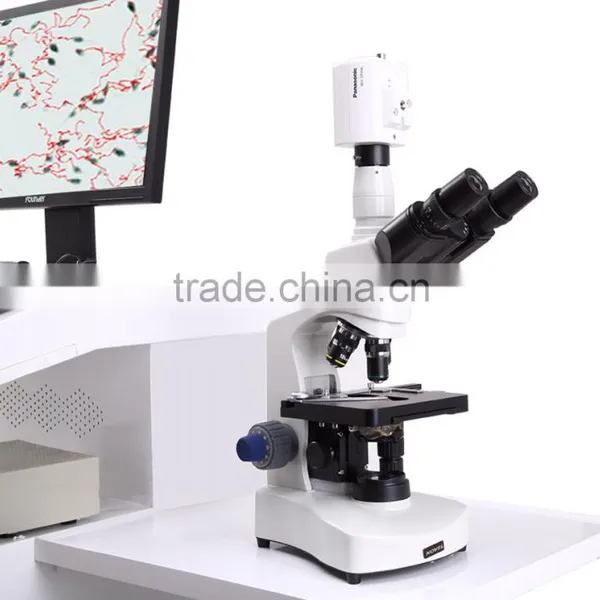

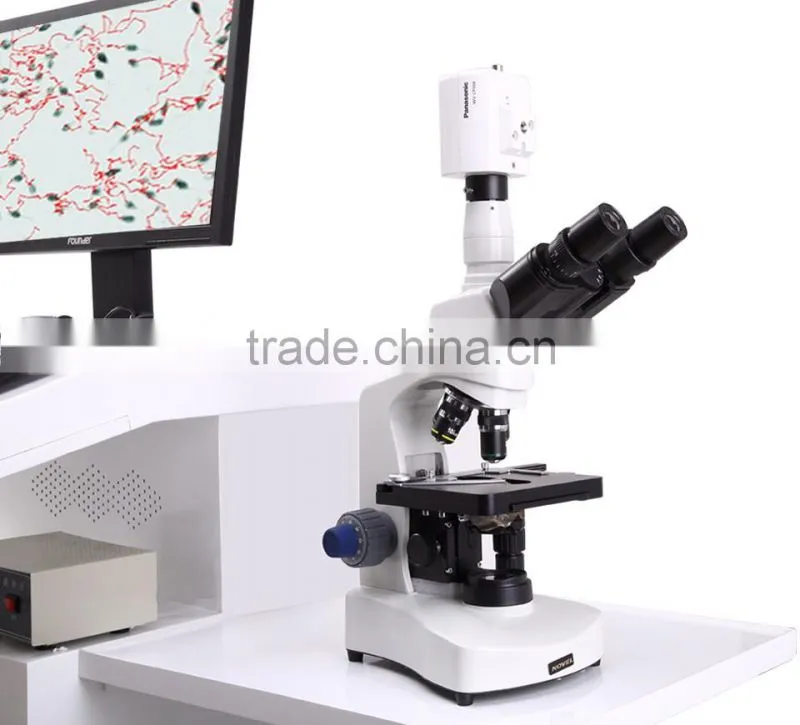

. NOVA Binocular Microscope: 1set
. Microscope Analysis Software: 1pc
. Counting Plate: 1pc
. Video Acquisition card: 1pc
. CANON Color Jet Printer: 1set
. ABS Trolley: 1set
. Sperm Thermostat: 1set
. Microscope Slide: 1set
. User Manual: 1pc
