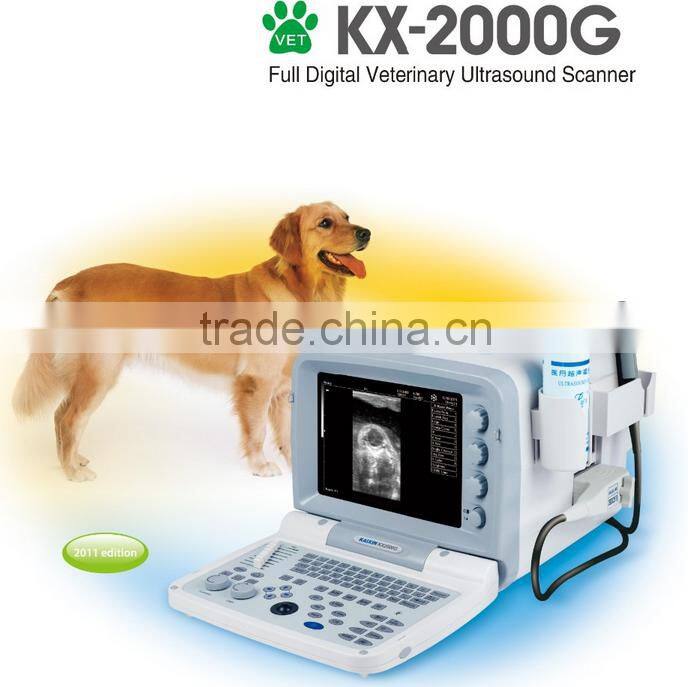

Full Digital B mode Ultrasound Diagnostic Instrument
Rectal array probe Vet/Veterinary Ultrasound Machine /cheap vet ultrasound
Full Digital B mode portable pregnancy ultrasound scanner Diagnostic Instrument
Ultrasound machine Parameter
Adopt ARM7 Embedded Control Systems , FPGA signal processing system and specially selected ultrasonic hardware system, making the machine more reliable.
10 inch high resolution CRT monitor, line by line scanning without sparkle.
lMenu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese.
Double probe sockets, automatically identify the probe, support several optional probes.
Body mark: 64 pcs of body marks with probe position.
Display mode:B,2B,4B ,B/M,M, total 5 kinds.
10 grades depth adjustment, maximum display depth is 236mm.
| Gain range | 0~127dB |
| Dynamic range | 27~90dB |
| Gray | 256 |
| Intelligent TGC control | 8 grades. |
| Frame frequency | 30 frames /second |
| Pseudo-color | 8 kinds (incl. B/W). |
| Image storage | main unit Disk C 32 MB capacity, 100 frames permanent image storage, without loss when power off. |
| Cineloop | 256 frames. |
| Power supply | AC110/230-15% ~ + 10% (self-adaption supply voltage) 60/50 hz ± 1 hz |
| Net weight | 12kg |
| Main unit size | 387 x 319 x 270 mm (length x width x height. |
| Mainunit | 1pc |
Puncture guiding function,( 2 guiding lines, angel and position adjustable)
Equipped with lithotripsy software, realize real-time positioning measurement.
General measurement:distance,perimeter, area, volume, angle, length and area stenosis ratio measurement.
Obstetric measurement and analysis: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report.
Gynecology measurement and analysis: gynecology general measurement and gynecology report.
Urology measurement and analysis: residual urine volume, prostate volume, and urology report .
Two USB ports support large capacity USB disk (support document management/software upgrades/one-key storage), and color laser printer directly print various image and reports.
Dual-mode TV output:PAL/NTSC, connecting to thermal printer and ultrasonic working station.
Optional configuration:

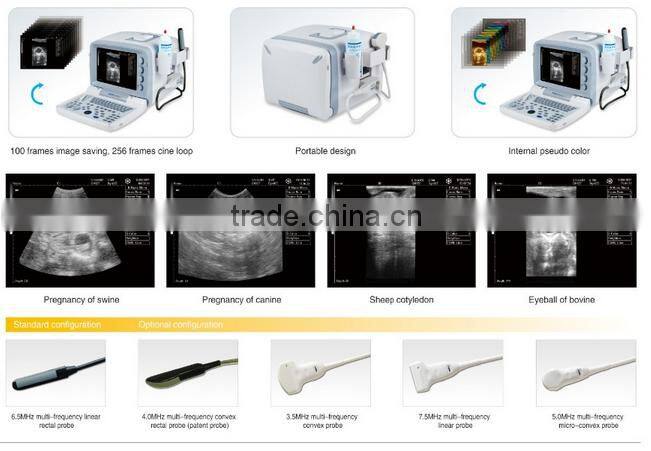

6.5MHz multi-frequency trans-vaginal probe
7.5MHz multi-frequency linear probe
5.0MHz multi-frequency micro-convex probe
Trolley
Thermal printer (P93W-S)
Color laser printer (Specified model:HP Color LaserJet CP1515n,HP Color LaserJet CP1525n)
Color LCD monitor.
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
