Portable cheap veterinary ultrasound machine/ dog pig sheep cow horse pregnancy ultrasound ultrasound
Applications:
Ovine, Bovine, Equine, Swine, Alpaca, Feline, Canine, Rabbit, Fish, Snake and etc.
Brief introduction:
This equipment is high resolution linear/convex ultrasound scanning diagnostic equipment. It adopts micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving focusing (DRF), Digital frequency Scan (DFS), frame correlation technologies to endue its image with clarity, stability and high resolution.
Specifications:
Detect Depth(mm): ≥140
Blind zone(mm): ≤3
Monitor size: 5 inch
Display mode: B, B+B, B+M, M, 4B
Image gray scale: 256
Image storage: 128
Cine loop: ≥400 frame
Scan depth: 120mm-220mm
Image flip: up/down, left/right
Focus position: Adjustable
Posture mark: 15
Image process: Histogram, color encode, gama, image smooth
Probe frequency: Adjustable ( 3 point each probe )
| Net weight | 700g |
| Machine size | 230mm(L)x120mm(W)x38mm(H) |
| Battery | 2600mAh, continuous work: ≥3 hours |
| Adapter rating | 100-240V~, 50-60Hz, 70VA |
| Charging method | adapter, battery |

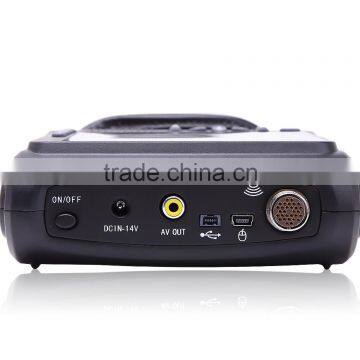

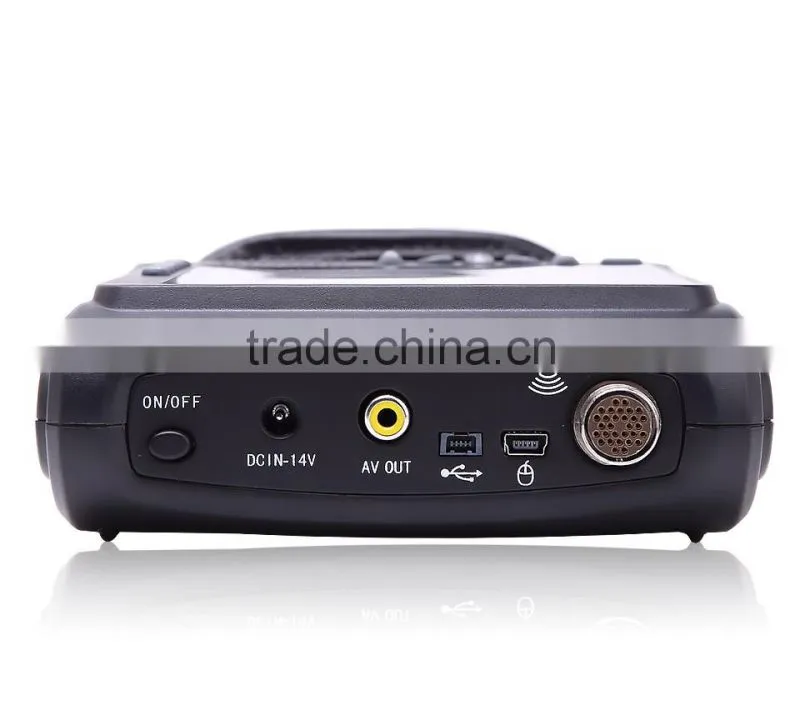

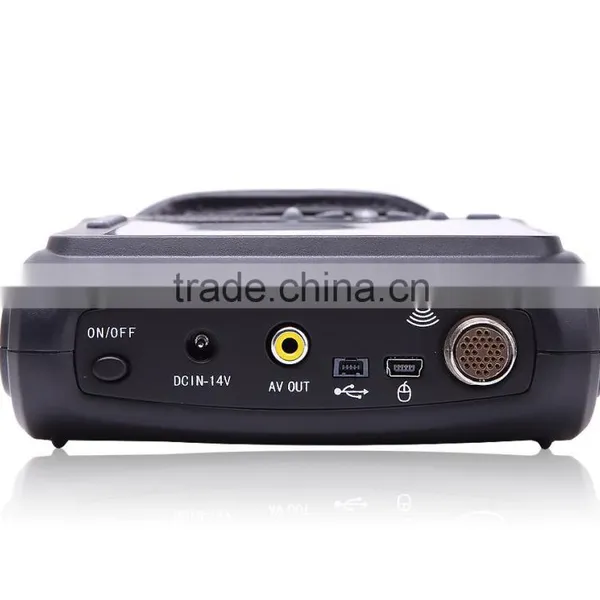

| Output | USB2.0, VIDEO( PALD, NTSC) |
| Output report | regular |
| Notation | date, time, name, sex, age, full screen words edit and etc. |
| Measurement | distance, circumference, heart rate, EDD, area, volume, GA and etc. |
| Frame correction | Adjustable |
Standard Configuration:
Scanner Body: 1pc
Li-ion Battery: 1pc
3.5MHz Convex Probe: 1pc
Charger with a Set of Wires: 1set
Wrap Bag: 1pc
CD: 1pc
Bottle of USG gel: 1pc

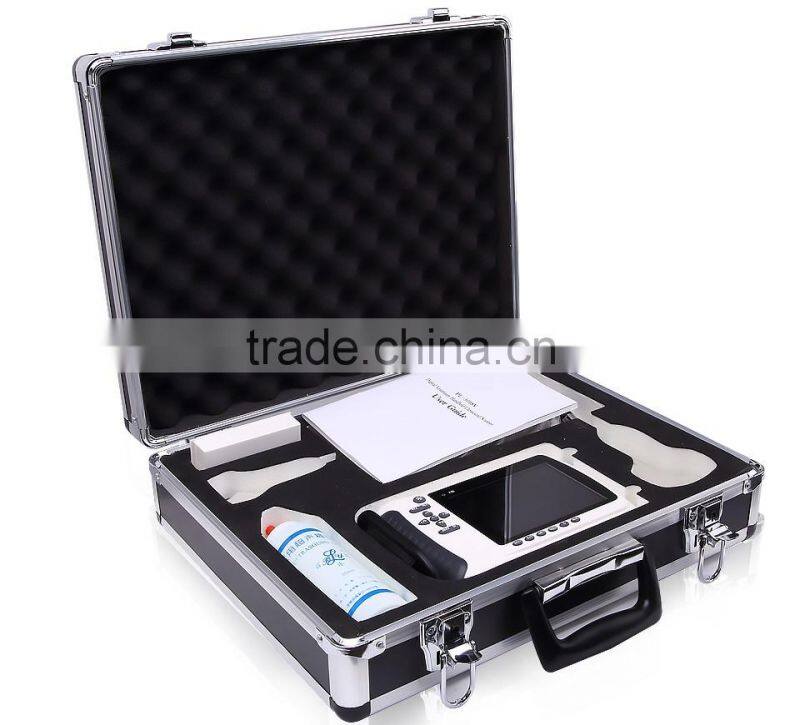

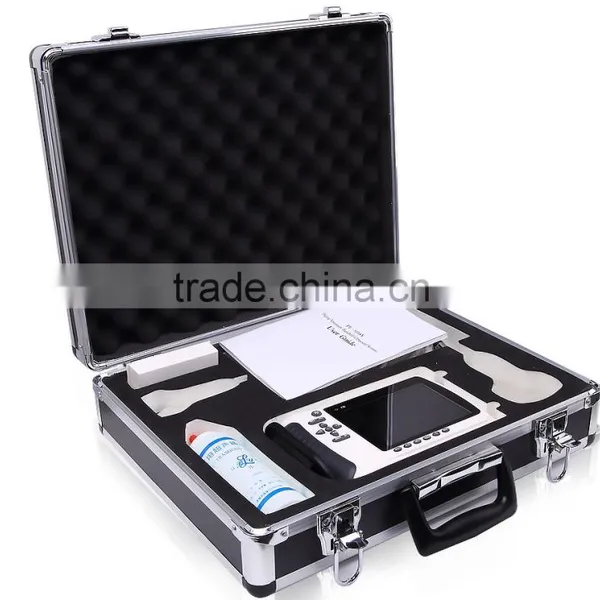

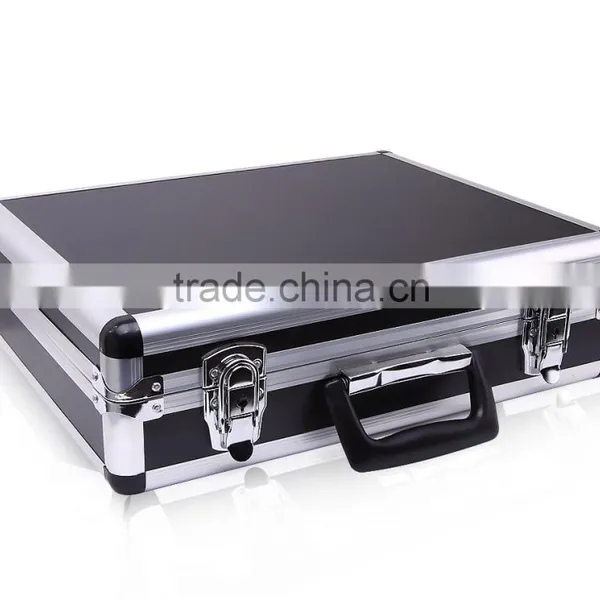

Transportation Case: 1pc
User Manual: 1pc
Optional:
5.0MHz Micro-convex Probe
6.5MHz Rectal Probe
7.5MHz Linear Probe
Video Printer
Li-ion Battery
Car Charger
Charging Adaptation Wire(containing power cord)
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
