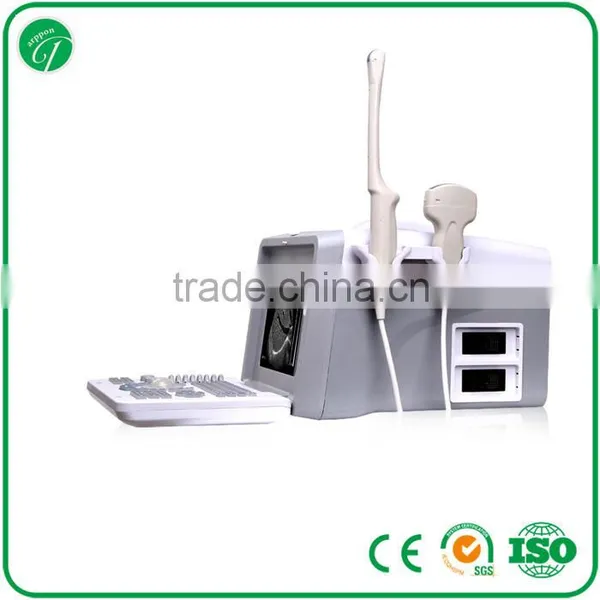

Hospital professional portable B Mode Ultrasound scanner equipped 3.5Mhz convex probe
Brief introduction:
This machine is using the 3.5MHz convex probe, the digital beam forming (DBF), real-time dynamic aperture imaging (RDA), real-time dynamic sound velocity apodization (DRA), real-time dynamic launch Pixel Focus (DTR), real-time dynamic receiving focusing point by point (DRF), CNC dynamic frequency sweep (DFS), 8-segment digital TGC, dynamic digital filtering, image enhancement, line correlation, frame correlation, point correlation, linear interpolation and other kinds of image processing.
Standard configurations:
v Main unit
v 3.5Mhz convex probe
v All accessories
Optional
v 7.5Mhz linear probe
v 6.5Mhz trans-vaginal probe
v MITSUBISHI P93 thermal video printer
Specifications
| Monitor size | 10 inch SVGA high resolution monitor; |
| Display mode | B; B+B; B+M; M; |
| Image magnification | ×0.8, ×1.0,×1.2,×1.5,×2.0; |
| Image grey | 256; |
| Dynamic range | 0-120DB; |
| Image permanent storage | 128; |
| Cine loop | ≥256 frames |
| Scan depth | ≥220mm |
| Image flip | Up/down, left/right, black/white |
| Focus position: | Dynamic digital electronic focus point by point |
| Posture mark | 64, with probe position.; |
| Puncture guide | B-mode image having a puncture guide linedisplay; |
| Gain Control | 8-segment TGC, respectively, total gain is adjustable; |
| Image process | Histogram, image smooth, pseudo-color, gamma correction; |
| Probe frequency | Adjustable; |
| Notation | Date, time, name, sex, age, full screen words edit and etc; |
| N.W | 7kg (including probe). |
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
