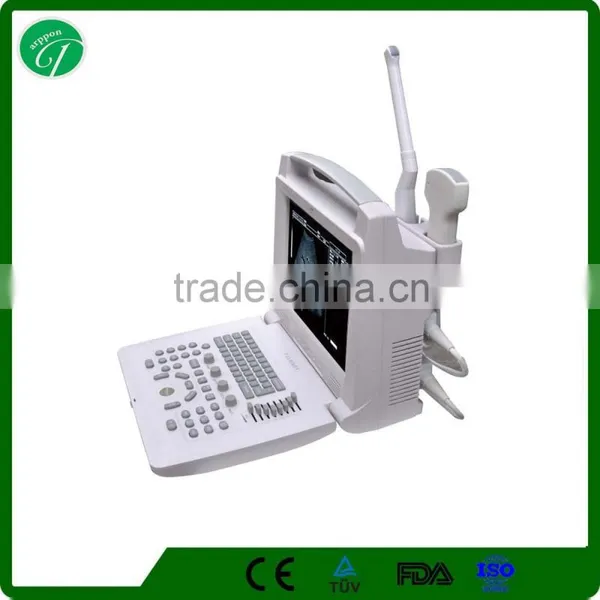

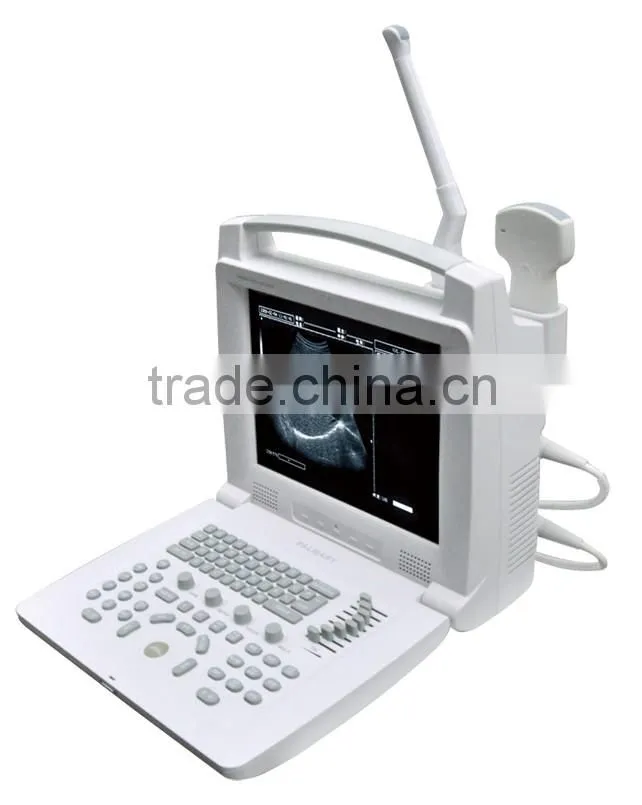

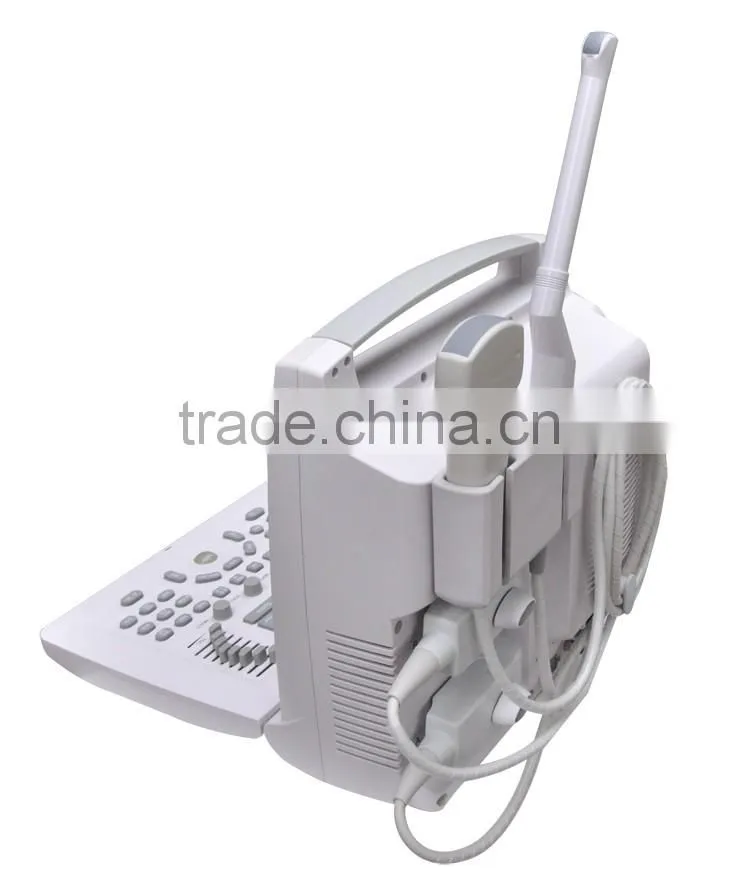

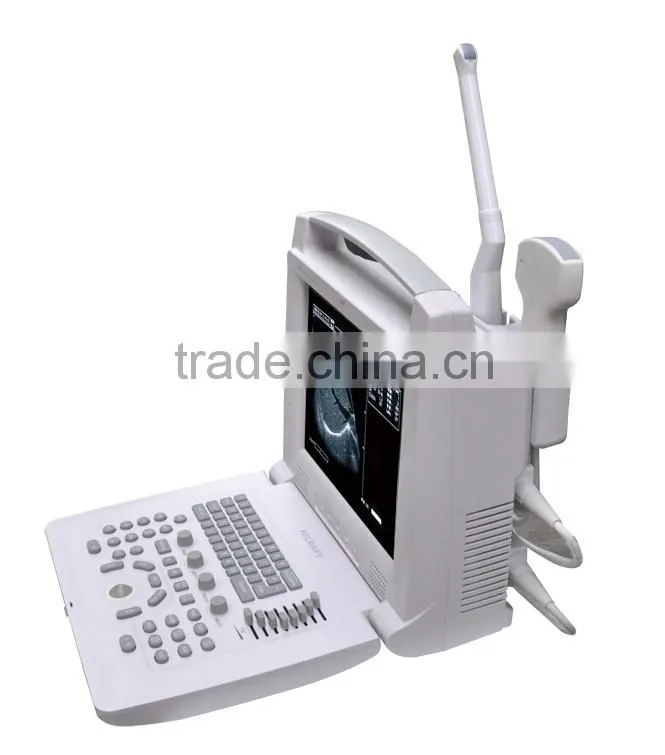

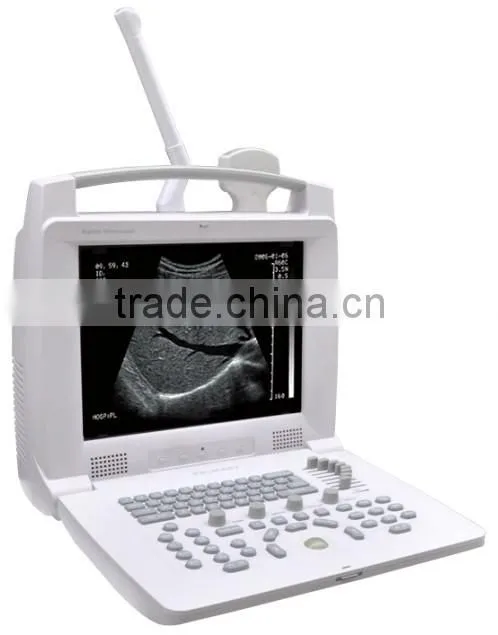

imported 12 " LCD Handled USB B Ultrasound machine in white color
Features:
USB For real-time picture uploading to PC
2 USB ports
2- probe connectors
Monitor: imported 12 " LCD
Probe elements : 96
Power Supply: AV220V±22V, 50MHz±1MHz;
Chinese-English inter-conversion;
Standard configurations:
Main unit
3.5Mhz convex probe
All accessories
Optional:
5.0Mhz micro-convex probe
6.5Mhz trans-vaginal probe
7.5Mhz linear probe
MITSUBISHI thermal video printer
SONYUP-897MD thermal video printer
Trolley
Probes:
3.5MHz Convex Probe (2.5-3.5-5.0MHz )
Applications: Abdominal, Obstetrics, Gynecology, Regional nerve block, Procedure and Biopsy guidance.
5.0MHz Micro –convex (4.5-5.0-5.5 MHz)
Applications: Cardiac, abdominal, obstetrics.
6.5MHz Trans-vaginal (5.5-6.5 -7.5 MHz)
Applications: Uterus, adnexa and etc.
7.5 MHz Linear Probe
Applications: eyeball, testicle, breast, small parts, nerve, vascular, venous access musculoskeletal, etc.
Specifications:
| Standard probe | 3.5MHz Convex Probe; |
| Scanning Depth | 240mm Max(depend on the probe types) |
| Frequency | 2.5MHz -8.5MHz (Depend on the probe types) |
| Connectors | 2 |
| Blind zone: | ≤5mm; |
| Display modes | B; B+B; B+M; M;4B |
| Gray Scale | 256; |
| Cine-loop | 809; |
| Image storage | 32 frames; |
| Resolution | lateral≤ 2mm; axial≤1mm; |
| Image reverse | up/down; left/right; black/white; |
| Dynamic range | 100dB-130dB |
| Measurement | distance; circumference; area; heart rate; |
| Annotation | time; date; ID; age; sex; detecting depth; |
| STC | 8 slides for Near, Far and Overall gain control. |
| Body marks | ≥40 types with probe position; |
| Video output | PAL-D , VGA |
| Monitor | 12 " LCD high resolution monitor |
| Power Supply | 100V~130V/220V~240V, 50/60H |
| Net Weight | 6kg (including probe) |
| Dimensions(mm) | 410Χ320Χ410 |
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
