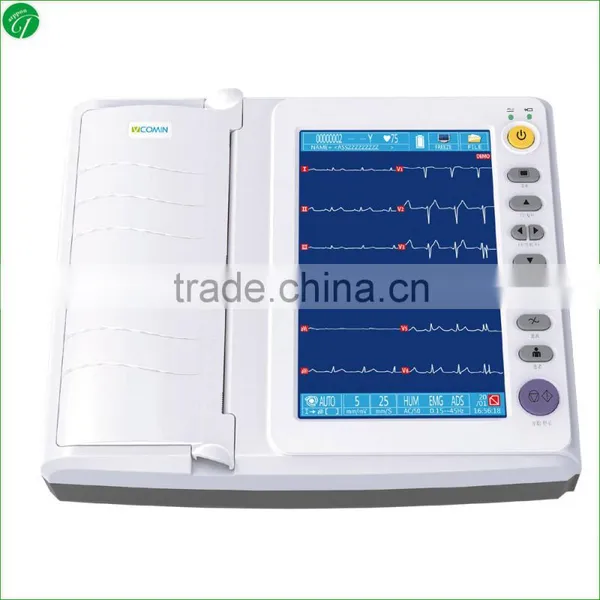

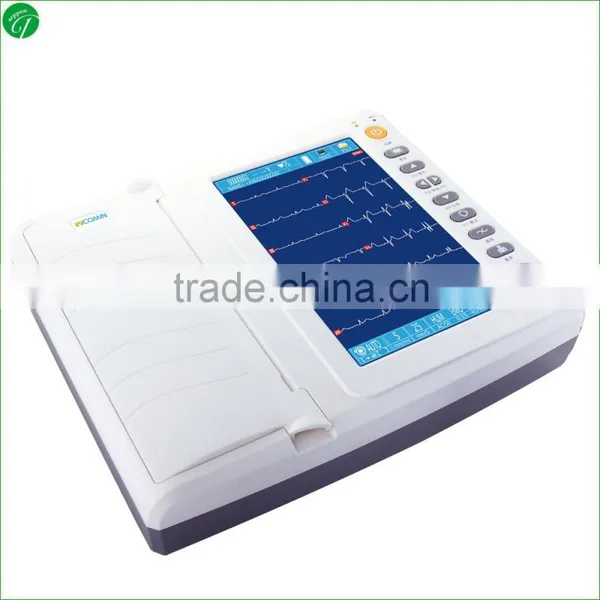

12 leads/channel medical equipment Digital ECG machine
Product Introduction
Model: S-8122
Name: Electrocardiograph
1. Features
Portable 12 channel ECG machine
Work modes: Manual/Auto/Arrhythmia analysis modes
10 inch colour touch LCD
Alphabetic keyboard for patient information
Built in rechargeable Li-ion battery
Adaptor 110-230V, 50/60Hz AC power supply
Real-time ECG waveform, 250 patients save/replay
Built in USB/RS232 interface(ECGNET software Optional)
2. Technical Specification
| Input dynamic range | ±10Vpp |
| Time constant | ≥3.2s |
| Paper speed | 6.25,12.5, 25,50mm/s(±3%) |
| Sensitivity valve | ≤20μV |
| Noise level | <15μVp-p |
| Patient current leakage | <10μA |
| Frequency response | 0.05~160Hz(-3db) |
| Inter-channel interference | ≤0.5mm |
| Voltage tolerance | ≥±500mV |
| Calibrating voltage | 1mV±2% |
Filter:
AC flter: 50Hz / 60Hz
EMG filter: 25Hz / 45Hz
Anti-drift filter: 0.15Hz(Adaptive)
Sensitivity: 5,10,20mm/mV
CMMR: ≥120dB (with AC filter
Input impedance: ≥50MΩ
Input circuit current:≤0.05μA
Work mode: MAN,AUTO,ANALYSIS modes
Lead acquisition12bit/1000Hz(synchronously 12 leads)
Input circuit: floating; protection circuit against defibrillator effect
3. Standard Configuration
Patient cable 1 set
Limb electrode 4 sets
Chest electrodes 6 sets
Grounding cable 1 set
Paper axis 1 set
Thermal paper 1 set
Fuse 2 sets
3-cord power cord 1 set
AC Adaptor 1 set
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
