Home > Products > ECG machine > 3 channel portable ecg heart rate machine

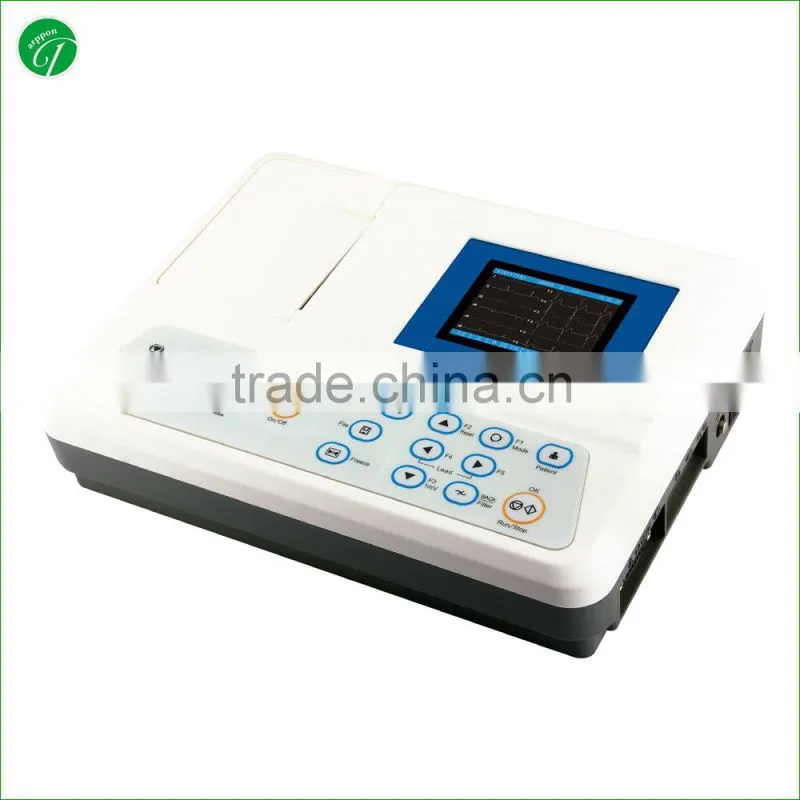

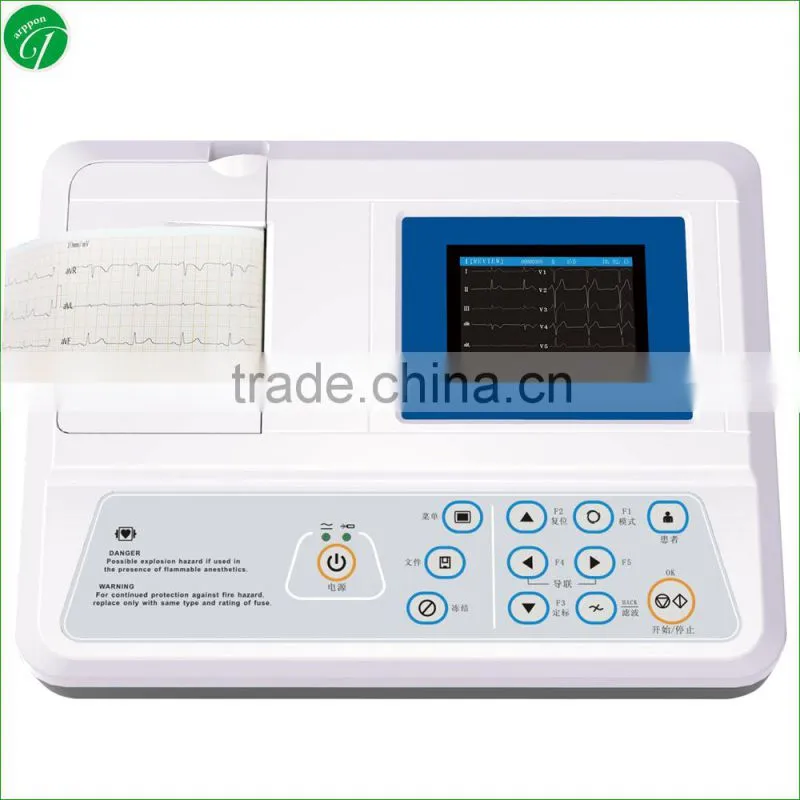

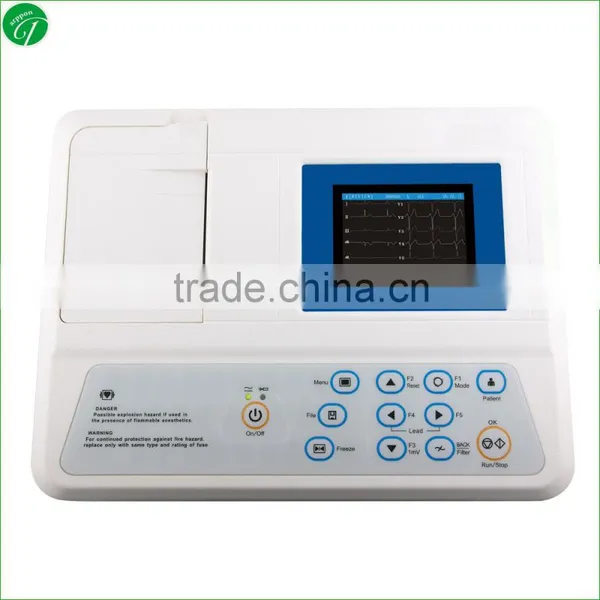

3 channel portable ecg heart rate machine
- 1000 Unit / Units per Month
- Wuhan
- T/T L/C D/P D/A Credit Card PayPal
- Daxin New Muti-fuction Baby TE-79Infrared thermometer
- daxin Infrared Ear Thermometer TE-82 Infrared thermometer
- TE-105 Universal Smartphone Forehead Mini Thermometer
- TE-101 Wall mounted Forehead thermometer
- KS-727 Folding Kitchen scale
- TE-66 Infrared thermometer Factory direct sales can be customized in bulk
Product Details
Type: | Pathological Analysis Equipments | Brand Name: | Darppon | Place of Origin: | Hubei, China |
Model Number: | E8031 |
Product Description
3 channel portable ecg heart rate machine
1. ECG machine Features
• 3 channel ECG machine with interpretation
• Manual/Auto/Arrhythmia Analysis Modes
• 80mm 3-ch recording with rhythm lead
• Built in rechargeable Li-ion battery
• Adaptor 110-230V, 50/60Hz AC power supply
• Built in USB/RS232 interface(ECGNET software Optional)
2. ECG machine Technical Specification
Lead:standard 12 leads
Calibrating voltage: 1mV±2%
Voltage tolerance: ≥±500mV
Time constant: ≥3.2s
Frequency response: 0.05~160Hz(-3db)
Noise level: <15μVp-p
Sensitivity valve: ≤20μV
Sensitivity: 2.5, 5, 10, 20mm/mV
Inter-channel Interference: ≤0.5mm
Paper speed: 6.25, 12.5, 25, 50mm/s(±3%)
Input dynamic range:±10Vpp
Filter:
AC Filter : 50Hz / 60Hz
EMG Filter : 25Hz / 45Hz
Anti-Drift Filter : 0.15Hz (Adaptive)
CMMR: ≥120dB (with AC filter)
Input Impedance: ≥50MΩ
Inputcircuitcurrent: ≤0.05μA
Patient current leakage: <10μA
Lead acquisition: 12bit/1000Hz(synchronously 12 leads)
Work modes: MAN,AUTO,ANALYSIS modes
Input circuit: floating; protection circuit against defibrillatoreffect
Display:3.5 inch colour LCD
ECG waveform,100patient save/replay
3. Standard Configuration
Patient cable 1 set
Limb electrode 4 sets
Chest electrodes 6 sets
Grounding cable 1 set
Paper axis 1 set
Thermal paper 1 set
Fuse 2 sets
3-cord power cord 1 set
AC Adaptor 1 set
