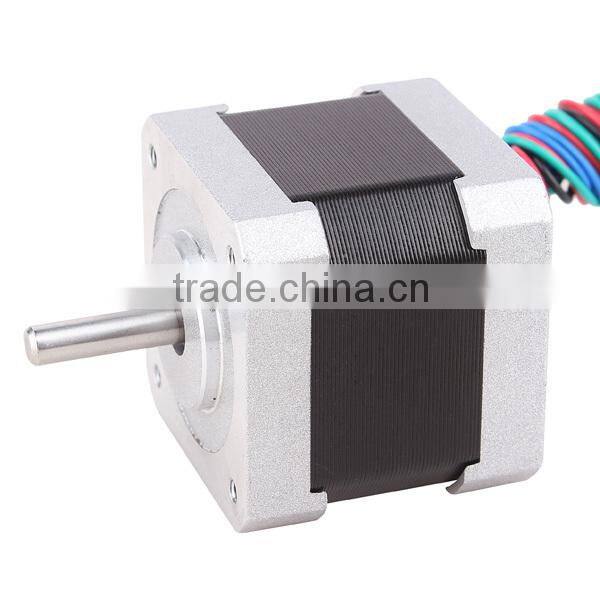

Help Center42mm Nema 17 Stepper Motor With Brake From China and Cheap
Related Products
-
Cheap Nema 34 2 Phase Hybrid Geared Liner Stepper MotorUS$ 5 - 30MOQ: 1 Piece -
CNC Grinding Machines High Quality Liner Stepper Motor Nema 23 Anti-loose ScrewsUS$ 5 - 30MOQ: 1 Piece
-
Liner Stepper Motor for Stage Lighting Embroidery Computerized Flat Kitting MachinesUS$ 5 - 30MOQ: 1 Piece
-
1.8 Step Angle Liner Stepper MotorUS$ 5 - 30MOQ: 1 Piece
-
Thread Rod or Lead Screw Nema 23 Non-captive Liner Stepper MotorUS$ 5 - 30MOQ: 1 Piece
Specification
| Item | Specifications |
| Stepper motor | 1.8 degree |
| Temperature Rise | 80℃ Max |
| Ambient Temperature | -20℃max~+50℃ |
| Insulation Resisitance | 100M Ω Min,500VDC |
| Dielectric Strength | 500VAC for 1Minute |
| Shaft Radial Play | 0.02 Max(450g-load) |
| Shaft Axial Play | 0.08Max(450g-load) |
| Max.Radial Force | 28N(20mm from the flange) |
| Max.Axial Force | 10N |

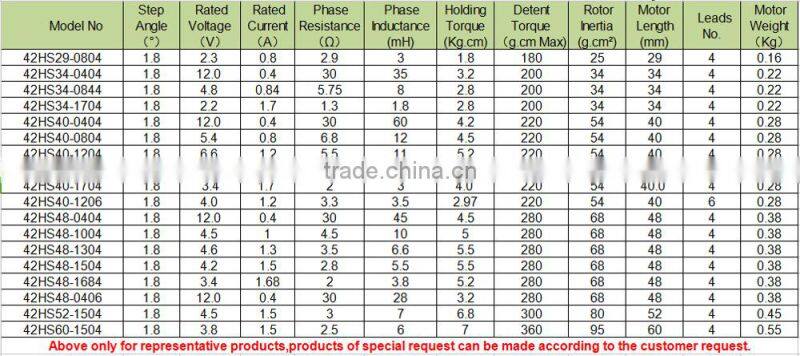

Electrical Specification

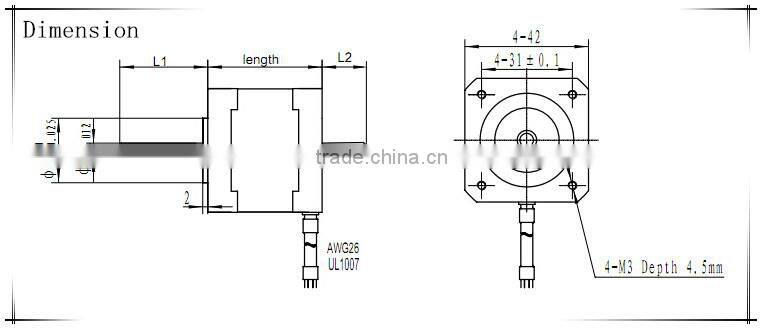

Demision

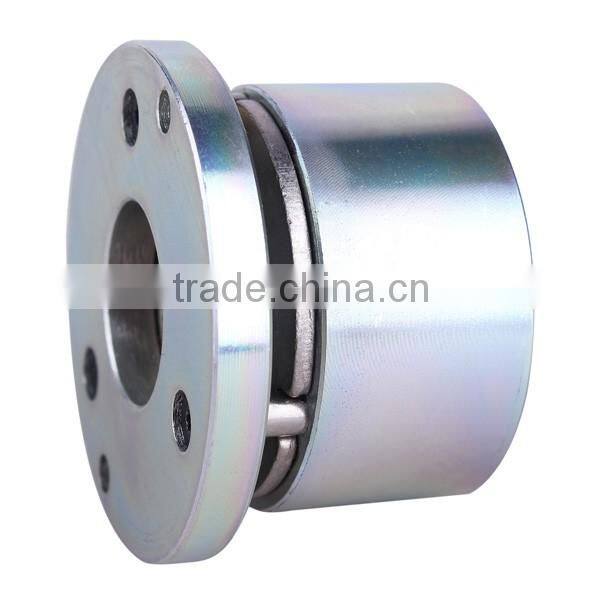

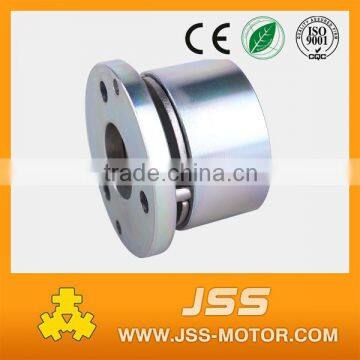

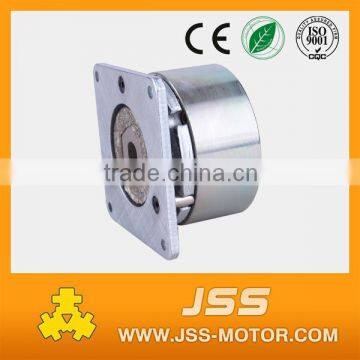

Break Specification
| Break Model | Input Voltage | Piower | Diameter | Brake Length | Brake Torque | Applicable Motor | Weight |
| 35 | 24V | 5.8W | 40MM | 26MM | 0.35N.M | 42HSB | 0.15kG |
| 50 | 24V | 4.8W | 50MM | 31.5MM | 1.5N.m | 57HSB | 0.33KG |
| 56 | 24V | 9.3W | 61MM | 37.5MM | 3.9N.m | 86HSB | 0.506KG |
Certificate
our Services
- CNC machine, Printing machine
- Packing machine, Conveying machine
- Food processing machine, Lawn mower
- Textile machine, Electronic equipment
- Factory automation, Industry control
-
Industry automation, Motion control
Factory
Team
Environment
1.Q:Can I get some samples?
A:We are honored to offer you samples for quality check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
