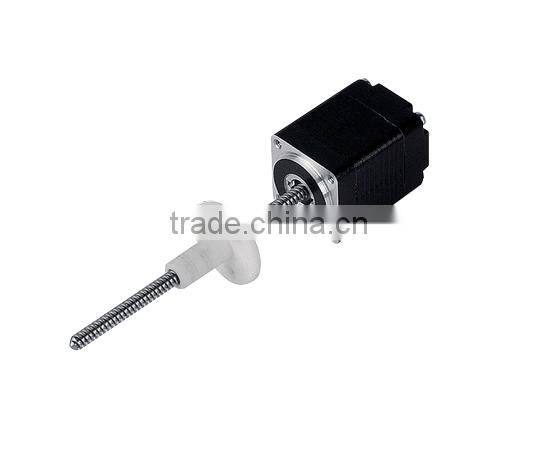

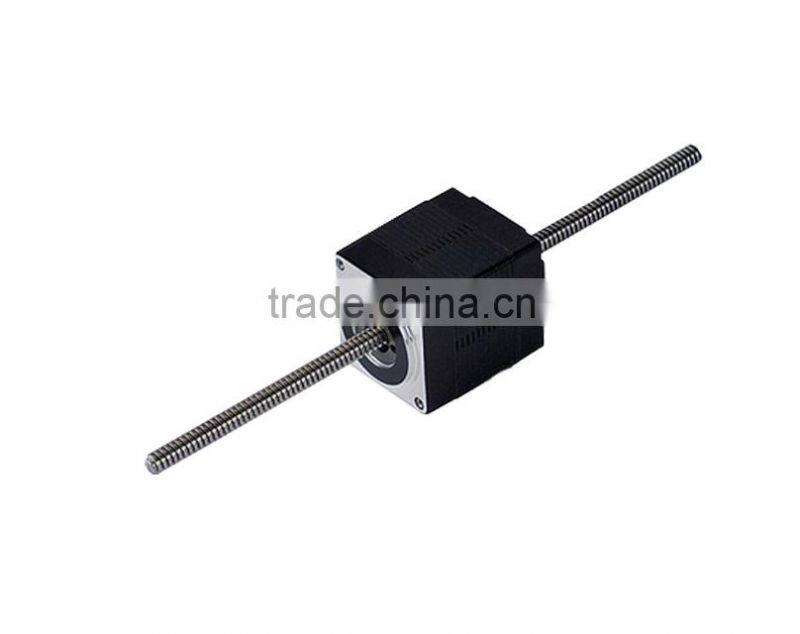

Help Center1.8 Step Angle Liner Stepper Motor
Related Products
-
Thread Rod or Lead Screw Nema 23 Non-captive Liner Stepper MotorUS$ 5 - 30MOQ: 1 Piece -
Nema 23 57mm Liner Stepper Motor, Holding Torque 20Kg.cm Linear for Electric Low Cost CheapUS$ 5 - 30MOQ: 1 Piece
-
High Torque CNC Engraving Machine Stepper Motor Nema 34US$ 15 - 60MOQ: 1 Piece
-
High Power CNC Sewing Machine Stepper Motor Kit Nema 34US$ 15 - 60MOQ: 1 Piece
-
Heavy Duty Stepper Motor 48v Stepper Motor With Digital ControllerUS$ 15 - 60MOQ: 1 Piece
Specification
| Item | Specifications |
| Stepper motor | 1.8 degree |
| Temperature Rise | 80℃ Max |
| Ambient Temperature | -20℃max~+50℃ |
| Insulation Resisitance | 100M Ω Min,500VDC |
| Dielectric Strength | 500VAC for 1Minute |
| Shaft Radial Play | 0.02 Max(450g-load) |
| Shaft Axial Play | 0.08Max(450g-load) |
| Max.Radial Force | 75N(20mm from the flange) |
| Max.Axial Force | 15N |

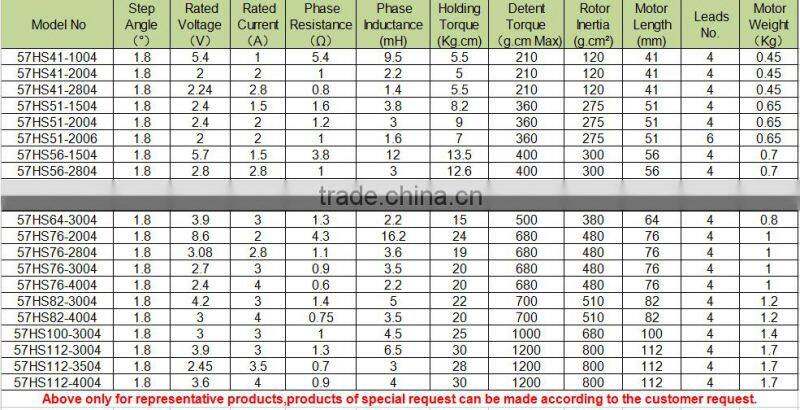

Electrical Specification

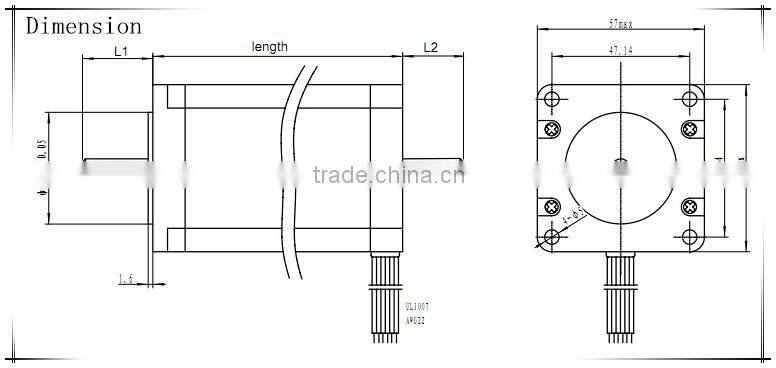

Demision
Lead screw Specification
| Diameter | Lead Distance | Start | Step Length | Applicable Motor |
| Tr8 | 1 | 1 | 0.005 | 57HSL-E/N |
| Tr8 | 2 | 1 | 0.01 | 57HSL-E/N |
| Tr8 | 4 | 2 | 0.02 | 57HSL-E/N |
| Tr8 | 8 | 4 | 0.04 | 57HSL-E/N |
| Tr10 | 4 | 2 | 0.02 | 57HSL-E/N |
| Tr12 | 6 | 2 | 0.03 | 57HSL-E |

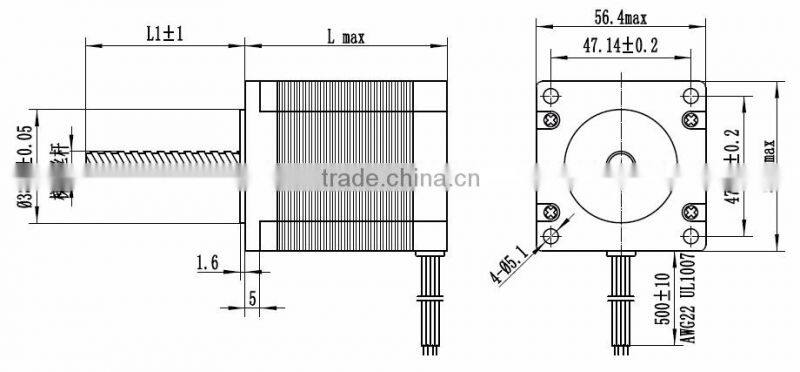

External Type Dimensions

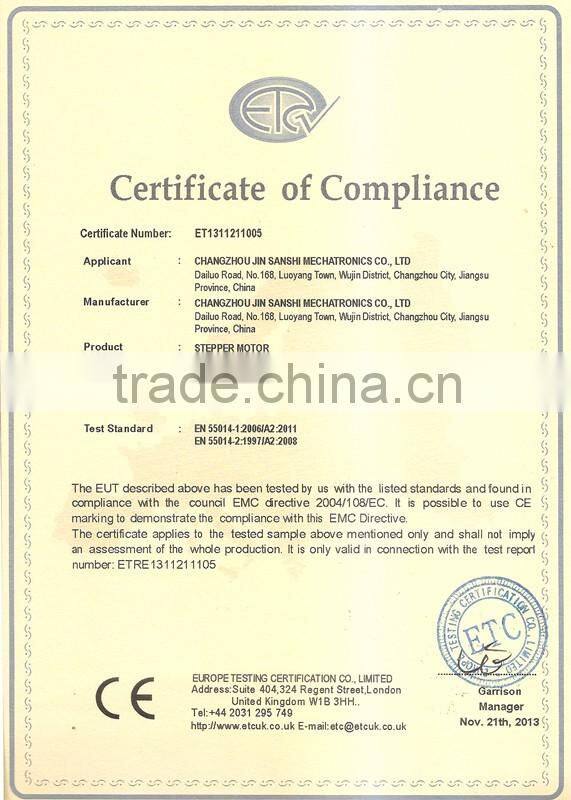

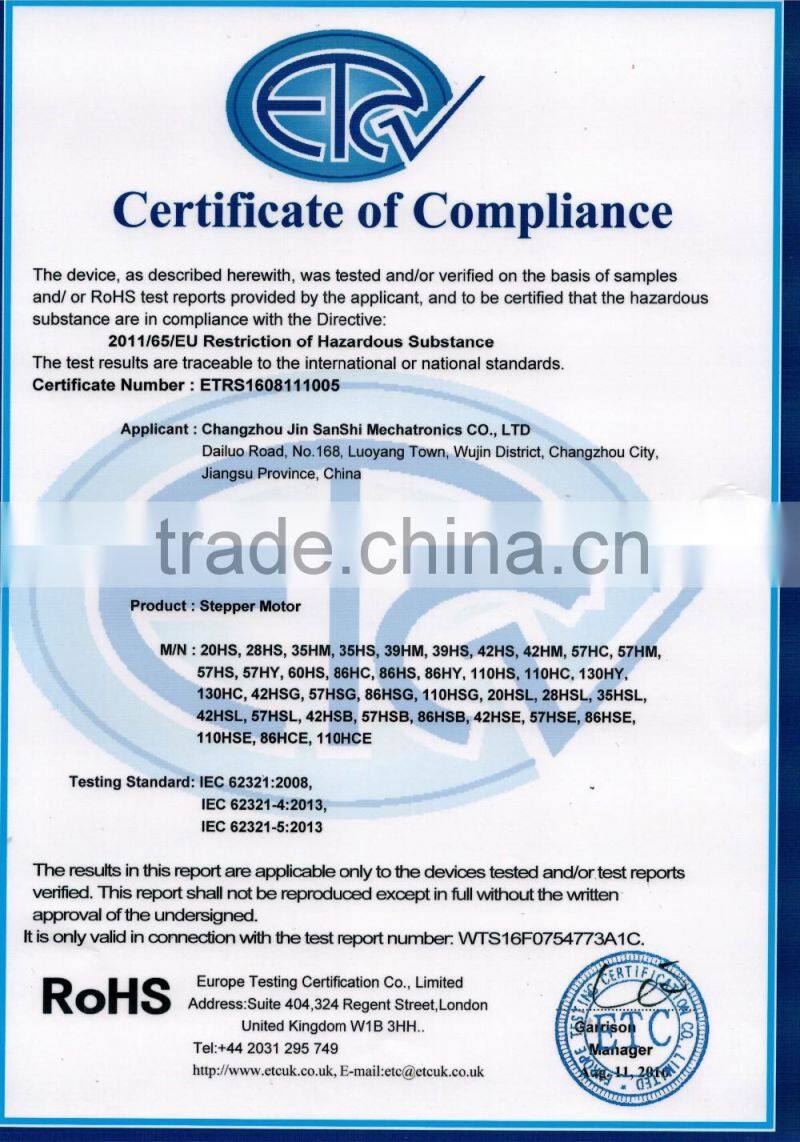

Certificate
our Services
- CNC machine, Printing machine
- Packing machine, Conveying machine
- Food processing machine, Lawn mower
- Textile machine, Electronic equipment
- Factory automation, Industry control
-
Industry automation, Motion control

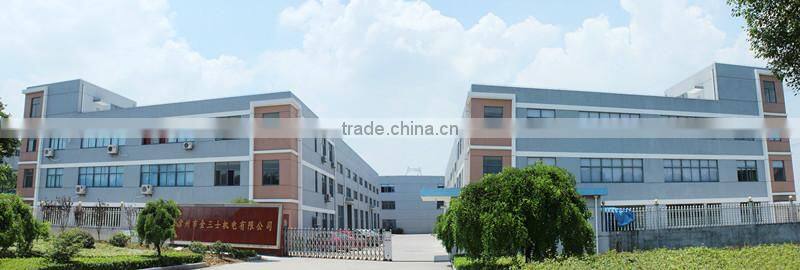

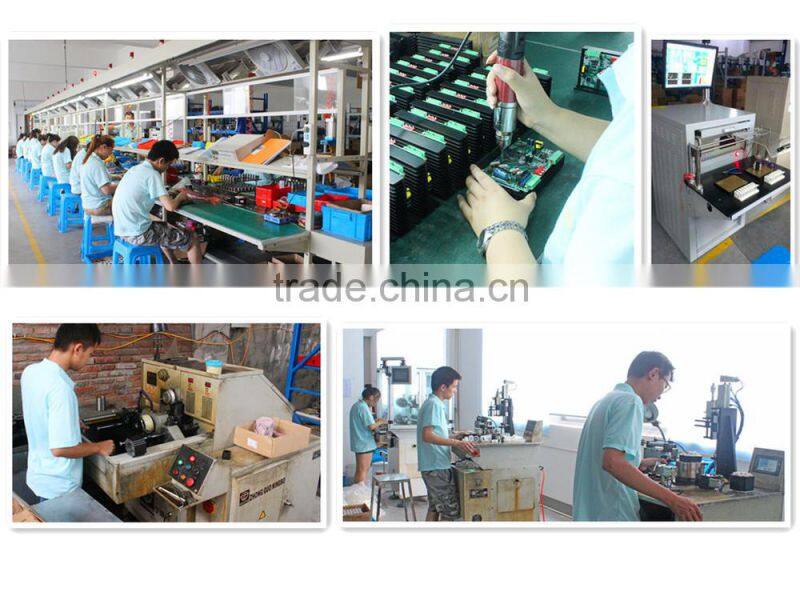

Factory
Team
Environment
1.Q:Can I get some samples?
A:We are honored to offer you samples for quality check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
