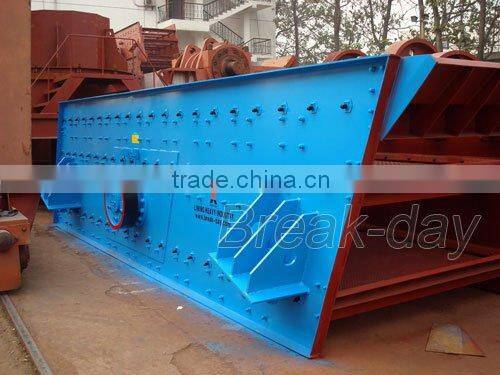

Coal Screening Machine Made by Liming Heavy Industry

Coal Screening Machine Made by Liming Heavy Industry photo-1
US$ 5,000 - 99,999,988 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Circular, Separator
Application:
Other, Ore, Ore
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Circular, Separator
Application Other, Ore, Ore
Place of Origin Henan, China
Brand Name LIMING
Model Number YZS

Specifications

Screening machine can process typical materials including coal, coke, crushed stone, sand and gravel,etc, with 2-4 layers webs.

Screening machine for YZS model is used to separate stones, minerals,sands ect and is composed of main frame, screen web, electric motor, eccentric bock, rubber spring, coupler and so on .We will offer suitable type according to your requirements.
YZS screening machine is widely used for classification in mining,construction material, transportation, energy,ect.



Screening machine Features:
1.No transmission of screen panels.
2.Easy change of screen plates.
3.High screening capacity.
4.Rigid and vibrating resistance screen body.
5.High durability.

 coal screening machine made by Liming Heavy Industry

screening machine specifications:



Model Screen size (mm) No. of Layer Screen mesh (mm) Max. feed size (mm) Handling capacity (t/h) Motor power (kW) Vibrating frequency (r/min) Double swing (mm)
2YZS1237 3700×1200 2 3-100 400 10-80 11 750-950 5-9
3YZS1237 3700×1200 3 3-100 400 10-80 11 750-950 5-9
2YZS1548 4800×1500 2 3-100 400 30-200 15 750-950 5-9
3YZS1548 4800×1500 3 3-100 400 30-200 15 750-950 5-9
2YZS1848 4800×1800 2 3-100 400 50-250 18.5 750-950 5-9
3YZS1848 4800×1800 3 3-100 400 50-250 18.5 750-950 5-9
4YZS1848 4800×1800 4 3-100 400 50-250 18.5 750-950 5-9
2YZS1860 6000×1800 2 3-100 400 65-586 22 750-950 5-9
3YZS1860 6000×1800 3 3-100 400 65-586 22 750-950 5-9
4YZS1860 6000×1800 4 3-100 400 65-586 30 750-950 5-9
2YZS2160 6000×2100 2 3-100 400 81-720 22 700-900 5-9
3YZS2160 6000×2100 3 3-100 400 81-720 30 700-900 5-9
4YZS2160 6000×2100 4 3-100 400 81-720 30 700-900 5-9
2YZS2460 6000×2400 2 3-150 400 100-810 30 700-900 5-9
3YZS2460 6000×2400 3 3-150 400 100-810 37 700-900 5-9
4YZS2460 6000×2400 4 3-150 400 100-810 37 700-900 5-9

Notice: Any change of Vibratory Screen (YZS Vibrating Screen) technical data shall not be advised additionally.
