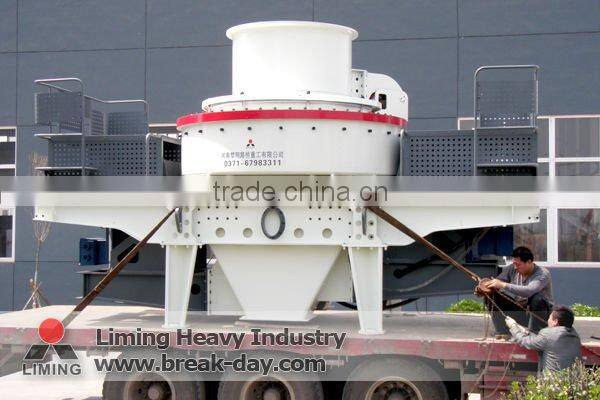

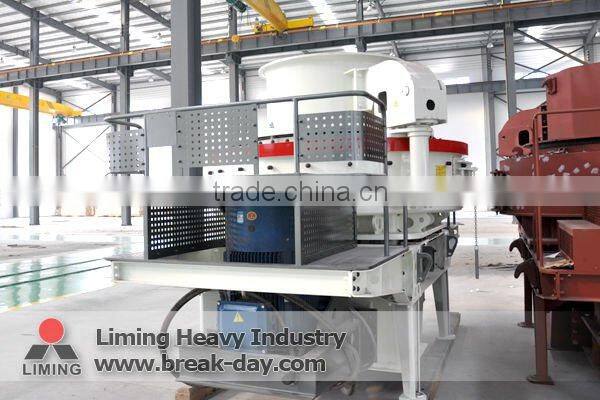

5X Sand Making Machine for Sale

Specifications

application of 5X sand making machine(Vertical Shaft Impact Crusher) for VSI5X series is widely used in various metallic and nonmetallic ores, cement, corhart, abrasive material, glass, construction material, machine-made sand, metallurgy, etc. It is also applicable to crush various stones with different hardness in medium and fine crushing area, such as iron ore, non ferrous metal, emery, bauxite, quartz sand, basalt, etc.

5X sand making machine(Vertical Shaft Impact Crusher) for VSI5X series featuers:
VSI5X series of Vertical shaft Impact Crusher introduces German technology. VSI5X with many patents is key equipment in sand making area. VSI5X is a kind of totally new high efficient crusher. It has the following features:

1. Rotor with deep chamber increases 30% capacity after perfect design.

2. Side plate direction can be changed to increase material utility ratio, operating ratio can be increased 48%.

3. Worn hammer with combined type is only changed to reduce operating cost 30%. Another pair of vice hammer is added to prevent from damaging main hammer and side plate.

4. The most key wear resistant material uses wear resistant and high temperature resistant material in American important area.

5. Rhombus shape impact plate is used to prevent side plate from being damaged.

6. Bearing is famous international brand imported from Japan, Sweden, America, etc.

7. Perfect discharge and smooth curve reduce resisting force when material flows, so capacity is increased greatly.

8. Spread dish with double purposes can make two feeding ways change easily.

9. Special seal structure under main shaft guarantee no oil leak without seal.

10. Japanese hydraulic opening cover device is originally imported. The cover is moved easily and inspection of inner part is easy.

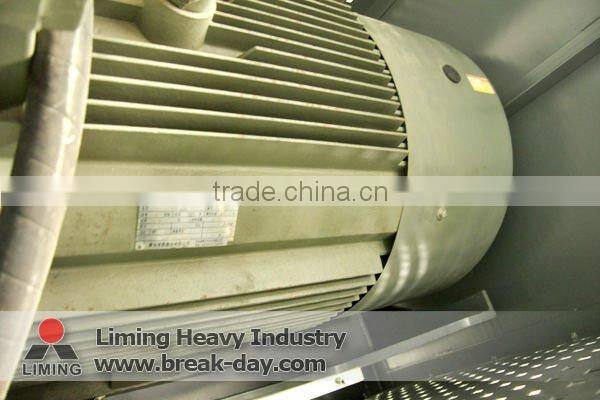

11. Motor with high grade of protection is selected. The motor has features of high efficiency, low noise, etc. The motor complies with IEC, insulation grade F, protection grade IP54/55.

Operation principle of 5X sand making machine (vertical shaft impact crusher):

Simply speaking, the operation principle of vertical shaft impact crusher is "stone strikes stone", that is, materials enter the impeller cavity, which is turning at high speed, at the top. With centrifugal force, the materials will impact other materials that fall around the impeller. Then, after interact striking, materials will impact on material layer between the impeller and scaleboard for many times and will be rubbed and crushed. Then they will be discharged at the bottom.

Technical parameters of 5X sand making machine:

Note: Capacity depends on crushing limestone, material size, moisture and features also affect capacity.

2. Lubricating system parameter:

Notice: Any change of VSI5X series of Vertical Shaft Impact Crusher technical data shall not be advised additionally.
