Home > Products > Sand Making Machine > LIMING VSI Sand Making Machine Hot Selling in India

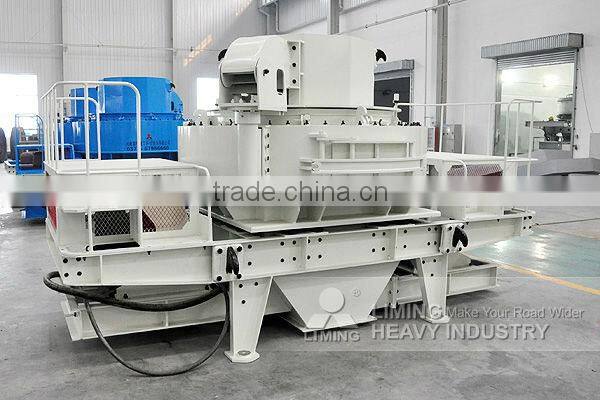

LIMING VSI Sand Making Machine Hot Selling in India
- Tianjin Qingdao Shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | LIMING | Model Number | VSI-1140 | |
| Power(W) | 400000 | Dimension(L*W*H) | 5100mm*2690mm*3200mm | |
| Weight | 25.6t | Certification | ISO9001:2000 | |
| Warranty | 1year |
Product Description
Specifications
Widely used in crushing and reshaping of metallic and nonmetallic ore,buliding materials,artificial sand and all kinds of slags.Features of the VSI sand making machine
1. Advanced double-pump oil lubrication system guarantee shaft bearing lower temperature increase, longer life time, more reliable operation.
2. Main shaft is equipped with imported precision rolling bearing. It makes main shaft work stable, lengthen maintenance cycle, increases productivity.
3. Hydraulic lifting mechanism of upper cover can move away the cover easily, which saves man power during maintenance.
4. Over-vibration device is equipped. There will be alarm when vibration surpasses a stipulated figure. It will stop the machine, in order to protect it.
5. Special dust-proof design for main shaft bearing fully avoid dust entering bearing lubrication part, which make sure the machine work normally.
6. Special feed opening structure makes it possible that center feeding and ring feeding comes together, in order to meet requirement of different stones. In addition, this equipment can not only crush stone, but also iron.
7. Shape of material-through device is better designed, which improve the utilization ratio.
| Model | VSI7611 | VSI8518 | VSI9526 | VSI1140 | |
| Capacity (t/h) | Center and Ring feeding | 120-180 | 200-260 | 300-380 | 450-520 |
| Center feeding | 60-90 | 100-130 | 150-190 | 225-260 | |
| Max Feed Size (mm) | Soft material | <35 | <40 | <45 | <50 |
| Hard material | <30 | <35 | <40 | <45 | |
| Rotation speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | |
| Power for double motor (kW) | 110 | 180 | 264 | 400 | |
| Overall Dimension L×W×H (mm) | 4100×2250×2285 | 4140×2280×2425 | 4560×2450×2780 | 5100×2690×3200 | |
| Weight (t) | 7.8 | 10.3 | 16 | 25.6 | |
| Power Source | 380v 50Hz | ||||
| Vibrating Sensor | Inspect scope: 0.1-20mm/s adjusted continuously | ||||
| Lubrication hydraulic pressure station | Power for double oil pump | 2×0.31kW | |||
| Safety | To make sure the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cools; start the motor by heating it in winter. | ||||
| Overall dimension L×W×H(mm) | 820×520×1270 | ||||
| Power for oil box heater | 2 kW | ||||
Notice: Any change of Sand Making Machine technical data shall not be advised additionally.
