Quarry Plant, Rock Stone Production Line

If you would like to receive the price and detailed specifications of our Quarry Plant, Rock stone production line, please Leave Us a message Below!!



Overview of Quarry Plant, Rock stone production line


Henan Liming Heavy Industry Science & Technology Co.,Ltd. (formerly Henan Liming Road & Bridge Heavy Industry Co., Ltd.) manufactures various equipments for a whole set of Stone processing machinery, and provides complete technical support for customers. The whole Stone processing machinery consists of vibrating feeder, jaw crusher, impact crusher, vibrating screen, belt conveyor, electric control, etc. We design different production lines ranging 50 t/h to 500 t/h by combining different models of equipment which can match cone crusher, deduster, etc. If necessary to satisfy different customers’ technological requirements. It is widely used for crushing hard limestone, granite, basalt, gravel, metallurgic slag, etc. Or artificial sand making for hydroelectric power, building material, high way, city construction, etc. Different models of machines are combined to meet different customers' different demands according to different craft requirements.



Working Principle of Quarry Plant, Rock stone production line

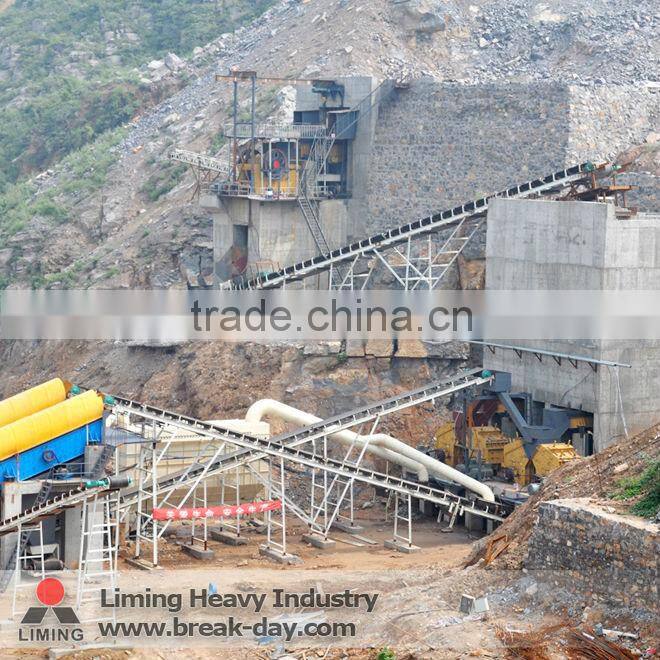

Big size stones are transferred to primary crusher through vibrating feeder from hopper for first crushing, then the crushed materials are transferred to impact crusher through belt conveyor for secondary crushing. The materials crushed will be transferred to the vibrating screen, and separated to different sizes. The aggregate with suitable size will be transferred to the final product pile and aggregate with unsuitable size will be transferred to the impact crusher for re-crushing. This forms a closed and manifold cycles. The sizes of final products will be graded and separated according to customers' requirements, and the duster will be attached for the sake of environment protection.


Configurations of Quarry Plant, Rock stone production line


1. Capacity: 80-120t/h

The mainly device of this Stone processing machinery including Vibrating Feeder(GZD960X3800),Jaw crusher(PE600X900),Cone crusher(CSB160)/impact crusher(PF1214),three sets vibrating screen (3YZS1860),Belt conveyor, electronic control system.

This Stone processing machinery is widely used in the crushing granite, basalt, river stone, andesine, Iron ore, manganese ore and other hard material.

2.Capacity: 120-200t/h

The mainly device of this Stone processing machinery including Vibrating Feeder(GZD1100X4200),Jaw crusher(PE750X1060),Cone crusher(HPC220)/Impact crusher(PF1315),three sets vibrating screen (3YZS2160),Belt conveyor,electronic control system.

This Stone processing machinery is widely used in the crushing granite, basalt, river stone, andesine, Iron ore, manganese ore and other hard material.

3.Capacity: 200-300t/h

The mainly device of this Stone processing machinery including Vibrating Feeder(GZD1300X4900),Jaw crusher(PEW860),two sets Cone crusher(CSB160/HPC220),three sets vibrating screen (3YZS2160),Belt conveyor,electronic control system.

This Stone processing machinery is widely used in the crushing limestone, marble, dolomite, gypsum, sand stone, etc soft or medium hard material

4. Capacity: 300-500t/h

The mainly device of this Stone processing machinery including Vibrating Feeder(GZD1300X4900),Jaw crusher(PEW1100),two sets Cone crusher(HPC400/HPC220),three sets vibrating screen (3YZS2160),Belt conveyor,electronic control system.

This Stone processing machinery is widely used in the crushing limestone, marble, dolomite, gypsum, sand stone, etc soft or medium hard material

5. Capacity: 500-800t/h

The Stone processing machinery mainly including Vibrating Feeder(GZD1500X6000),Jaw crusher(PE1200x1500),two sets impact crusher(PFW1415),two sets vibrating screen (3YZS2460),Belt conveyor,electronic control system.

This Stone processing machinery is widely used in the crushing hard material and usually used in the big projects construction such as the infrastructure waste disposal,Railway construction and so on.

If you want to have a good knowledge of the demo map about the this Stone processing machinery configuration, please contact our online service.
