Specifications
laser cutting smoke absorber1. Voltage and power : 220v 450W
2. With high quality and strong package
3. Fast shipment
Factory Price !!! (220V 450W) MD-3109 High Efficiency Electrostatic Air Purification Systems / Air Dust Absorber / Air Purifier
Detailed product description :
1. Voltage and power : 220v 450W
2. With high quality and strong package
3. Fast shipment
Product features :
1. Hardened Appearance , full metal frame structure, resistant to strong impact and vibration; lighter, and convenient to move.
2. The installation is simple and convenient, without the other joint pipe, is advantageous in the work space neat and beautiful.
3. Multiple filter design to ensure that the smoke filter harmful substances and to protect human safety. Initial effect, the effect and the main filter all can separate replacement, prolong the service life of the main hepa filter.
4. Built-in air circulation filtering way, avoid indoor air conditioning/heat emission outside, according with environmental protection standard.
5. High power dc brushless motor, low noise operation, work long life. Vortex type to metal wheel design, air volume is high, the suction force big, safe and reliable.
6. Variable type single/double location design, air volume can be stepless regulation; Smoking pipe can random variable to, positioning.
Parameter :
|
modle
Parameter |
MD3104 |
MD3106 |
MD3109 |
Wind into interface |
φ75mm flange |
φ75mm flange |
φ90mm flange |
Input Voltage |
AC220V |
AC220V |
AC220V |
Power |
220W |
320W |
450W |
Static press |
2200Pa |
3200Pa |
4000Pa |
Wind speed |
28 m/s |
35 m/s |
40 m/s |
Filtering effect |
0.3μm 99.97% |
0.3μm 99.97% |
0.3μm 99.97% |
Noise |
<65dB |
<70dB |
<75dB |
Smocking tube length |
1.4M |
1.4M |
1.4M |
Fan Flow |
400m³/h |
550m³/h |
800m³/h |
Overall size |
400X300X360mm |
400X240X560mm |
500X400X750mm |
Weight |
15kg |
28kg |
50kg |
Steps for filtering dust particle :

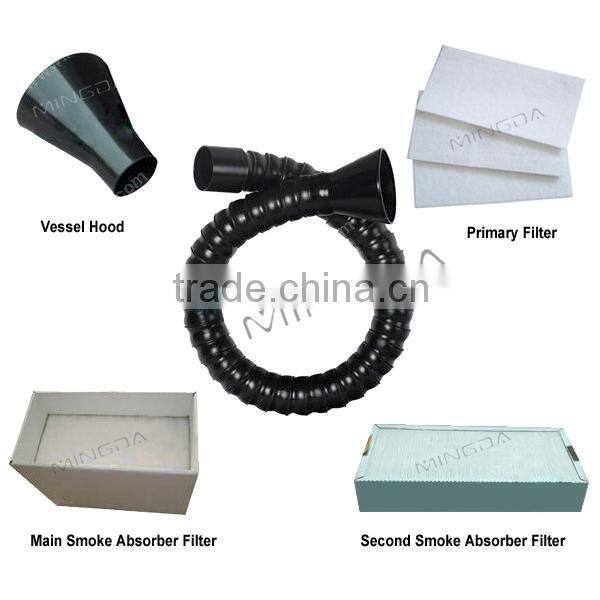

Packing list :
Name of part |
quantity |
dimension |
Main machine |
1 pcs |
|
Power cord |
1 pcs |
|

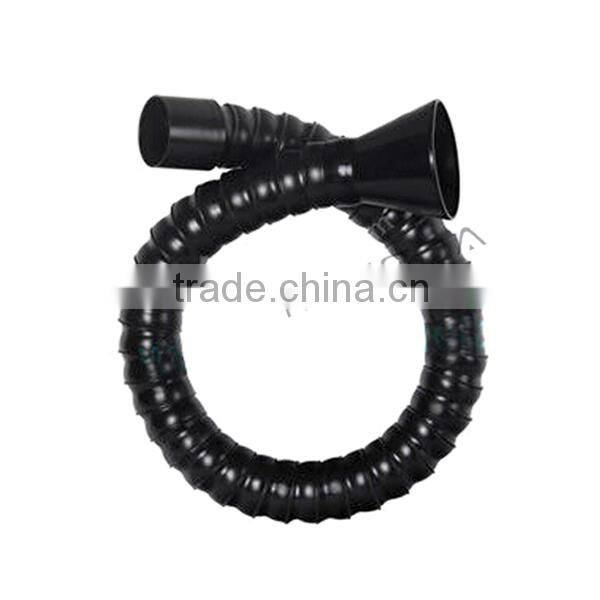

Smoke hose |
1 pcs |
Connect the channel |
Manual |
1 pcs |
|
The cotton of Primary filter |
4 pcs |
Standard size |
Note:
1. Smoking pipe length can be according to the customer request custom.
2. The FengKouChu flange can be according to the customer request custom
3. Caster can be added according to the customer request

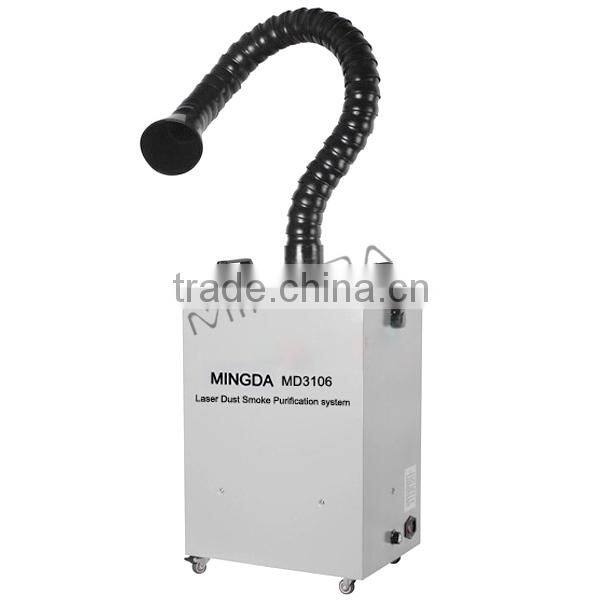

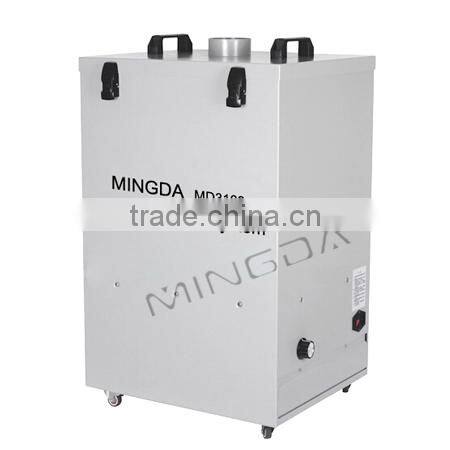

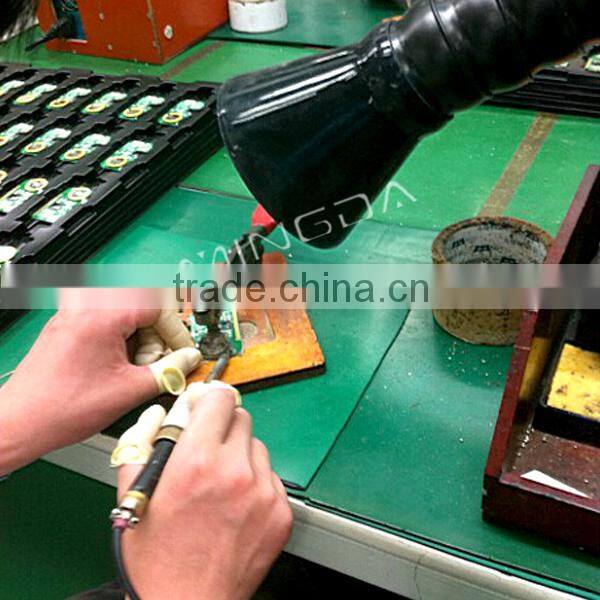

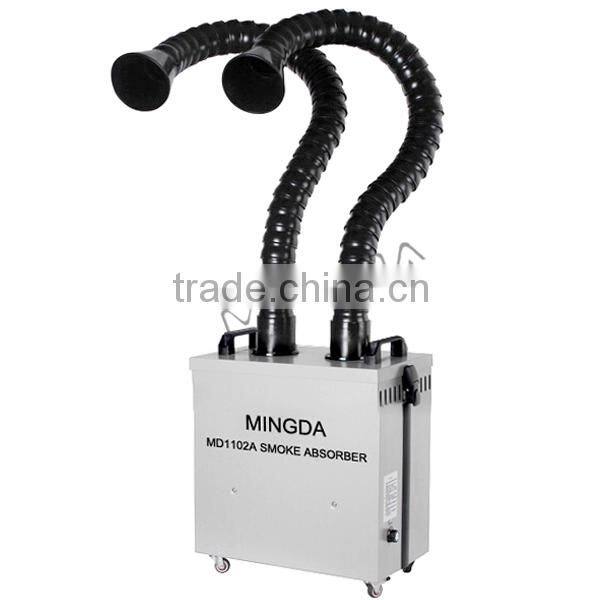

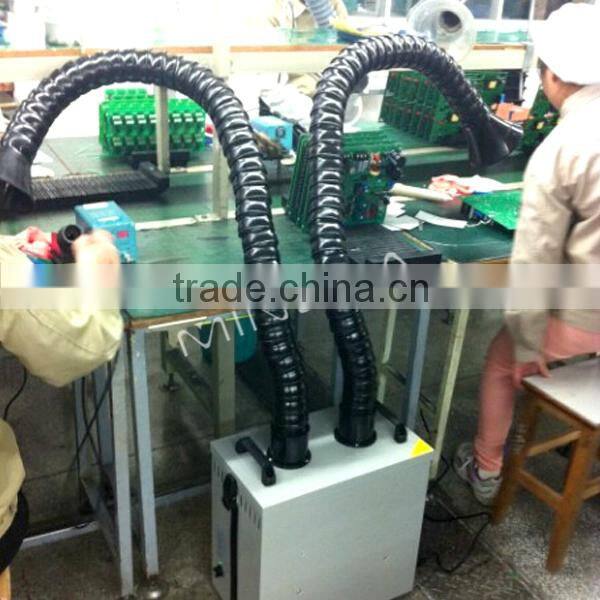

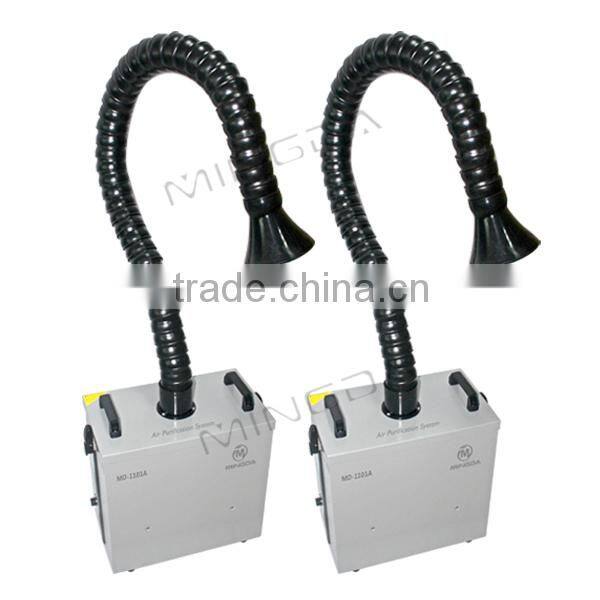

Pictures :
