Hot-selling factory sale MINGDA 600*900*110mmcheap cnc milling machine , large multi head 4 axis cnc machine for pcb
Hot-selling, factory direct sale price
MINGDA CNC carving machine, specialist CNC carving machine
MINGDA CNC engraving machine, start from 1997
MINGDA CNC milling machine, pioneer CNC machine milling machine
4th axis , 5th axis, water tank, DSP controller, USB controller are available
Spindle choice : 800W; 1500W; 2200W

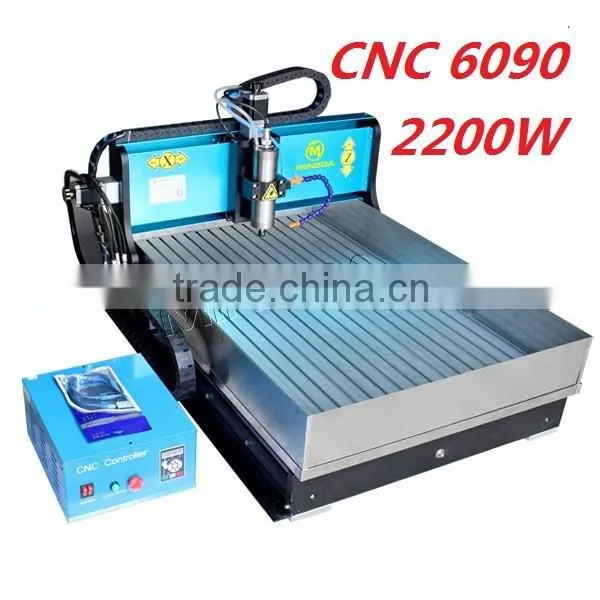

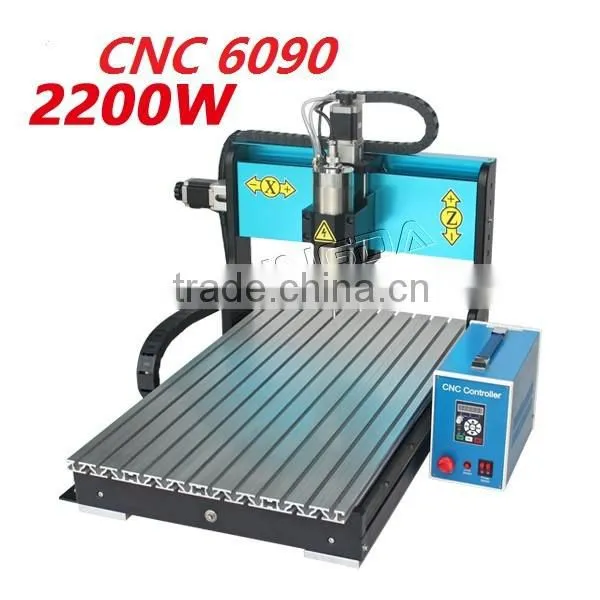

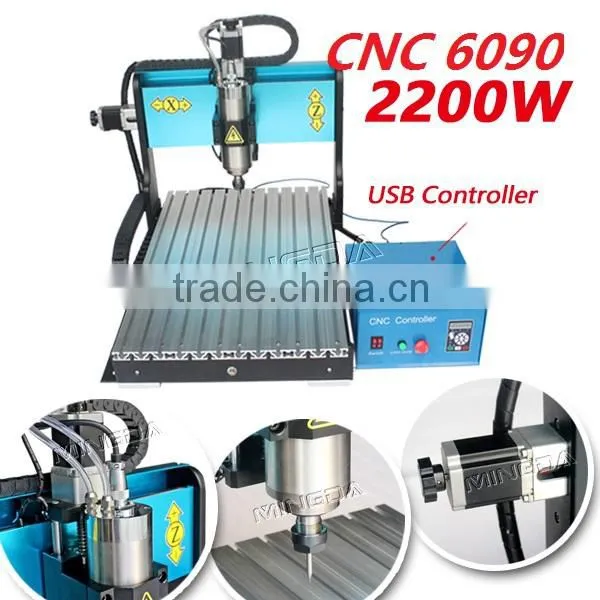

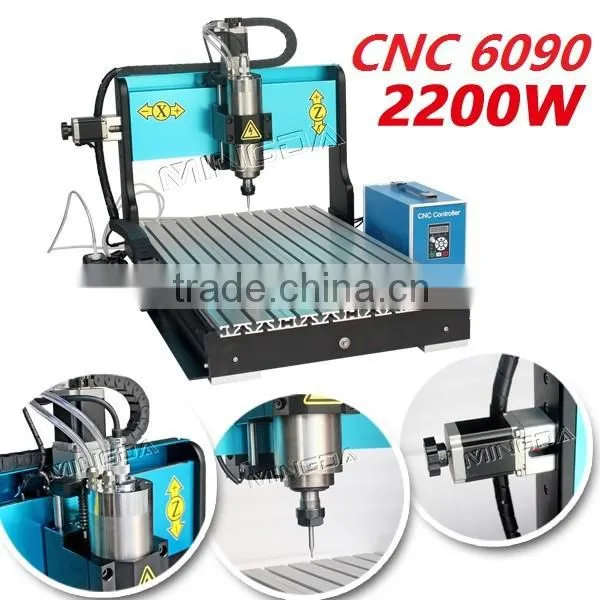

Specifications of MINGDA MD CNC 6090 -2200w cheap cnc milling machine
| Model | MINGDA CNC 6090-2200w |
| Dimension | 1250*900*640mm |
| X,Y,Z axis woking travel | 600*900*110mm |
| The Max thickness of Carved objects | 150mm |
| Rack material | 6061+6063 Aluminum alloy |
| Transmission unit | X ,Y,Z axis is 1605 T Screw |
| Sliding unit | X:Φ25,Y:Φ25,Z:Φ16 |
| water-cooled spindle | |
| Frequency converter | AC220V,2200W,0~400Hz(inside CNC controller) |
| Spindle Power | 200W/AC220, SCM stepless speed regulation |
| Speed (r/pm) | 0-24000 |
| Clamping diameter | 3.175mm |
| Cooling way | water cooled |
| max feeding speed (mm/min) | 8000 |
| Carving speed(mm/min) | 50~6000 |
| Carving accuracy | 0.03mm |
| Repositioning Accuracy(mm) | 0.02mm |
| Input voltage | 220V / 110V |
| Instruction format | G code (tap, nc, ncc, text) |
| Compatible software | Mach3/TYPE3/ArtCAM/CAD/CAM etc |
Features of the MINGDA cheap cnc milling machine
--New design, elegant appearance.
-- Z-axis travel up to 150mm, sculpture and large objects can be added to meet the requirements 4th axis.
--the new high current 5.6A stepper motor, high-speed stability.
--XYZ axis travel limit switches are set up to avoid trouble during operation Super processes.
--Z-axis automatic tool function, multi-tool change machining to zero error.
Application of MINGDA cheap cnc milling machine
Mingda cnc router metal engraving machine mainly used in PVC, acrylic, double color boards, engineering plastic, bakelite, and other non-metallic materials solid wood engraving and milling, graphite electrode machining, is also suitable for carving PCB circuit board, wood mold model, and opening hole or carving for plastic boxes, aluminum alloy chassis, panel which is under limited size, also can be the low feed rate on aluminum, copper and other metal materials for three-dimensional carving and milling processing; it can also be used as a simple primary three-dimensional CNC table to use, such as the test laser engraving, CNC dispensing, CNC positioning, metal ( nameplate marking etc. ).

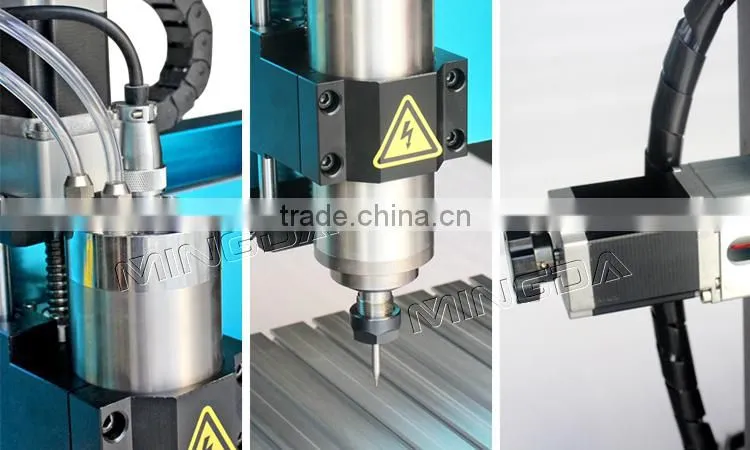

Powerful water cooled spindle of MINGDA cheap cnc milling machine

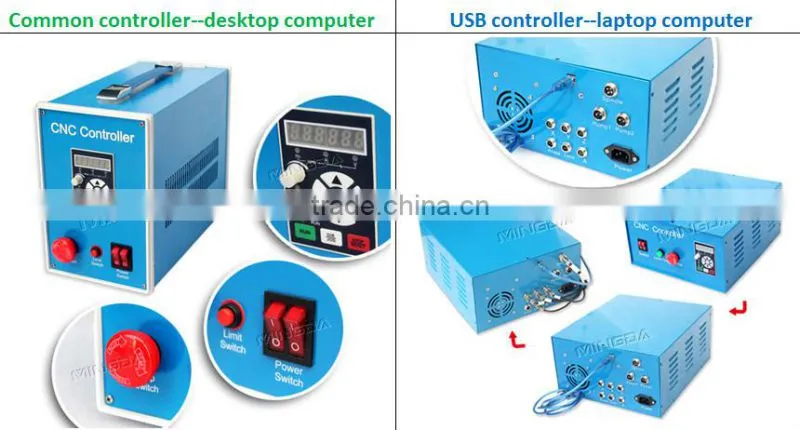

Controller of MINGDA cheap cnc milling machine
The 4 axis ----make MINGDA cheap cnc milling machine can carve round objects
Remarks:

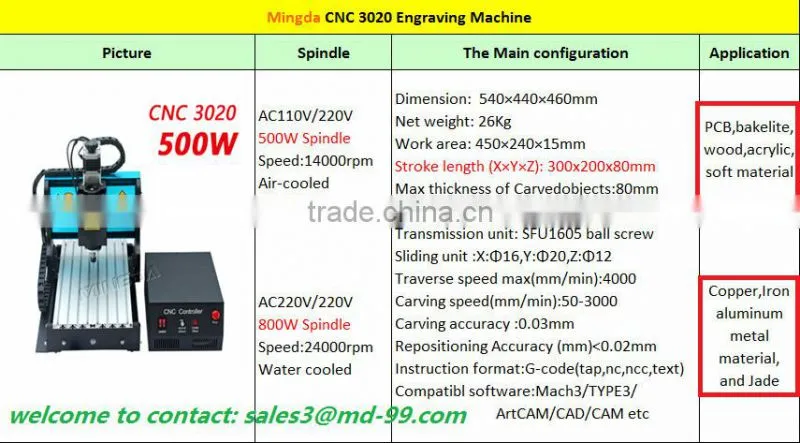

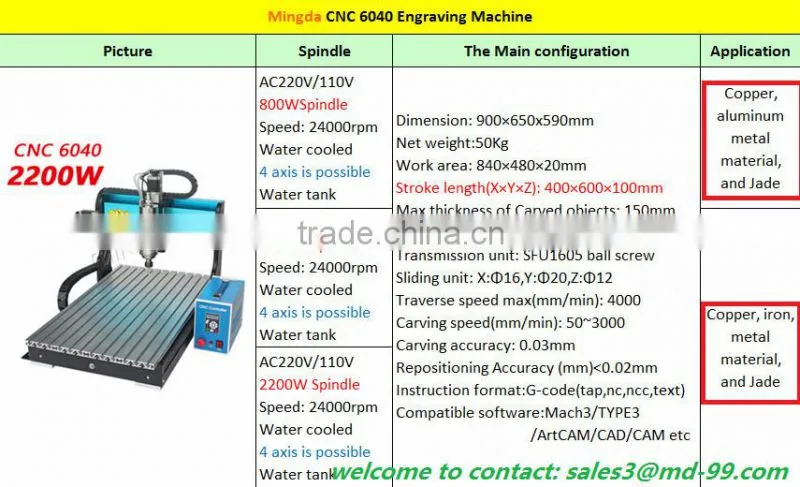

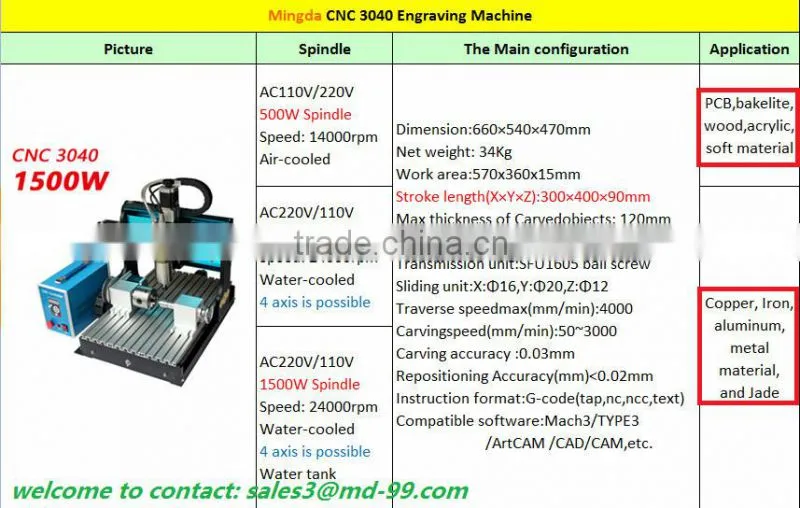

MINGDA have high quality 4 axis cnc machine for different size and different spindle power.
Welcome you contact with us and find the most suitable one for you.
MINGDA cheap cnc milling machine ---Handle process:
Notes when install MINGDA cheap cnc milling machine
1.Assembling and locating the CNC machine on steady desk well.
2.Make sure that your computer has a on-board parallel port output.
3.Installing a CNC control software and Drive such as the MACH 3 on your computer.
4.Connecting the control box with the CNC machine and your computer.
5.Following our manual or guideline to set up the software.
6.You can enjoy making you dream with using our CNC machine now.

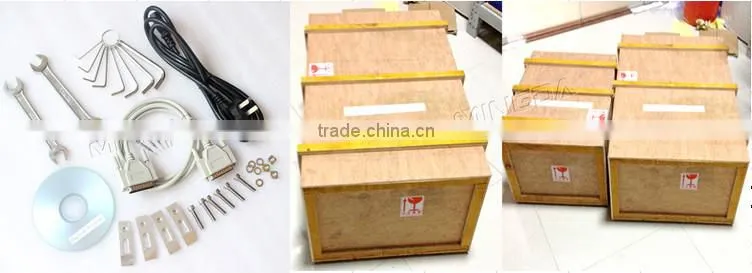

Packaging Details about MINGDA cheap cnc milling machine
strong wooden package with below parts
a. One set Engraving machine, a auxiliary electric control box;
b. A tool box ( contains 5 milling bits , 1 sandwich plate, 4 sets T type screw nut, 4Clamp, 1 sets six-angle wrench) ;
c. One parallel data line , a power line;
d. A water pump and a cutting instrument free as gifts;
e. One CD card (include engraving software, control software , video tutorials and thousands of grayscale images;
Remarks: Mingda also provide USB connector, 4th axis, 5th axis, water tank, DSP controller, drilling and milling bits of different kinds if you need.
Services of MINGDA cheap cnc milling machine
1. 24hr Online Customer service, please e-mail/QQ/skype us ( Please contact us anytime!)
2. Attend and hold Exhibitions, we attach great importance to promote the cnc router machine
3. In many cases, we won't let shipping cost becomes a burden to you.
After-sales service of MINGDA cheap cnc milling machine
One year warranty and lifelong maintenance
During the warranty we will exchange the problematic parts for you freely, and we provide technical supports when you use this wonderful engraying machine!
Why choose MINGDA cheap cnc milling machine ?
Shenzhen Mingda Technology Co., Ltd is the professional research and development professional research and development production of CNC engraving machine and cutting Machine. This machine is suitable for industry ,Technology Research, Advertising Design, Arts Creation, Building Model Making ,PCB, Teaching, Student Project and Hobby Purposes, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home. In addition, it can be upgraded to be installed a rotational axis.
Also it is suitable for various materials ,such as PCB,WOOD,PMMA or other plastic ,MDF board, native wood, PVC, Acrylic, metal, steel, solid wood, composite board plywood, stone. If you want to make sure this engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and we will test it for you.
OEM service about MINGDA cheap cnc milling machine
In order to explore the marker better and provide more convenient services for global customers, in the year of 2014, we sincerely invite overseas agent to create bright future together.
Dear friend,
Please feel free to contact us if you are interested in our cheap cnc milling machine ,we will try our best to support you.
MINGDA CNC carving machine, specialist pcb cnc machine
MINGDA CNC engraving machine, start from 1997
MINGDA pcb cnc machine , pioneer CNC machine milling machine
Hot-selling factory sale MINGDA 600*900*110mmcheap cnc milling machine , large multi head 4 axis cnc machine for pcb
