Specifications:
cnc engraving machine
1.Work Area:570x360x15mm
2.Speed:24000rpm
3.AC220V/800W
4. Engraving Speed: 50~3000mm/min
We always be imitated.Never be surpassed.

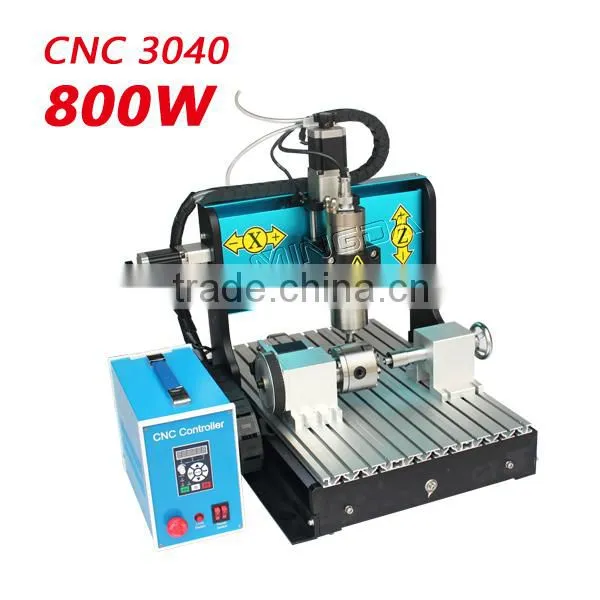

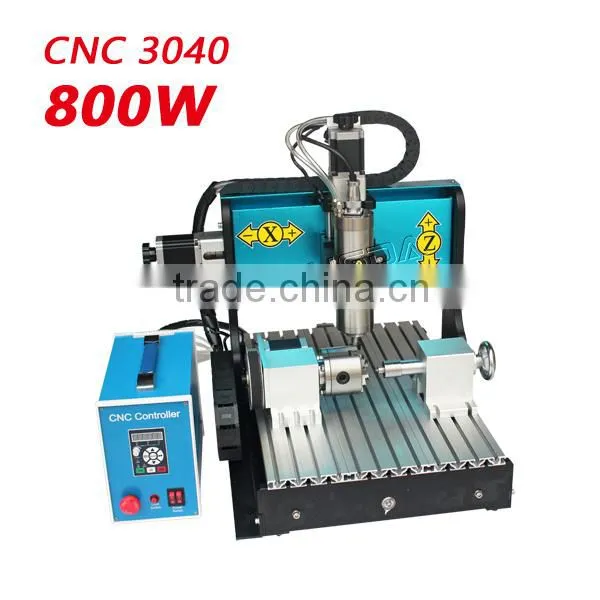

Best price cnc router / mini metal engraving machine CNC-3040
Descriptions of this CNC carving machine:
Engraving machine design uses: mainly used in PVC, acrylic, double color boards, engineering plastic, bakelite, and other nonmetallic materials solid wood engraving and milling, graphite electrode machining, is also suitable for carving PCB circuit board, wood mold model, and opening hole or carving for plastic boxes, aluminum alloy chassis, panel which is under limited size, also can be the low feed rate on aluminum, copper and other metal materials for threedimensional carving and milling processing; it can also be used as a simple primary threedimensional CNC table to use, such as the test laser engraving, CNC dispensing, CNC positioning, metal ( nameplate marking etc. ).
Product features:
1.Mechanical configuration: ball screw
2.Control box configuration: water cooled frequency conversion
3.Spindle motor configuration :800w
4.Electric power:220V or 110V
5.Part mkotor configuration: 57BYGH76-401B
6.GW(wooden packing) kg: 56
7.Wooden size:85*65*60cm
Parameter:
Model |
3040 |
Dimension |
670×510×435mm |
Work area |
570x360x15mm |
X,Y,Z axis woking travel |
300x400x90mm |
The Max thickness of Carved objects |
120mm |
Rack material |
6061Aluminum alloy |
Transmission unit |
X ,Y,Z axis is 1404 T Screw |
Sliding unit |
X:Φ16,Y:Φ16,Z:Φ12 |
water-cooled spindle | |
Consumption |
DC110V~220V,800W |
Spindle Power |
800W/AC220, SCM stepless speed regulation |
Speed (r/pm) |
0-24000 |
Clamping diameter |
3.175mm |
Cooling way |
Water cooled |
feeding speed max(mm/min) |
3000 |
Carving speed(mm/min) |
50~3000 |
Carving accuracy |
0.03mm |
Repositioning Accuracy |
0.03mm |
Input voltage |
220V or 110V |
Instruction format |
G code (tap, nc, ncc, text) |
Compatible software |
Mach3/TYPE3/ArtCAM/CAD/CAM etc |

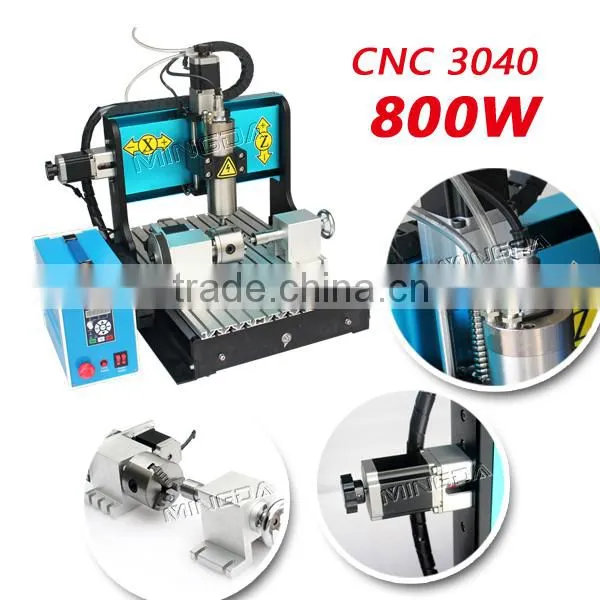

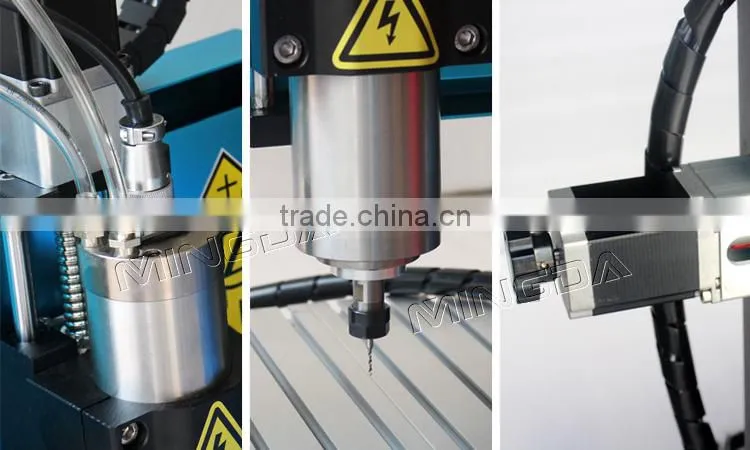

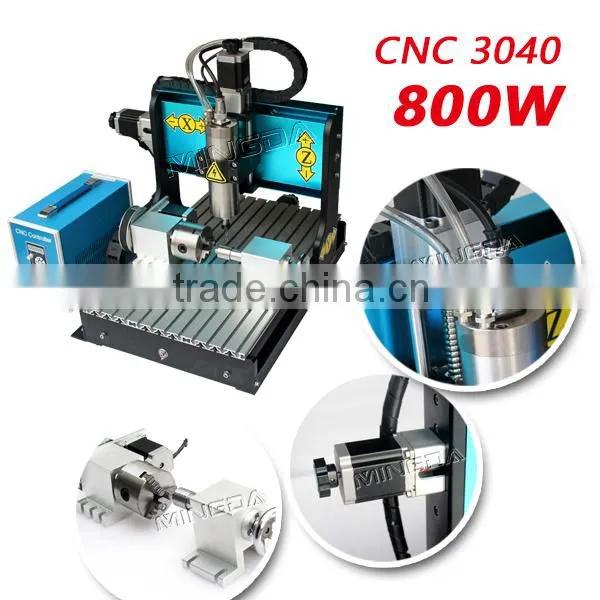

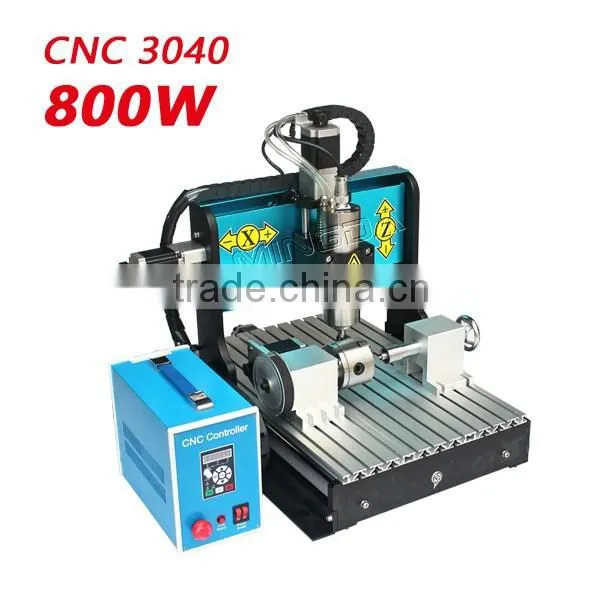

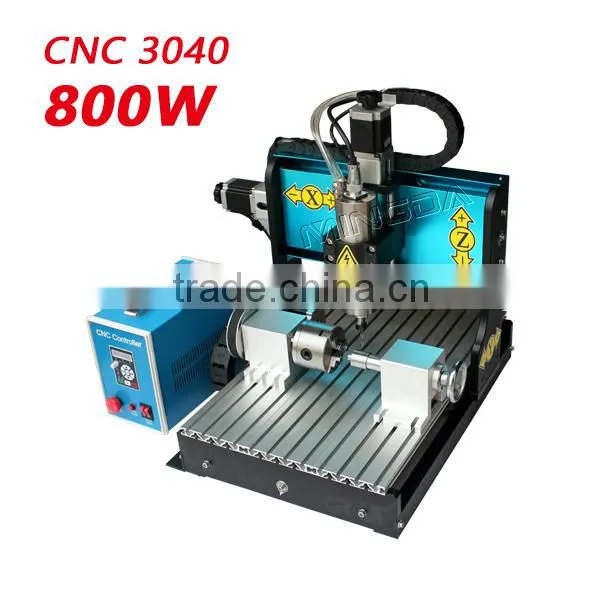

More pictures of the powerful water cooled cnc router machine :
Samples for this CNC engraving machine :

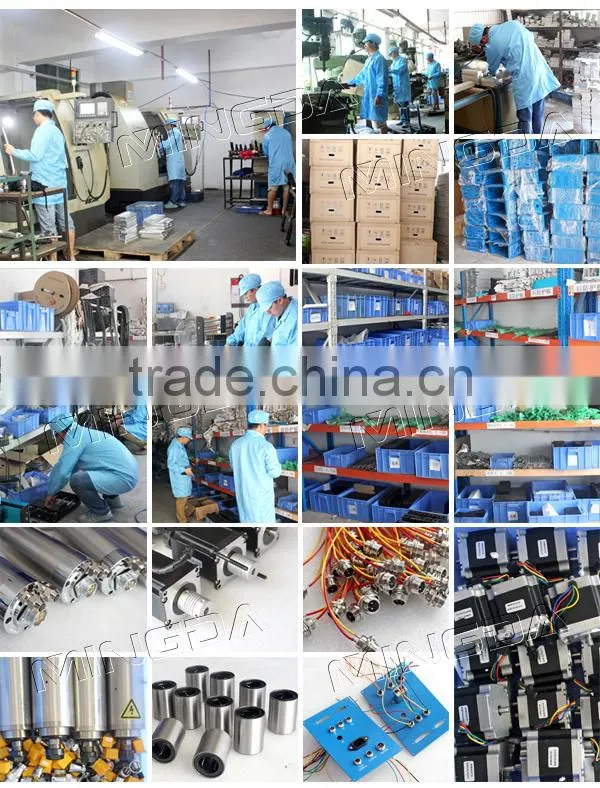

MINGDA Story
Leading Force in 3d printer field
henzhen Mingda Technology Co., Ltd is the professional research and development professional research and development production of CNC engraving machine and cutting Machine. This machine is suitable for industry ,Technology Research, Advertising Design, Arts Creation, Building Model Making ,PCB, Teaching, Student Project and Hobby Purposes, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home. In addition, it can be upgraded to be installed a rotational axis.
Also it is suitable for various materials ,such as PCB,WOOD,PMMA or other plastic ,MDF board, native wood, PVC, Acrylic, metal, steel, solid wood, composite board plywood, stone. If you want to make sure this engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and we will test it for you.
Payment Details
Payment Terms |
T/T, Western Union, Paypal |
Payment time |
pay when the order is comfirmed and get commerical invoice. |
Delivery Details
Delivery |
By Air , by sea, by UPS, DHL, FEDEX or according to customer's demand |
Delivery time |
3-5days after payment |
Our Services
1.24hr Online Customer service, please e-mail/QQ/skype us ( Please contact us anytime!)
2.Attend and hold Exhibitions, we attach great importance to promote the cnc router machine.
3.In many cases, we won't let shipping cost becomes a burden to you
Warranty, Returns, and Replacement
The Warranty of MINGDA products is 1 year. we offer free replacement during warranty. Returns are possible only on unused items, within 7 days of receipt. We will provide parts or service on items that prove to be defective from the time of manufacture, and we'll work with you to get your printer running again.
Please rest assured, MINGDA Industrial ultrasonic cleaner quality is giaranteed!
OEM Service
In order to explore the marker better and provide more convenient services for global customers, in the year of 2014, we sincerely invite overseas agent to create bright future together.
Your satisfaction is our biggest power !
Our Team make concerted efforts to create success !
Best price cnc router / mini metal engraving machine CNC-3040
