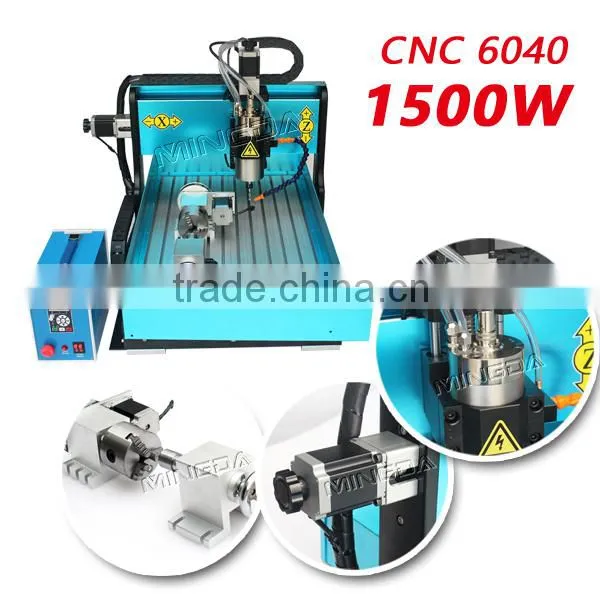

MINGDA cnc-6040 1500w cnc engraving machines with water-cooled spindle, wood carving machine

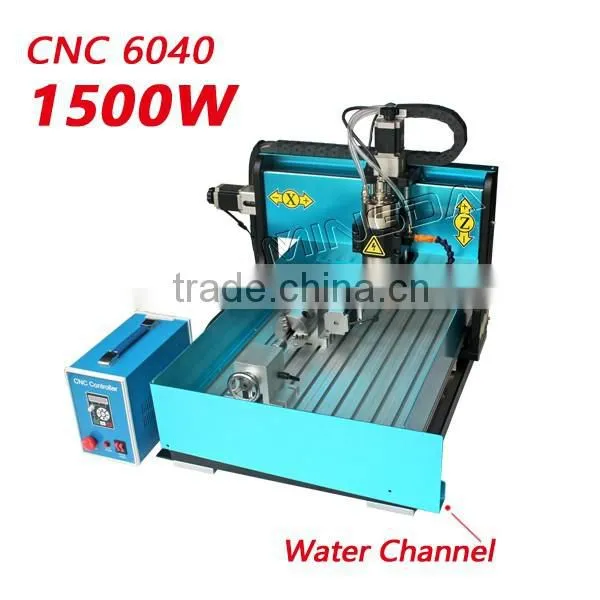

MINGDA cnc-6040 1500w wood carving machine , Wood CNC Router
Specifications of MINGDA high quality large wood carving machine
--Can be added 4th axis
--Repositioning Accuracy(mm):0.01mm
cnc engraving machine
OEM service about MINGDA high quality large wood carving machine
In order to explore the marker better and provide more convenient services for global customers, in the year of 2014, we sincerely invite overseas agent to create bright future together.
Features of the high quality large wood carving machine
--New design, elegant appearance.
-- Z-axis travel up to 150mm, sculpture and large objects can be added to meet the requirements fourth axis.
--the new high current 3A stepper motor, high-speed stability.
--XYZ axis travel limit switches are set up to avoid trouble during operation Super processes.
--Z-axis automatic tool function, multi-tool change machining to zero error.
Application of MINGDA 6040- high quality large wood carving machine
Mingda cnc router metal engraving machine mainly used in PVC, acrylic, double color boards, engineering plastic, bakelite, and other non-metallic materials solid wood engraving and milling, graphite electrode machining, is also suitable for carving PCB circuit board, wood mold model, and opening hole or carving for plastic boxes, aluminum alloy chassis, panel which is under limited size, also can be the low feed rate on aluminum, copper and other metal materials for three-dimensional carving and milling processing; it can also be used as a simple primary three-dimensional CNC table to use, such as the test laser engraving, CNC dispensing, CNC positioning, metal ( nameplate marking etc. ).

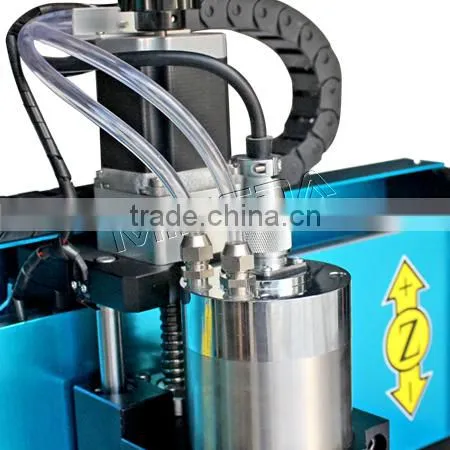

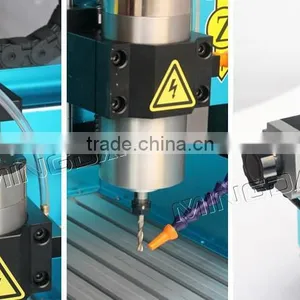

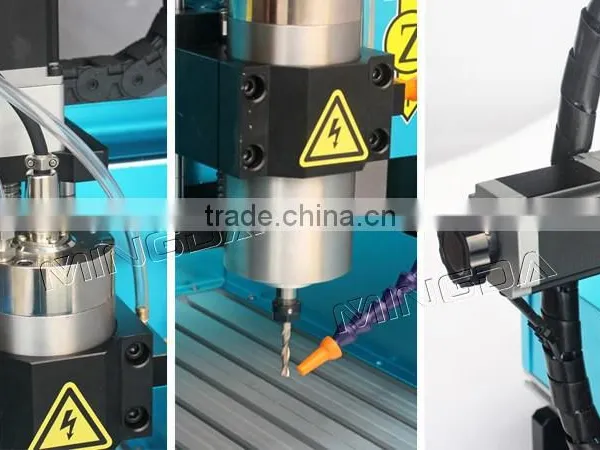

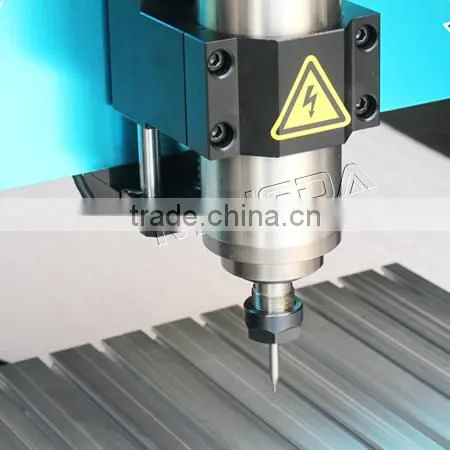

More pictures of the powerful water cooled spindle of MINGDA high quality large wood carving machine

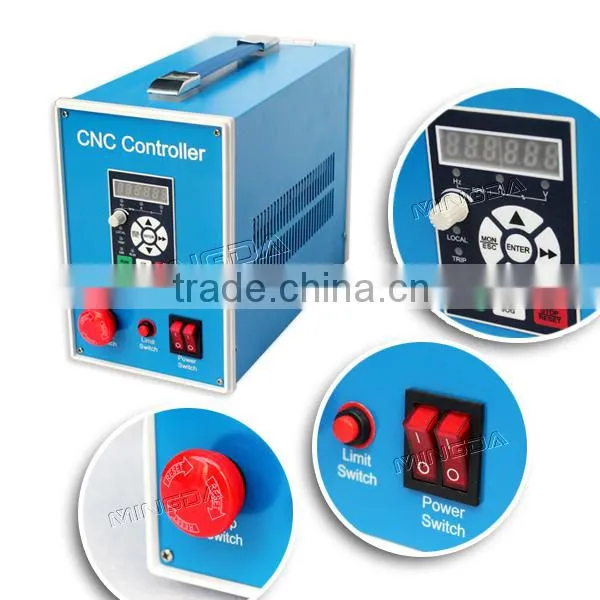

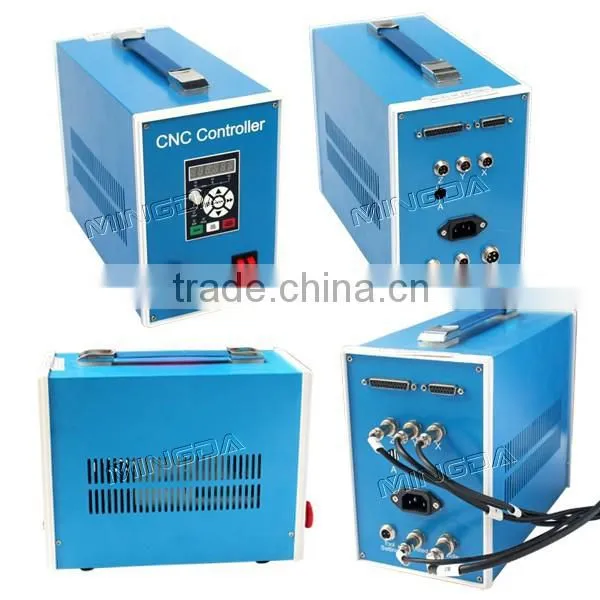

Controller connected with desktop computer of MINGDA high quality large wood carving machine

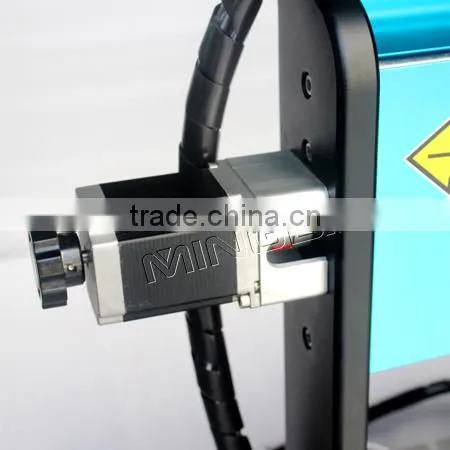

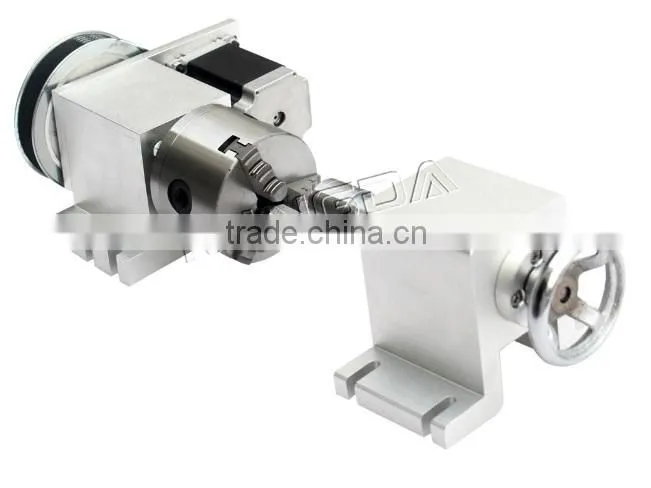

The 4 axis ----make MINGDA high quality large wood carving machine can carve round objects
wood carving machine Wood working cnc router
Specification of MINGDA high quality large wood carving machine
| Model | MINGDA CNC 6040 |
| Dimension | 900×650×590mm |
| X,Y,Z axis woking travel | 400x600x100mm |
| The Max thickness of Carved objects | 150mm |
| Rack material | 6061+6063 Aluminum alloy |
| Transmission unit | X ,Y,Z axis is 1605 T Screw |
| Sliding unit | X:Φ20,Y:Φ16,Z:Φ13 |
| water-cooled spindle | |
| Frequency converter | AC220V,1500W,0~400Hz(inside CNC controller) |
| Spindle Power | 200W/AC220, SCM stepless speed regulation |
| Speed (r/pm) | 0-24000 |
| Clamping diameter | 3.175mm |
| Cooling way | water cooled |
| max feeding speed (mm/min) | 3000 |
| Carving speed(mm/min) | 50~3000 |
| Carving accuracy | 0.03mm |
| Repositioning Accuracy(mm) | 0.02mm |
| Input voltage | 220V / 110V |
| Instruction format | G code (tap, nc, ncc, text) |
| Compatible software | Mach3/TYPE3/ArtCAM/CAD/CAM etc |
Remarks:
MINGDA have high quality large wood carving machine for different size and different spindle power, such as 3020(500w,800w), 3040(500w,800w,1500w), 6040(800w,1500w,2200w), 6090(800w,1500w,2200w), the larger spindle and the bigger size, the more objects and bigger work area the high quality large wood carving machine can handle.
Welcome you contact with us and find the most suitable one for you.
Engraving works for your appreciation by MINGDA high quality large wood carving machine
MINGDA high quality large wood carving machine ---Handle process:
Notes when install MINGDA wood carving machine
1.Assembling and locating the CNC machine on steady desk well.
2.Make sure that your computer has a on-board parallel port output.
3.Installing a CNC control software and Drive such as the MACH 3 on your computer.
4.Connecting the control box with the CNC machine and your computer.
5.Following our manual or guideline to set up the software.
6.You can enjoy making you dream with using our CNC machine now.
Packaging Details about MINGDA wood carving machine
Accessories that will ship together with the package
We can also all type of drilling and milling bits, and 4th/ 5th axis for this Wood working cnc router
Services of MINGDA high quality large wood carving machine
1. 24hr Online Customer service, please e-mail/QQ/skype us ( Please contact us anytime!)
2. Attend and hold Exhibitions, we attach great importance to promote the cnc router machine .
3. In many cases, we won't let shipping cost becomes a burden to you.
After-sales service of MINGDA high quality large wood carving machine
One year warranty and lifelong maintenance
During the warranty we will exchange the problematic parts for you freely, and we provide technical supports when you use this wonderful engraving machine!
Why choose MINGDA large wood carving machine ?
Shenzhen Mingda Technology Co., Ltd is the professional research and development professional research and development production of CNC engraving machine and cutting Machine. This machine is suitable for industry ,Technology Research, Advertising Design, Arts Creation, Building Model Making ,PCB, Teaching, Student Project and Hobby Purposes, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home. In addition, it can be upgraded to be installed a rotational axis.
Also it is suitable for various materials ,such as PCB,WOOD,PMMA or other plastic ,MDF board, native wood, PVC, Acrylic, metal, steel, solid wood, composite board plywood, stone. If you want to make sure this engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and we will test it for you.
Dear friend,
Please feel free to contact us if you are interested in our high quality large wood carving machine .
MINGDA cnc-6040 1500w cnc engraving machines with water-cooled spindle, wood carving machine
