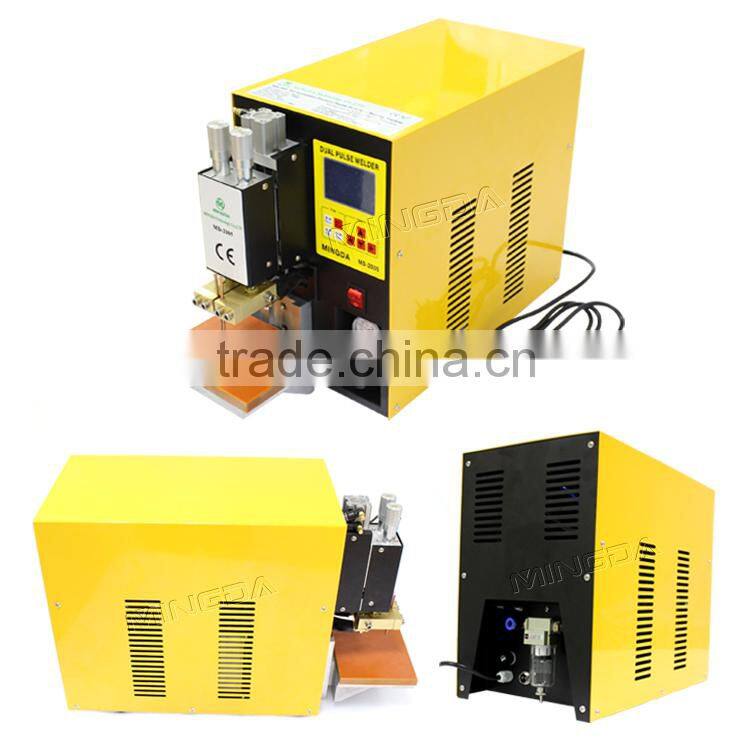

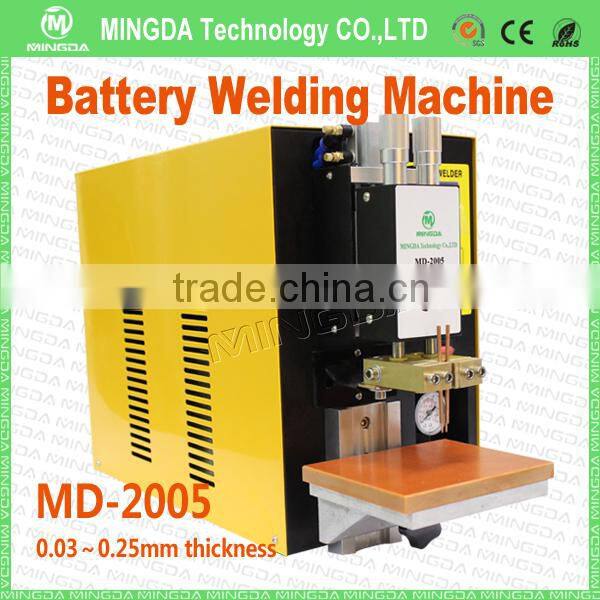

2016 new welding machine China factory , economic price spot welder for battery nickel
Technical Specification of dual pulse spot welder machinery equipment
No |
Item |
Specification |
1 |
Welding current |
2500A |
2 |
Control mode |
Foot switch control |
3 |
Secondary welding current |
2500A/3000A |
4 |
Welding energy |
0-100% adjustable |
5 |
Pulse control accuracy |
0.1ms |
6 |
Preweld pulse width |
0-2ms |
7 |
Welding pulse width |
0-4ms |
8 |
Max output power |
25KVA/30KVA |
9 |
Input voltage |
AC 220V±10% 50Hz±2Hz |
10 |
Wooden packing Weight |
45Kg |
11 |
Out dimension |
L400mm X W350mm X H360mm |
2016 new welding machine China factory , economic price spot welder for battery nickel
Feature of Dual pulse spot welder machinery equipment
1. High speed and high precision micro processor (MCU) control, provide highly stable repeat welding.
2. High speed welding: quick start with high speed polarity switch reduces the temperature effect so that keep the welding surface clean and beauty.
3. Polarity switching: inhibition asymmetric effect makes the two point weld strength uniform and extend the electrode life.
4. DC output: welding current is pulsating direct current (waveness is small), no AC zero discontinuous heating workpiece shortcomings, heat concentration and improve the welding thermal efficiency, it is especially suitable for welding the non-ferrous metal materials and some difficult welding materials, welding process is stable, welding quality improved significantly. At the same time, the electrode life get extended.
5. Fast response. Power on time control cycle is 1 ms , 20 times than 20ms of common AC battery welder

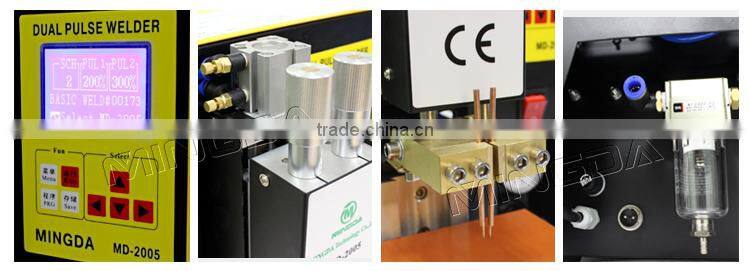

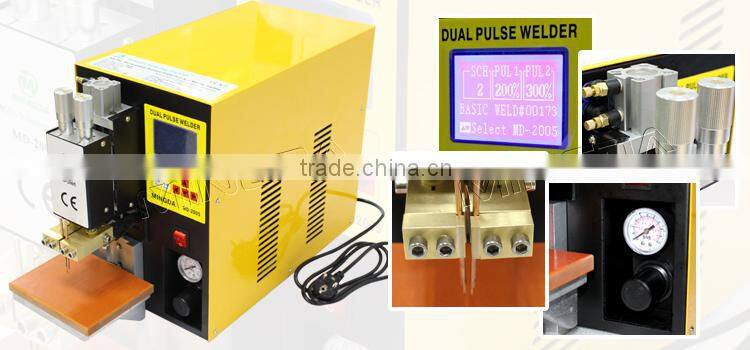

6. Blue 19264 LCD screen display, graphical display the current working status, friendly working interface, welding pulse graphic display function to improve the convenience debugging observation.
7. Compatible with mechanical and pneumatic welding head.
8. Double pulse reduce welding spatter, effectively improve the welding quality.
9. Two different welding methods (1) general spot welding; (2) continuous welding.
10. The built-in welding counter, can do all its solder joints.
11. Data storage using EEPROM, no battery life problem, each operation all returned to welding procedure of the last use .
12. Compatible have welding pressure switch of the welding head and no welding pressure switch of the welding head.
13. Preloading time and holding pressure time from 0 to 2.55 seconds continuous adjustable.
14. Discharge switch can use mechanical or photoelectric switch.
2016 new welding machine China factory , economic price spot welder for battery nickel
1. Once payment made , shipment will be made within 3 days

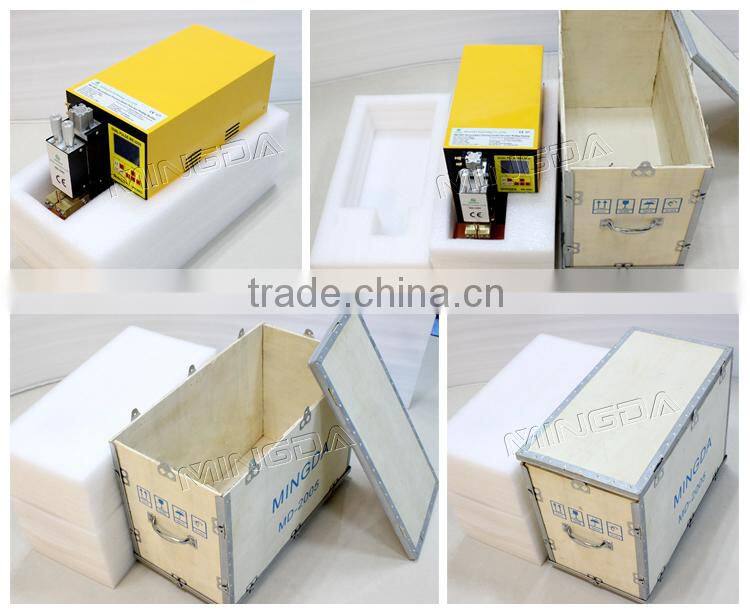

2. Standard wooden package with thick sponges
welding machine in welding machine in welding machine in welding machine in spot welding machine in spot welding machine
spot welding machine or spot welding machine or spot welding machine or spot welding machine or spot welding machine
About MINGDA

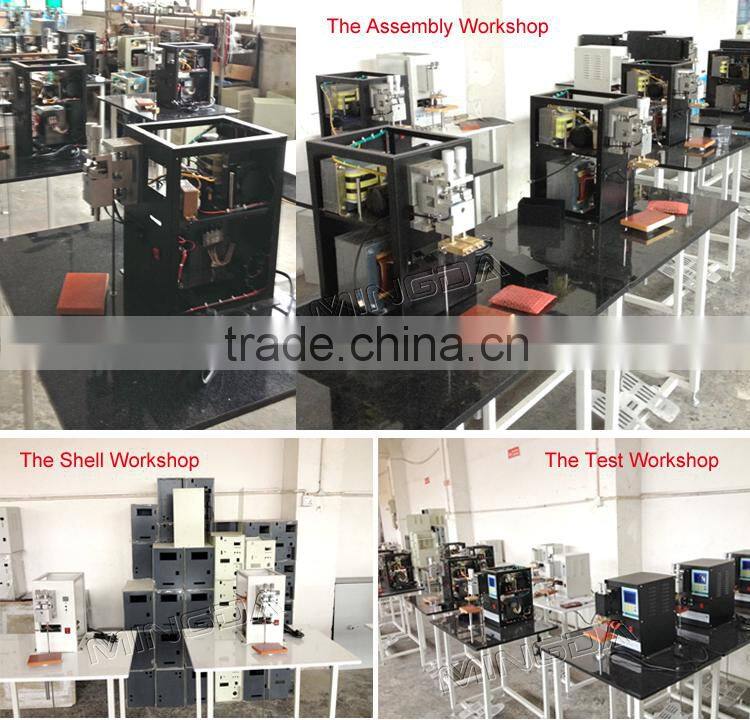

MINGDA is a professional supplier, which is specializing in research and manufacturing of Spot Welder Machine, and with rich export experience. Professional independent research and development, aimed at provide customers with quality products and best services. OEM and Customize service available.
Company Advantage
We have rich experience to promote and export products to all over the world.
We have a professional team to manage our all wholesale international business.
Our business principle is"Excellent Quality;Best Service;Competitive Price".
welding machine and welding machine and welding machine and welding machine and welding machine and welding machine and

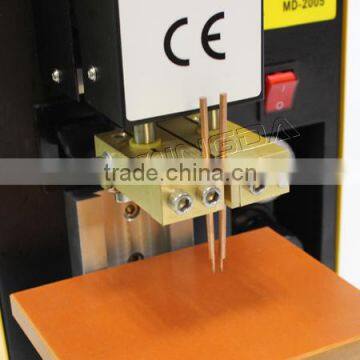

A. Height adjustment of Welding needles : loosing the height adjustment screw with a wrench. Then adjust or replace the length of needles exposed below the electrode(usually, it is about 15mm. It is easy to deform if it is too long) finally, tightening the screws
B. width adjustment of Electrode (needles) : loosing the width adjusting screw with a wrench, then adjust two electrodes so that two needles to appropriate distance. Last, tightening the screws.
C.Test: test whether there is coke on the needles or not., if so. you need to clear it with a file or abrasive paper. then using the right foot press pedals . When its head drop, stare the welding needles until the needle is on the welding point
D. Power: put plug into a 220V power socket, and turn on the power switch, indicator flashing, the welder is work. If working indicator does not shine or shine without flashing. turning off the power then turn on again.
E. In order to ensure good quality of welding, you should often adjust needles and keep it in a good condition.

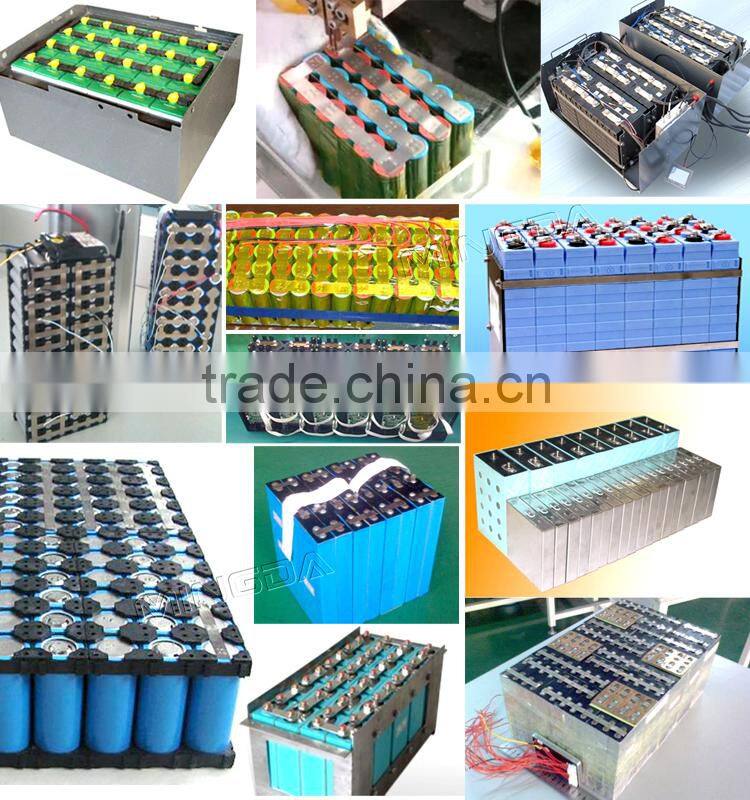

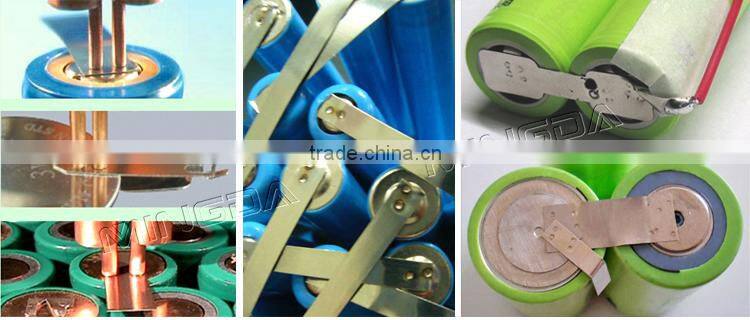

Application of Dual pulse spot welder machinery equipment
welding machine for welding machine for welding machine for welding machine for welding machine for welding machine for welding machine for welding machine or welding machine for welding machine for welding machine for welding machine for welding machine
welding machine or welding machine or welding machine or welding machine or welding machine or welding machine or welding machine or welding machine or welding machine or welding machine or welding machine or welding machine or welding machine
