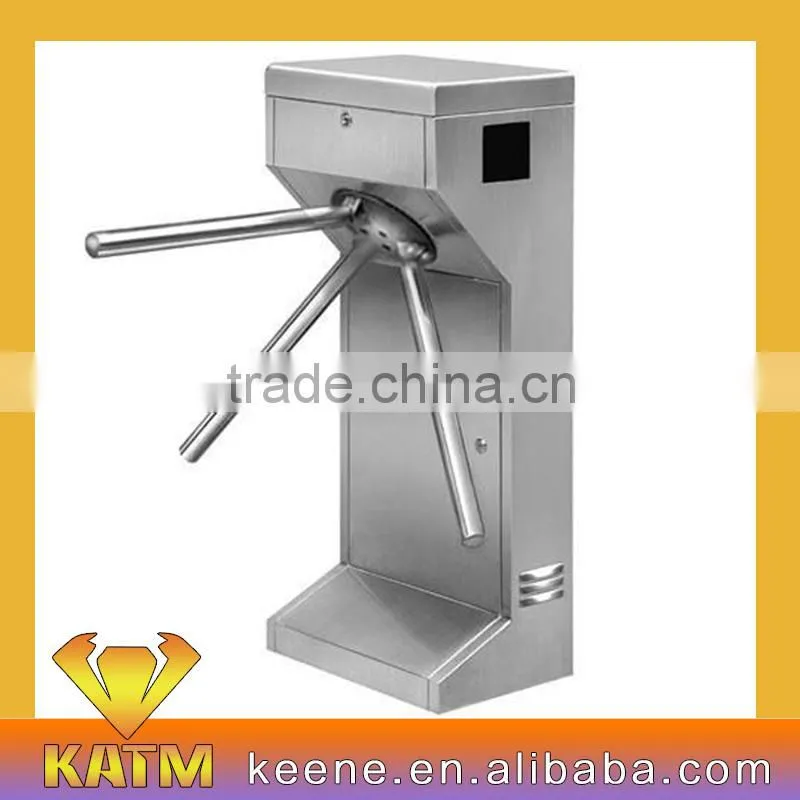

Help CenterAutomatic Tripod Turnstile With Stainless Steel Housing
Related Products
-
Semi Automatic Vertical Tripod Turnstile Bi-direction PasNegotiableMOQ: 1 Piece -
Intelligent Mechanical Tripod Turnstile With CE Approved Sale in Dubai MarketNegotiableMOQ: 1 Piece
-
Vertical CE Approved Electric Tripod Turnstile Gates In Stainless Steel PricesNegotiableMOQ: 1 Piece
-
Automatic Access Control Waist High Tripod Turnstiles GateNegotiableMOQ: 1 Piece
-
Efficient Pedestrian Entrance/exist Gate Flap Barrier Turnstile Gate With Resonable PriceNegotiableMOQ: 1 Piece
Main Features:
1 Stainless steel housing
2 Bi-direction pass
3 Arms auto drop when power off
4 Arms auto rise up when power on and auto stop on abstacle
5 Traffic light indicator
6 RFID interface
7 Photoelectric inspection
8 Passenger counter (optional)
9 If the passenger does not pass in the valid time, the passenger will be locked up again.. the valid passing time can be set up by operator
Specifications: .
Model |
GD214B |
Housing material |
304# stainless steel, corosion resistant |
Dimension |
420*330*980mm |
Channel width |
500--600 mm |
Lifetime |
3,000,000 times |
Control mode |
semi-automatic / hand movement |
Passage way |
one-way / bothway |
Working environments |
indoor / outdoor |
Power source |
AC220V |
Frequency |
50 Hz |
Working temperature |
-15°C—75°C |
Working humidity |
0~95%RH coagulation free |
Pass speed |
30 ≤ 40 persons/min |
Input interface |
COM switch signal |
Communication Connection |
RS485 |
railing-off against power off |
Yes |
Waterproof and Dustproof |
above IP32 |
Working noise |
less than 65 db |
Application:
he bridge ladder three roller gate is your ideal choice for entrance control and widely applied in:Community, school, bank, seabeach, shopping center and so on.
Other place:
1. Industrial zones
2. Administrative buildings
3. Recreation centers
4. Amusement parks
5. Financial institutions
6.Government agencies
7. Airports
8. Bus and railway stations
9. Offices.
