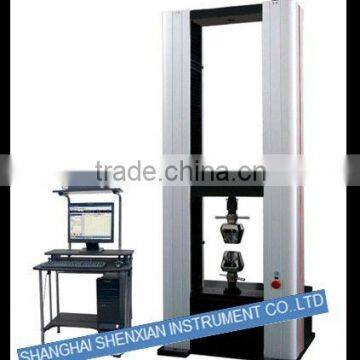

Export Quality LCD Universal Testing Machine

Export Quality LCD Universal Testing Machine thumbnail-1
Export Quality LCD Universal Testing Machine photo-1
US$ 10,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
SX
Model Number:
SXWDS-20
Contact Supplier Request Quote Chat Now
Shanghai Shenxian Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port or other port in china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name SX
Model Number SXWDS-20
Power Hydraulic
Usage Other, Compression Testing Machine, do compression , tensile and flexure test

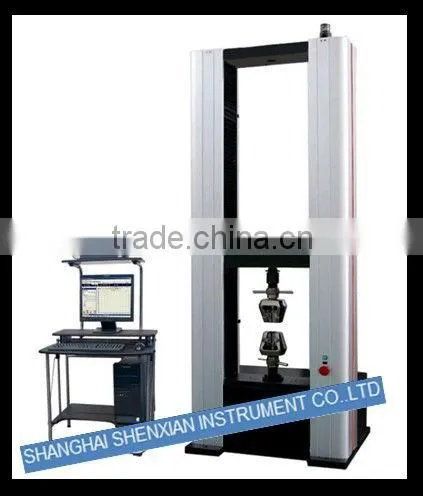

  LCD  Universal Testing Machine



Main advantages :

1)  Using door frame structure, with nice appearance ;



2) Using AC speed regulation system to drive precise ball screw assembly to make tests and

    realize adjustment to test speed in a large range, with stable and efficient test procedure;

3)  If equipped with proper accessories, it can be used to make tensile, compression, bending, peeling

     tests for wood-based panel, plastic-alumnium panel, paper, PVC, tubes, etc., with flexible and complete

    set of accessories;

4)  Using LCD digital display control system to display load, peak, test speed, displacement at real time,

      easy to operate;

5)   Adjustment of moving speed of specimen installation, flexibly, freely switching;

6)   With function of automatically returning to original position, efficiently and quickly;

7)    With functions of limit position protection of any working position and overload protection, reliable, safe.



Specifications:



1 . Max. load capacity: 20KN

2.  Load class: Class 1

3   Measuring range of load 0.4%-100%

4   Relative error of indicating value Within measuring rang 1%-100% , ±0.5%

5   Load resolution 1/±300000F.S

6   Min. reading of deformation : 0.01mm

7   Adjusting range of displacement rate : 0.2-500mm/min

8   Effective test space (W*H) : 400*800mm

9   Effective compression space : 700mm

10   Loading mode : Electrically loading

11   Control mode :Automatically control through mini controller

12 : Power 220V±10%, 50Hz

13   Motor power : 400w



Packing details



   Dimension:  740*450*1600mm  (L*W*H)

   N.W. About 400kg
