Specifications
high quality aluminium strip1. Strong mechanical properties;
2. Excellent corrosion resistance;
3. High and homogeneous heat
high quality & factory price of 5052 corrosion resistance aluminium strip coil for voltage transformer
Features:
1.Superior quality of raw material;
2.Reasonable and stable chemical composition.;
3.Accurate tolerance;
4.Good mechanical property.;
5.We have the certificate of ISO9001:2008.;
6.We provide free sample service.
7.The products can be made according to your requirement.
TOLERANCE | |||||
Major Brand |
5052 5754 |
||||
Thickness |
0.2-0.4 |
0.4-0.8 |
0.9-1.1 |
1.2-1.6 |
1.8-2.0 |
tolerance |
±0.01 |
±0.015 |
±0.02 |
±0.025 |
±0.03 |
Width |
<100 |
100-200 |
201-500 |
501-1250 |
>1250 |
tolerance |
±0.1 |
±0.2 |
±0.2 |
±1 |
±2 |
BURR AND COLLAPSE | |||||
The width of aluminum belt |
burr’s height |
collapsed side’s height |
|||
<0.2 |
0.01 |
≥0.05-0.1 |
|||
0.2-1.0 |
0.015 |
||||
1.1-1.5 |
0.02 |
||||
>1.6 |
0.03 |
||||
MECHANICAL PROPERTY | |||||
U.T.S: 60-95N/mm2 |
Elongation: >25% |
||||
Density in 20°C :2.703kg/dm3 |
Max.resistance in 20°C:≤0.02825Ωmm2/m |
||||
Aluminium strip |
|
|||||||
Alloy |
Thickness(mm) |
Width(mm) |
Temper |
DC or CC |
||||
| 5052 5754 | 0.15-2.0 |
300-1500 |
O,H12,H22,H14,H24,H16,H26,H18,H32 |
DC, CC |
||||
2.0-350 |
900-2200 |
H112,H111 |
DC |
|||||
|

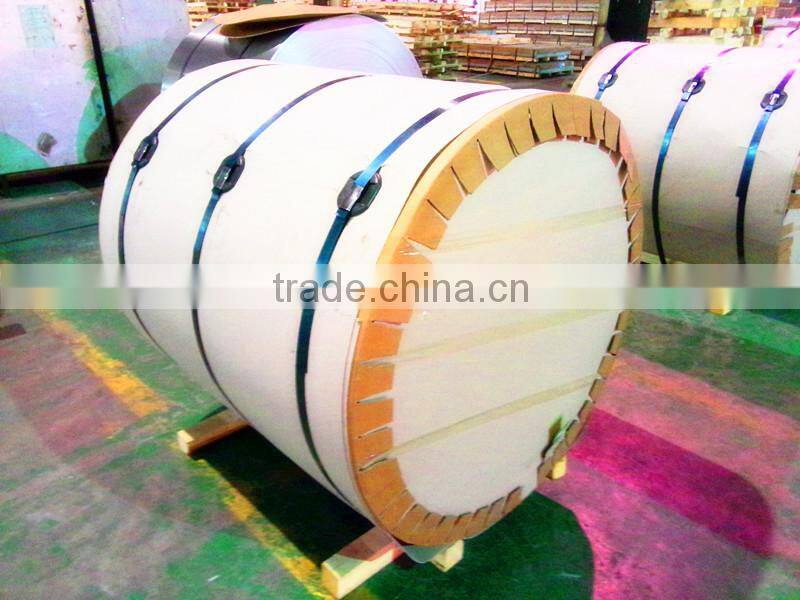

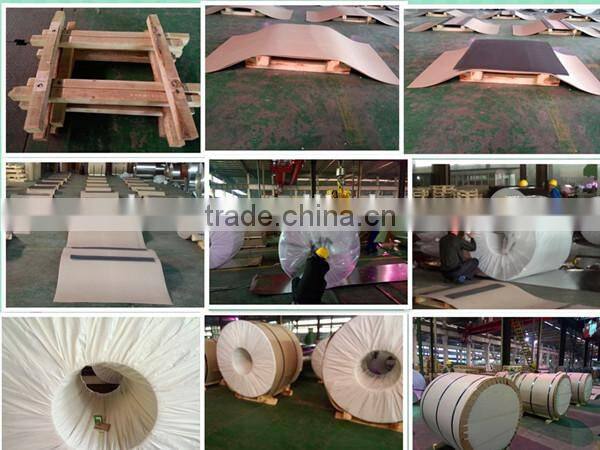

Package |
Export standard wooden pallets package |
|
|
||||
Application |
Electric conductor, flexible hose,Instrument, storage, PS plate, heat Exchanger; Instruction Decoration Material,pressure tank,Roof Panel,sanitary fixture. |
|||||||
MOQ |
5MT |
|||||||
Attention |
Specifications can be customized as the customer’s requirements. |
|||||||

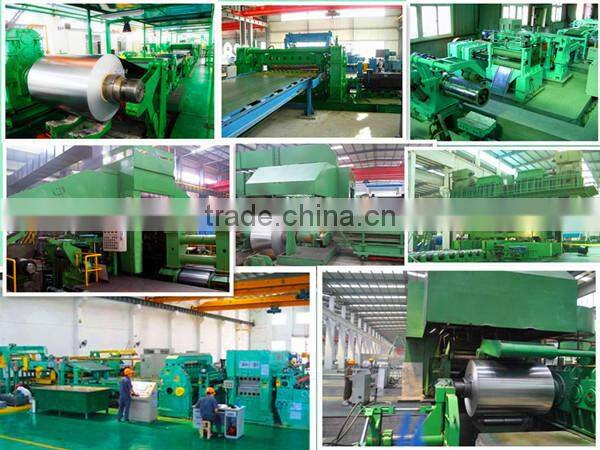

Company profile & products details
Henan Winow Import & Export Company is the foreign trade department in Zhengzhou of Henan
Wanda Aluminum Co., Ltd , which specializes in aluminum sheet, coil, foil, etc. With 12 years
experience of super wide width & hot rolled aluminum plate producers.
7 Contact
fax: + 86 371 55157727 tel: + 86 371 55029808
skype:wilson.dong6
Any questions, please feel free to contact me directly!
Q: What kinds of alloy can you supply?
A: 1000 series: 1050, 1060, 1070,1100,,1235
3000 series: 3003, 3004, 3105
5000 series: 5052, 5083, 5754,5182
6000 series: 6061, 6063
8000 series: 8011, 8021
Q: What kinds of temper can you supply?
A: O-H112: O,H12,H14,H16,H18,H22,H24,H26,H,32,H34,H111,H112
T3 T4 T6
Q: What kinds of specification can you supply?
A: We can supply followed specifications:
Aluminum sheet: Thickness :0.15-350mm width; under 2200mm length : under 12000mm
Aluminum coil: Thickness :0.5-150mm width; under 2200mm length : C
Aluminum foil: Thickness :0.008-0.2mm width; under 1500mm length : C
Embossed aluminum sheet: Thickness :1.0-8.0mm width; under 1900mm length : under 12000mm
Checked aluminum sheet: Thickness :1.0-8.0mm width; under 1900mm length : under 12000mm
