Specifications
1.Corrosion-resistant and wear-resisting ceramic painted plunger and viton o-ring and washer2.high pressure,low temperature
this power sprayer piston pump have dvatanges as below:
From PP-22 to PP-80 series and metallic,red,green colour paint pump to select to meet diferent demands
- Scientific design of simple and strong structure ,high pressure,low temperature rising,big flow rate.

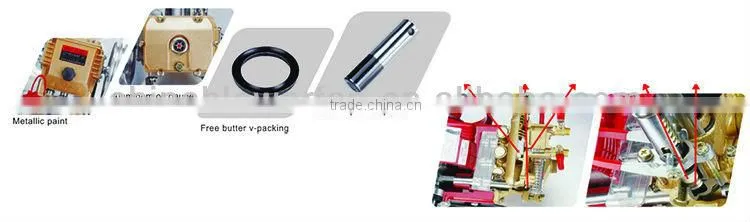

- Corrosion-resistant and wear-resisting ceramic painted plunger and viton o-ring and washer pump for long-term use
- Professional manufacturer of the better quality
Application:
Usually for:mating the different sprayer for plant protection, chemical weed control,exoroot fertilization ,insect&pest control,livestock breeding disinfection,health&antiepidemic and washer,etc.
Model |
PP22A/22B/22C/22AC |
PP28A/28C |
PP30A/30AC/30C2/30A1/30C1 |
PP45A/45AC |
PP50A/50C/50H |
PP70A/70H |
PP80A |
Plunger QTY(PCS) ×Stroke(mm) |
3×22×16 |
3×28×20 |
3×30×20 |
3×30×18 |
3×28×26/30 |
3×32×26/32 |
3×32×32 |
Pressure(Mpa) |
2.0-3.5 |
2.0-3.5 |
2.0-3.5 |
2.0-3.5 |
2.0-3.5 |
2.0-3.5 |
2.0-3.5 |
Suction(L/min) |
14-22 |
29-37 |
30/30-40 |
19.5-34 |
43-66 |
65-98 |
56-68 |
Rotational Speed(R.P.M) |
800-1200 |
800-1000 |
800-1000 |
520-900 |
800-1000 |
800-1200 |
800-1200 |
Mating Power(HP) |
1.5-2.0 |
3.0-5.0 |
3.0-5.0 |
3.0-5.0 |
5.0-6.0 |
5.0-7.5 |
5.0-7.5 |
Net Weight(kg) |
10.0/10.5 |
11.5 |
12.0 |
13.5 |
14.0 |
21.5/23.0 |
22.0 |
Package Size(cm) |
36.5×29×36.5 |
42.5×30.5×38 |
42.5×30.5×38 |
42.5×30.5×38 |
43.0×31.5×39/43 |
46×33×44/42 |
46×33×44 |
