Specifications
1.15 17 19 22 32 42 inch lcd tft monitor 12v with hdmi input
2..Good quality and cheap price.
3.Professional security grade cctv monitor

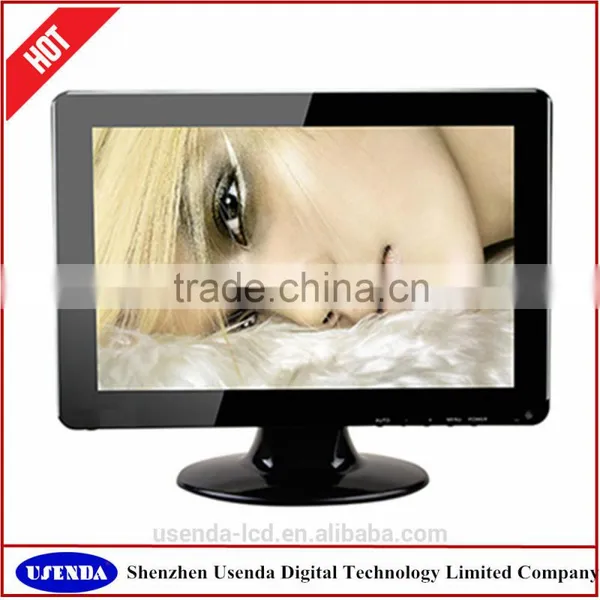

26 inch TFT FHD portable cctv lcd monitor tester
Large LCD monitor series
1. The ultrathin super light narrow frame design, easy to use, beautiful appearance
2. Use A + professional industrial LCD screen
3. 5 ms fast response time, the picture really no trailing
4. Has the VGA state image reproduction rate automatic adjustment function
5. Using the latest 3 d digital comb filter and 3 d digital noise reduction technology
6. Intelligent temperature control fan design, environmental protection mute
7. Equipped with sensitive infrared receiving device, can remote control monitor each parameter
8. With automatic eliminate ghost function, protect the long-term use of liquid crystal screen
9. 178 ° wide Angle of view, display scale 16:9
10. 12 c bus latest control circuit, the stable performance
Model No. |
UD-PCM26A |
Panel size |
26" TFT-LCD |
Display area(mm)/mode |
575.6(W)×325.6(H) 16:9 |
Maximum resolution |
1366×768 |
Display color |
16.7M |
Pixel Pitch(mm) |
0.1405(H)×0.4215(V) |
Brightness (nits) |
500cd/m2 |
Contrast |
'1500:1 |
Visual angle |
178°/178° |
Response time |
5ms |
Horizontal frequency |
30-75KHZ |
Vertical frequency |
56-75KHZ |
Life(hrs) |
60,000(hrs) |

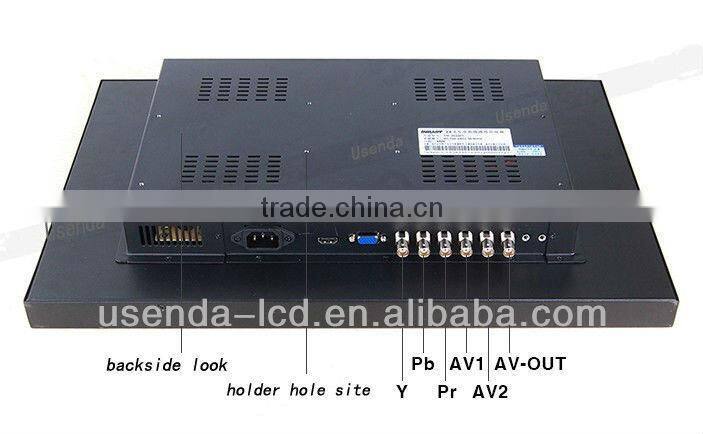

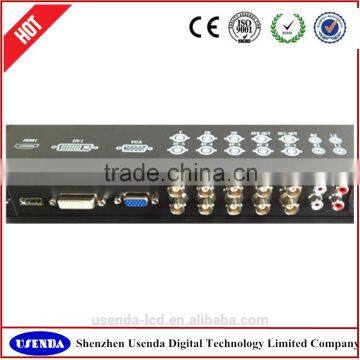

Input and output | |
Composite video input |
3 (BNC×3) |
YPbPr input |
1 (BNC×3) |
S-video-Y/C input |
2 (BNCx2) |
VGA |
1 |
HDMI |
1 |
DVI |
1 |
Composite video output |
2 (BNC×2) |
Video | |
Color system |
PAL/NTSC/SECAM |
Compatible HDMI/DVI input |
480P,576P,720P,1080I,1080P |
3D Comb filter |
Yes |
Video reduction noise |
Yes |
OSD display( screen menu display) | |
Menu language |
Chinese/English |
Power | |
Power supply |
AC100V~240V,50/60Hz |
Maximum power consumption |
<=80W |
Standby power consumption |
<=3W |
Temperature | |
Working temperature |
0°C~50°C |
Storage temperature |
-20°C~60°C |
Working humidity |
10%~90% |
Storage humidity |
10%~90% |

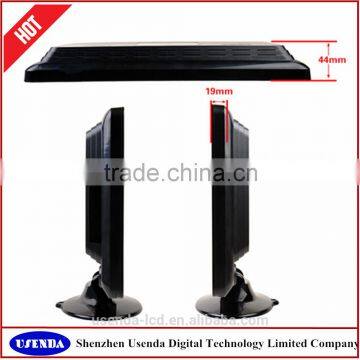

Appearance | |
Body dimension(Lx W x H)mm |
639.6×393.0×110mm |
Panel color/appearance |
White,black,customized |
Case Material |
Metal |
Net weight |
15kg |
Installation |
Wall-mounted, desktop(optional) |

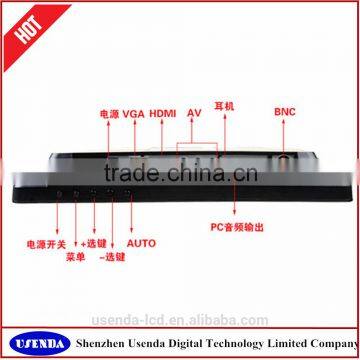

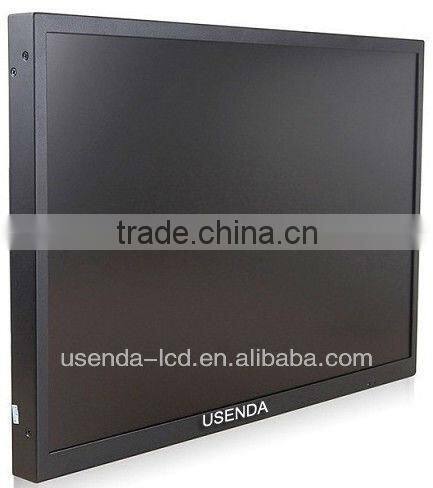

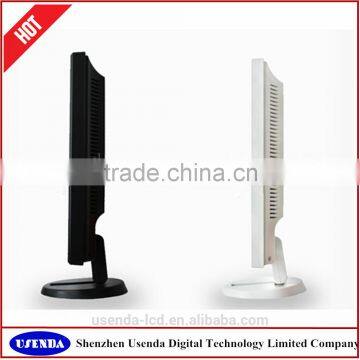

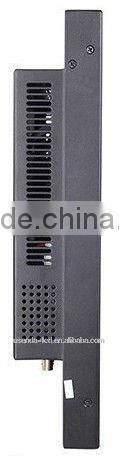

Product showing | |
|
| |
Product Application:
Shenzhen Usenda Digital Technology Limited Company, also named Tanda Int'l Electronics Limited, is a high-tech enterprise integrating the research and development, production and sales. We are engaged in LCD screens, LCD monitors, advertising players, all-in-one PCs, DID video wall products, etc. Products of our own brand are widely used in highways, railways, civil aviation scheduling command centers, army command centers, oil fields, factories, mines, electric powers, water conservancies, prisons, border defenses, banks, ...
1.Payment: T/T , 35% deposits before production, 65% balance to be paid before dleiverying (Western Union or Moneygram are welcomed)
2.Production lead time for 10~50pcs: 20days, 50~100pcs:35days
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, HK
6.Discounts are offered based on order quantities
7.MOQ:1pc

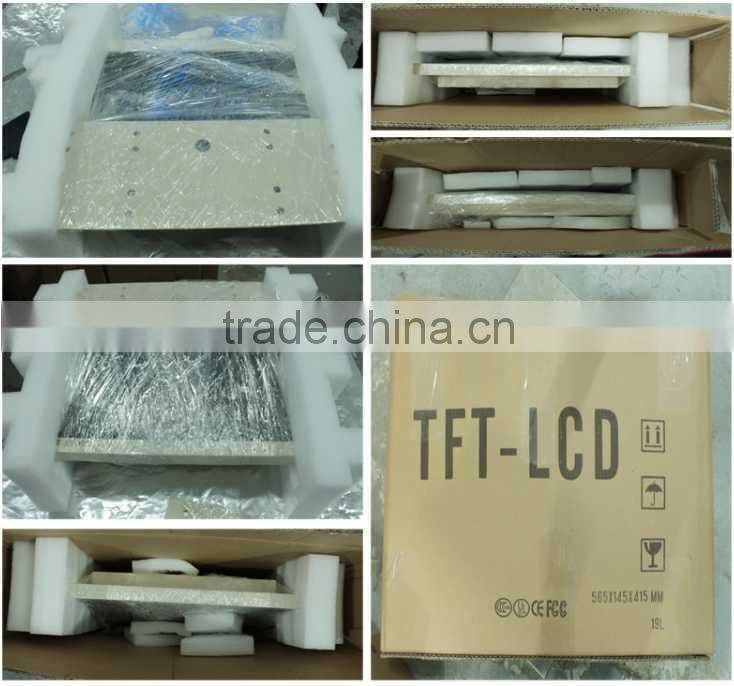

Package
