55 inch lcd cctv sruveillance security monitor for business commercial use
Detailed specification:
| Model No. | UD-55A |
| Panel size | 55″TFT-LCD/LED |
| Housing | Iphone Design |
| Dimensions | 1299.8*766*119.7mm |
| Body Material | Metal case SPCC |
| Display area(mm) | 1210(W)×682(H) 16:9 |
| Maximum resolution | 1920×1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.531(H)×0.531 (V) |
| Brightness (nits) | 700cd/m2 |
| Contrast | 2000:1 |

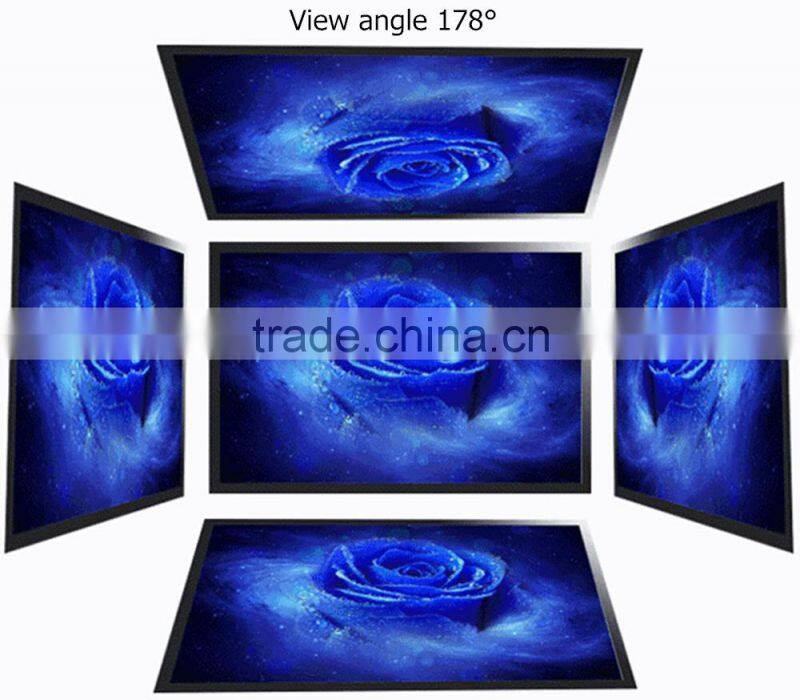

| Visual angle | 178°/178° |
| Response time | 5ms |
| Life(hrs) | >60,000(hrs) |
| Horizontal frequency | 30-75KHZ |
| Vertical frequency | 56-75KHZ |
| Life(hrs) | >60,000(hrs) |
| Input and output | |
| Composite video input | 3 (BNC×2) |
| Y,Pb,Pr/Y,Cb,Cr input | 3 (BNC×3) |
| S-video-Y/C input | 2(BNCx2) |
| D-15 pin RGB input | 1 |
| HDMI | 1 |
| DVI | 1 |
| Composite video output | 2 (BNC×1) |
| Audio | Left (RAC*2) ; Right (RAC*2) |
| Video | |
| Color system | PAL/NTSC/SECAM |
| Compatible HDMI input/DVI | 480P,576P,720P,1080I,1080P |
| 3D Comb filter | Yes |
| Video reduction noise | Yes |
| Menu language | Chinese/English( multiple language option required) |
| Power | |
| Power supply | AC100V~240V,50/60Hz |
| Maximum power consumption | 52W |
| Standby power consumption | 3W |
| Temperature | |
| Working temperature | 0°C~50°C |
| Storage temperature | -20°C~60°C |
| Working humidity | 60% |
| Storage humidity | 60% |
| Appearance | |
| Panel/appearance | White, black, customized |
| Panel material | Metalc casing |
| Installation | wall-mounted, desktop (optional) |
Features:
1) High definition,high resolution
2) High brightness
3) Interface type:VGA,DVI and HDMI connected analog signal and digital high-definition signal
4) Equipped with sensitive infrared receiving device, can remote control monitor each parameter
5) With automatic eliminate ghost function, protect the long-term use of liquid crystal screen
6) Continuous boot for 7*24 hours,deserve to trust
7) Support 365 days non-stop boot,the backlight life is up to 60,000 hours
8) Modular design according to customer demand(M*N) .
9) Professional security grade cctv monitor

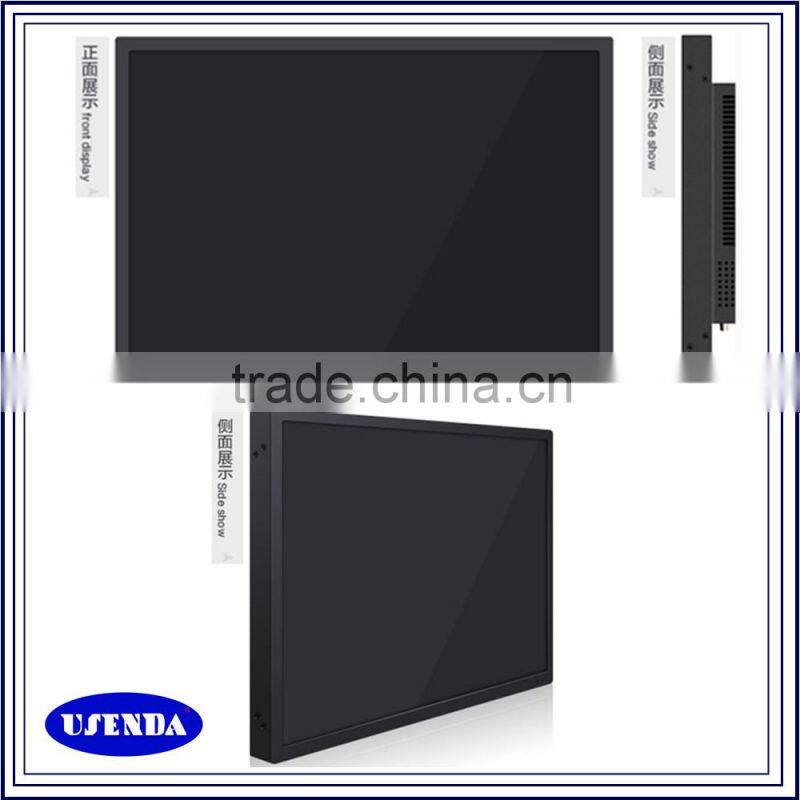

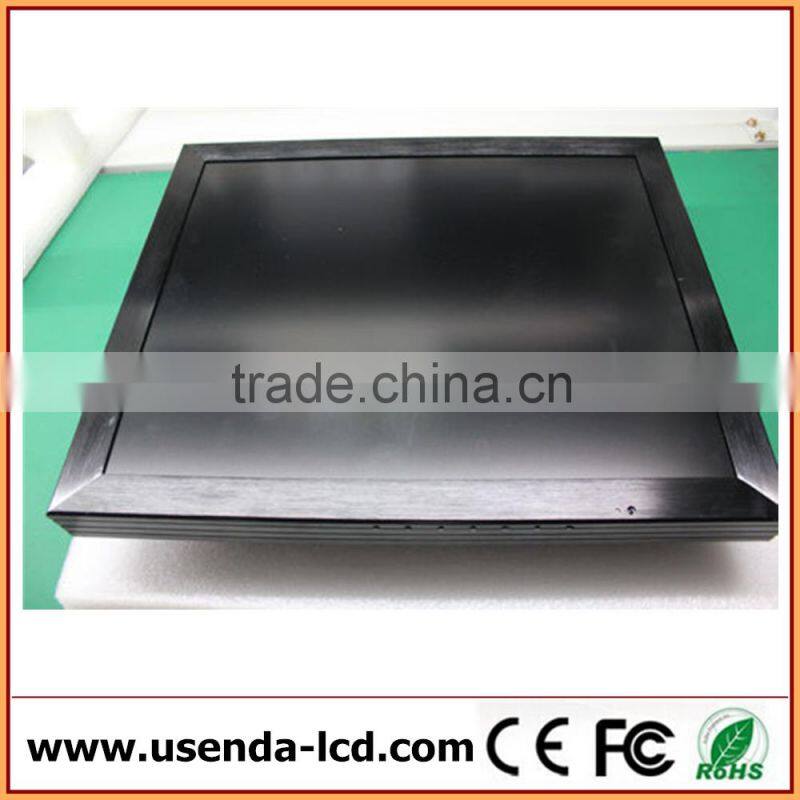

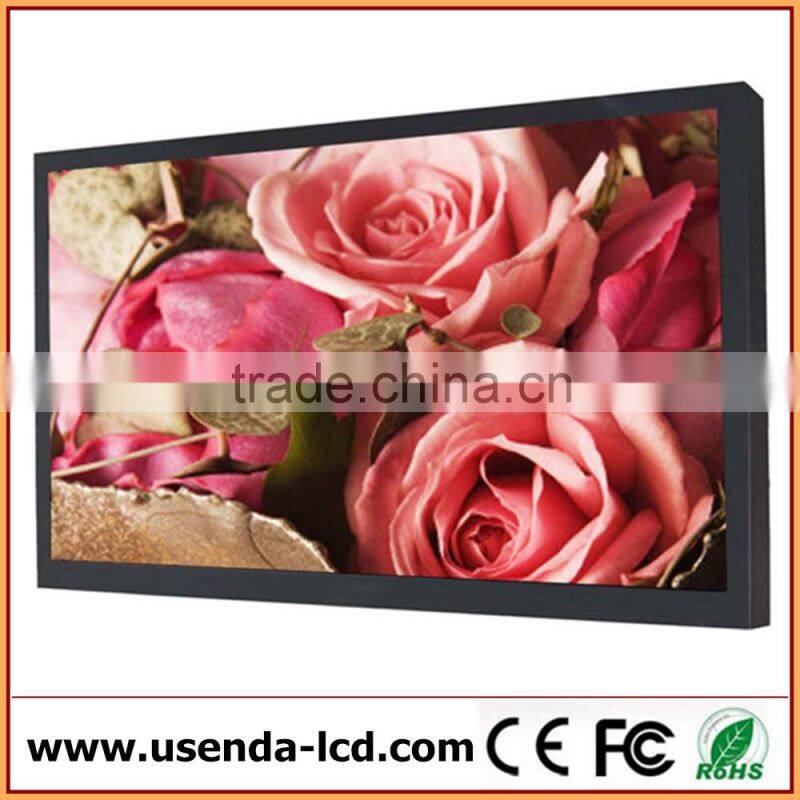

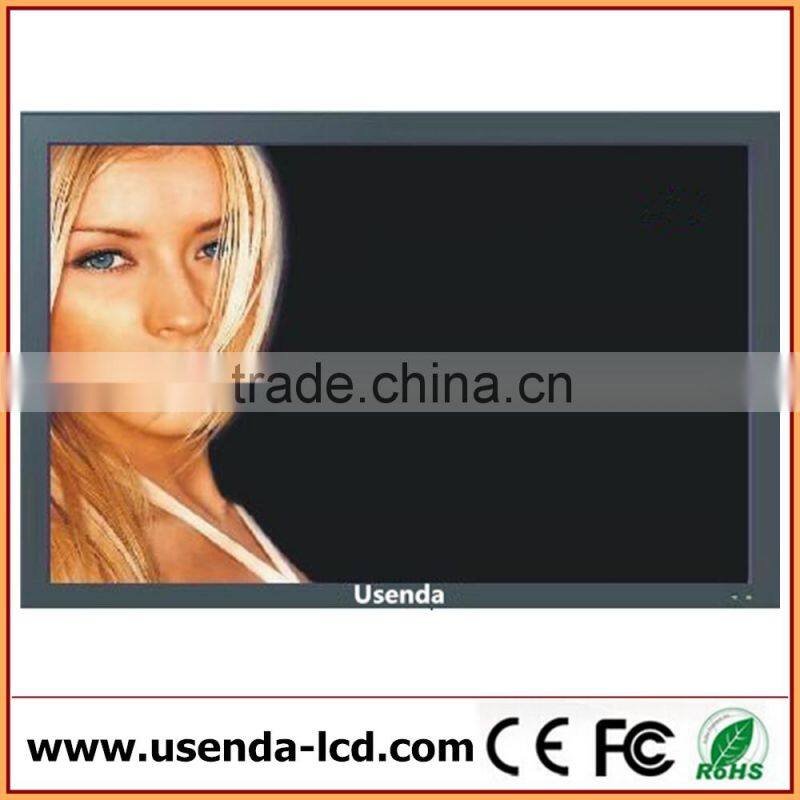

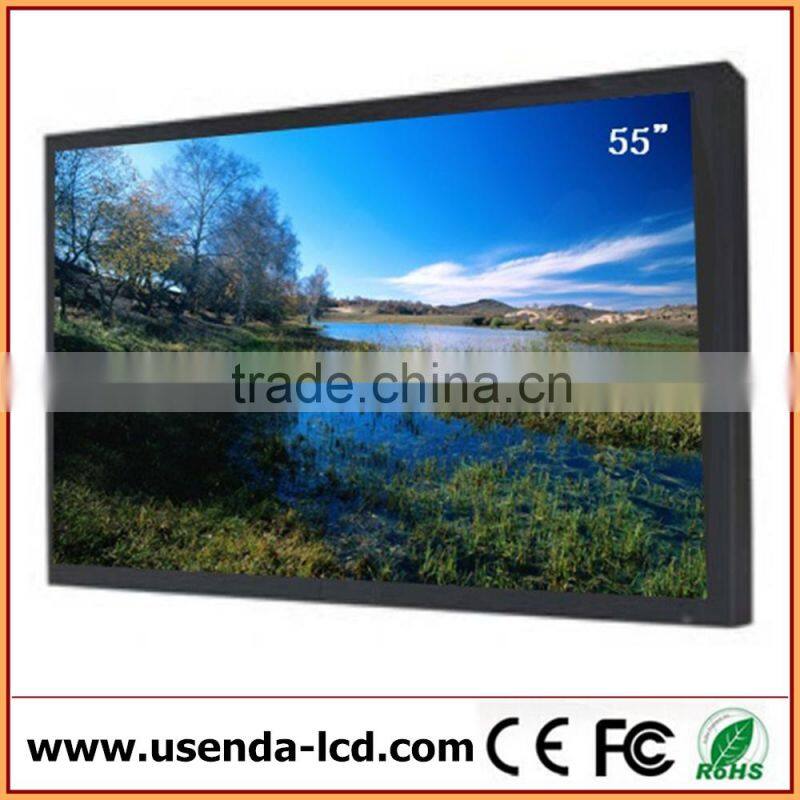

Product shows:

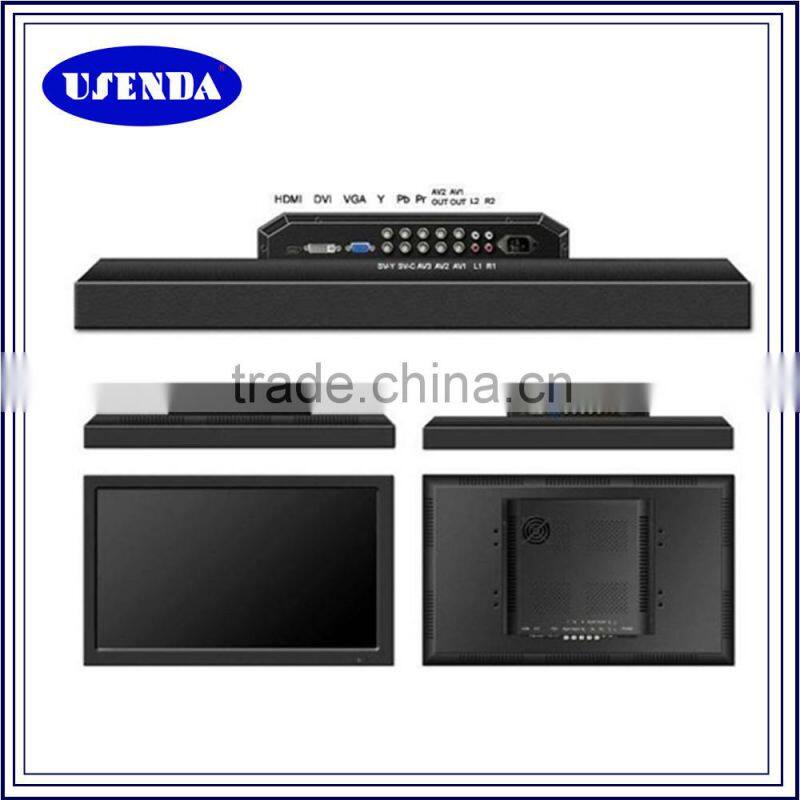

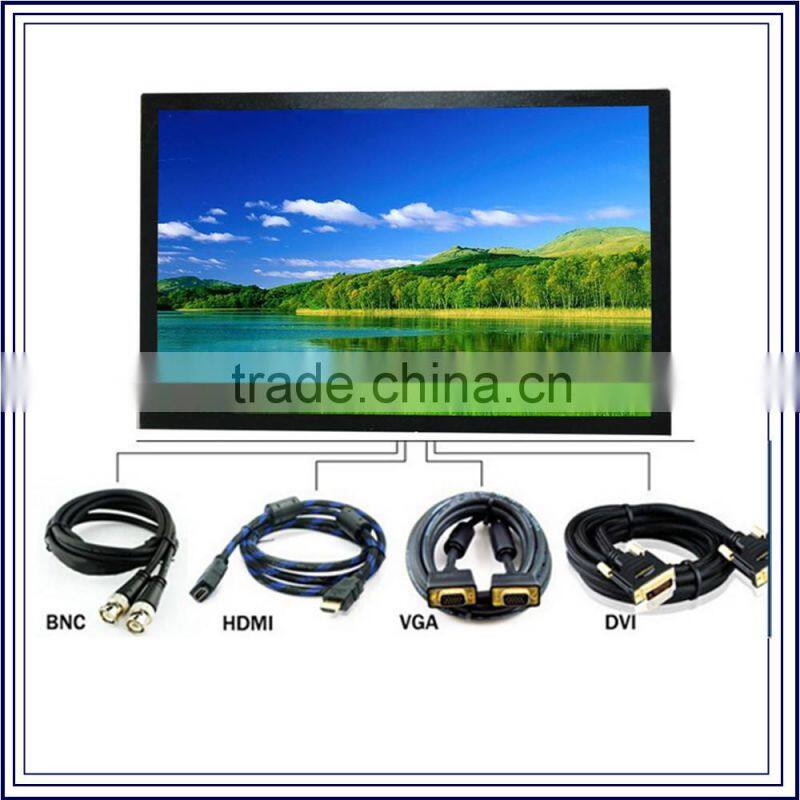

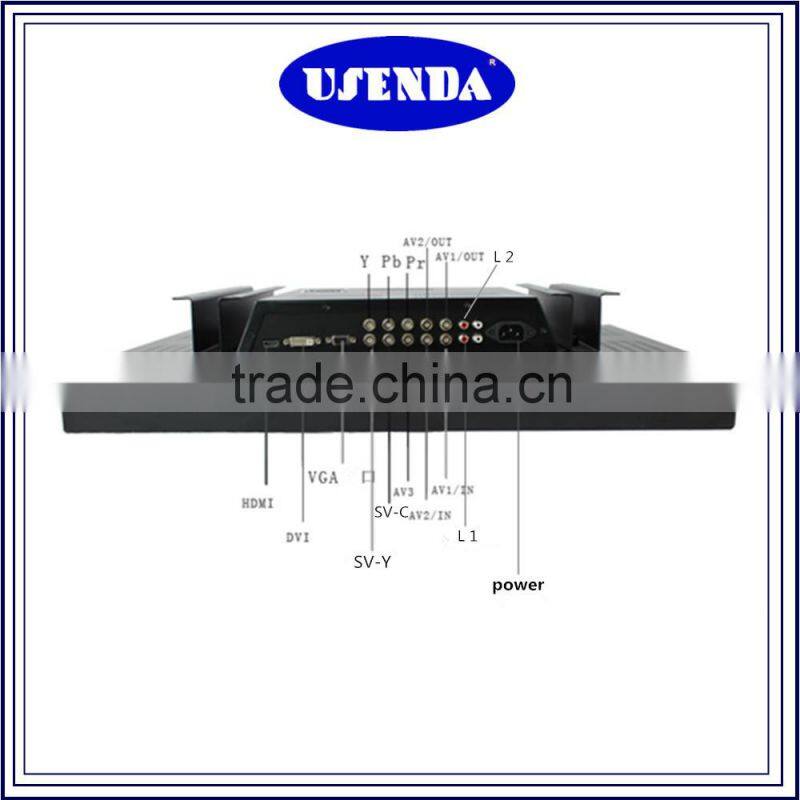

Signal Interface:

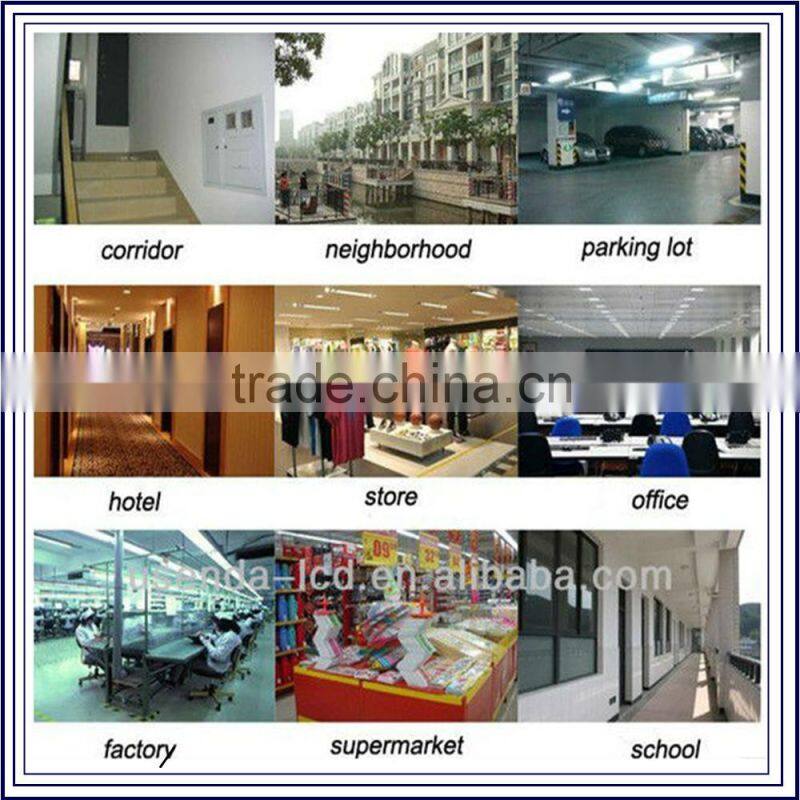

Application:
Company Information:
Certifications:
Our service:
1) Own factory,direct sale.
2) Offer best quality with best price.
3) Customized requirement is available, OEM&ODM are welcome.
4) Trail order is welcome to us
5) Reply your inquiry in 24 working hours.
6) Experienced staffs answer all your questions in fluent English.
7) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
AFTER-SALES SERVICES
Terrific after-sales service:24 hours around the clock &12 months Warranty
Life-long maintenance service for the product
Trade Term:
1.Payment: T/T , 35% deposits before production, 65% balance to be paid before delivery (Western Union or T/T are welcome)
2.Production lead time for 10~50pcs: 20days, 50~100pcs:35days
3.Sample can be delivered in 3 days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, HK
6.Discounts are offered based on order quantities
7.MOQ:1pc
Before we offer you best quotation, we'd to confirm some details if you don't mind:
1. What's the size of screen, cabinet you prefer?
2. What's the best viewing distance with your project?
3. What's the color of cabinet you need? Any logo on back of cabinet?
4. When do you need to get goods? Is this urgent?
5. Any special requests? Such as video processor,hanging bar,flight case for package? Please advise it as well.
Notes:
1. The unit price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our products or prices will be replied in 18hrs. My Skype: usenda-lcd2
3. Well-trained and experienced staffs to answer all your enquires in fluent English.
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
Contact Info:
Skype:usenda-lcd2
Tel:0755-36965657
Welcome to enquire!
