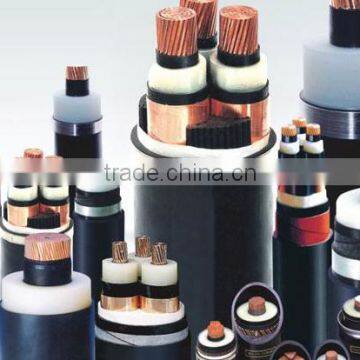

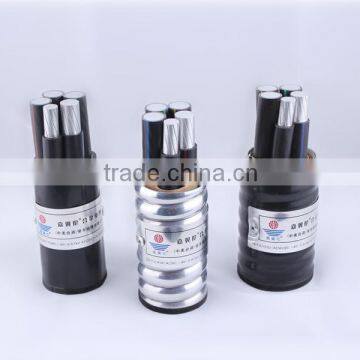

Help Center1KV,10KV,24KV,36KV XLPE Insulated LV MV Power Cable
Related Products
-
1KV,10KV,24KV,36KV XLPE Insulated Power CableUS$ 1.98 - 5.98MOQ: 200 Meters -
1KV,10KV,24KV,36KV XLPE Insulated AAAC MV CableUS$ 1.98 - 5.98MOQ: 200 Meters
-
1KV,10KV,24KV,36KV XLPE Insulated LV MV HV Power CableUS$ 1.98 - 5.98MOQ: 200 Meters
-
0.6/1 kV XLPE Insulated Steel Wire Armored Power CableUS$ 0.1 - 100MOQ: 100 Meters
-
PVC Insulated Power CableUS$ 0.1 - 1MOQ: 500 Meters
1. Standard:IEC, ASTM,BS,CNS(GB),DIN and AS/NZS or other standards as request.
2. Rated Voltage:Low Voltage
3. Construction:
Conductor:Copper or Aluminium
Insulation:PVC or XLPE
Inner sheath:PVC
Armoured:Galvanized steel tape or galvanized steel wire
Outer Sheath:PVC or PE
4. Characters:
a.Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C
b.Installing temperature of cable should not be less than 0°C
c.Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec.
d.Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
e.Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flamer retardant.
5. Description & Application:
PVC Insulation Electric Cable
TYPE |
Description of Cable |
Main Applications |
|
CU core |
AL core |
|
|
VV |
VLV |
Copper/Aluminium core,PVC insulated,PVC sheathed power cable |
Non-armoured PVC cable are suited for laying indoors,In cable trench,On cable racks and in pipes. Unable bear external pressures and tensions. |
VY |
VLY |
Copper/Aluminium core,PVC insulated,PE sheathed power cable |
|
VV22 |
VLV22 |
Copper/Aluminium core,PVC insulated,steel tape armored,PVC sheathed power cable |
Steel-tape armoured PVC cables are suited for vertical burial.Can bear moderate positive pressures,Unable bear tension forces. |
VV23 |
VLV23 |
Copper/Aluminium core,PVC insulated,steel tape armored,PE sheathed power cable |
|
VV32 |
VLV32 |
Copper/Aluminium core,PVC insulated,thin steel wire armored,PVC sheathed power cable |
Thin steel wire armoured PVC cables are used in case of great difference of levels or vertical installation and Can do vertical burial.Can bear moderate positive pressures and tension forces. |
VV33 |
VLV33 |
Copper/Aluminium core,PVC insulated,thin steel wire armored,PE sheathed power cable |
|
VV42 |
VLV42 |
Copper/Aluminium core,PVC insulated,thick steel wire armored,PVC sheathed power cable |
Thick steel wire armoured PVC cables are suited for vertical installation and can be laid water or sea-bottom.Can bear greater positive pressures and tension forces. |
VV43 |
VLV43 |
Copper/Aluminium core,PVC insulated,thick steel wire armored,PE sheathed power cable |
|
XLPE Insulated electric cable
TYPE |
NAME |
|
CU core |
AL core |
|
YJV/YJY |
YJLV/YJLY |
XLPE insulated,PVC/PE sheathed power cable |
YJV22/YJV23 |
YJLV22/YJLV23 |
XLPE insulated,steel tape armored,PVC/PE sheathed power cable |
YJV32/YJV33 |
YJLV32/YJLV33 |
XLPE insulated,thin steel wire armored,PVC/PE sheathed power cable |
YJV42/YJV43 |
YJLV42/YJLV43 |
XLPE insulated,thick steel wire armored,PVC/PE sheathed power cable |
NO. Of Cores
Rated voltage: 600/1000V
Nominal thickness of insulation: XLPE 0.7mm-2.0mm(1.5mm2-400mm2)
Thickness of sheath:
Diameter of conductor
Approx. Overall diameter: 11.4mm-6.5mm
Max cable weight:
Nominal cross sectional area of conductor etc.
All above can do as every different standards OR as your special request
Located in Cangzhou City Hebei Province, China.
Founded in 1996 and specialized in Wires & Cables manufacturing.We mainly produce AAC,
AAAC, ACSR, PVC Insulated Cables, XLPE Insulated Cables, Aerial Bundled Cables (ABC), Control Cables, Rubber Cables and Flame-retardant & Fire-resistive series Cables etc.
We have ISO9001:2008 and CCC certification and can produce cables & wires according to the
standards of CNS (GB), IEC, ASTM, BS, DIN and ASTM etc. Besides, we can also produce and
supply cables as per customer's requirements and drawings.
