Home > Products > pre-painted steel > Hot selling colour coated sheet /prepainted steel coil /ppgi coil with high quality

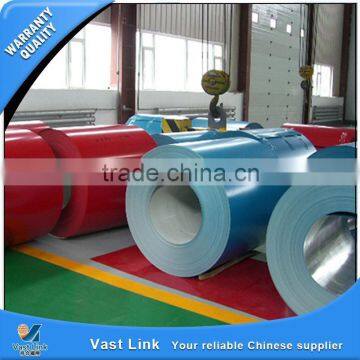

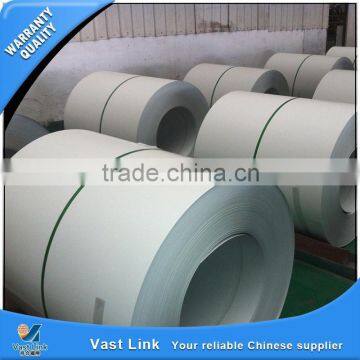

Hot selling colour coated sheet /prepainted steel coil /ppgi coil with high quality
- 8000000 Ton / Tons per Month
- Shanghai port
- T/T
Product Details
Place of Origin: | China | Brand Name: | VAST LINK | Model Number: | VLK-prepainting ppgi steel coils |
Material: | Galvanized Sheet |
Product Description
1) Name: Hot selling colour coated sheet /prepainted steel coil /ppgi coil with high quality
2) Standard: JIS G3302, JIS G3312, ASTM A653M/A924M 1998
3) Grade: Q195-Q235 and SPCC, SPCD, SPCE, SGCC (DX51D+Z) SGCD (DX52D+Z), etc.
4) Thickness: 0.23mm-2.0mm
5) Zinc coating weight: 60-275g/m2
6) Width: 600mm-1200mm, or according to the customer's request.
7) Coil ID: 508mm-610mm
8) Coil Weight: according to the customer's request
9) Color: RAL, or other series
10) Surface protection: PE, PVDF, SMP, HDP, etc.
11) Surface treatment: chromate, oil/unoil, bright finish, spangle, anti-finger print
12) Min trial order: 25 ton each size, 1x20' per delivery
Thickness | Width | Coil ID | Zinc Coating |
0.2mm-2.0mm | 600mm-1250mm | 508mm/610mm | 60g/m2-275g/m2 |
Coating Chief Feature
Project | Pencil hardness | Reverse impact | T bending | Cupping test | MEK cleaning |
Front/back | ≥ H/2H | ≥ 9J/6J | ≤ 3T/5T | ≥ 6mm/4mm | ≥ 100time/50time |
Structure of GI/prepainting ppgi steel coils
Item | Thickness | Type | Feature |
Laminated film | 50μm | Polyethylene | Protecting from scratchs and contamination (option) |
Top coat | 20μm | Polyester Fluorine | Chemical resistance and formability |
Primer coat | 5μm | Polyester | Workability, corrosion resistance and adhesion to the primer coating |
Chemical treatment | 1μm | Chromate | Good adhesion and corrosion resistance |
Substrate | 0.2mm-1.2mm | GI.GL,AL | GI.GL,AL |
Back coat |
5±2μm |
Epoxy | Corrosion resistance and adhesion to the substrate |
Founded in 1996, VAST LINK INTERNATIONAL CO., LIMITED is a modern business group conglomerating steel production, trade, storage and processing, and logistics and distribution. Our headquarters is at the Zhabei District of Shanghai, and we have our own sales and service branch in Busan, South Korea.
Besides, Vast Link is a large-scale distributor in Shanghai, and have a large indoor storage and processing warehouse in Baoshan District of Shanghai where there are above 3,000 tons of cold rolled products stock all year round; at the same time, we provide customers with such services as shearing, slitting , packaging and etc.
