Specifications
New design stainless steel railing flange made in China1Rich export exprience2Quick and exact offer
New design stainless steel railing flange made in ChinaHigh quality RTJ flange forging China suppliers
Standards: ANSI, BS, DIN, JIS and MSS etc.
Materials: Carbon steel, Stainless steel and Alloy steel etc.
Size: 1/2" ~ 64"(DN15 ~ 1600 )
Type: Slip-On, Welding Neck, Blind, Socket Welding, Threaded, Lap Joint and Plate etc.
Pressure Ratings: Class 150, 300, 600, 900, 1500 and 2500
Pressure Ratings: PN 6, PN 10, PN16, PN25, PN40 and PN64
Pressure Ratings: JIS 5K, 10K, 16K and 20K
I
Product |
Flanges (ASTM, JIS, DIN, ANSI) forged carbon steel flange, forged flange,weld neck flange, slip on flange , plate flange , blind flange |
||
Standard |
ANSI B16.5 ,ASME B16.47 ,DIN,JIS,GB,BS etc... |
||
Material |
Carbon steel,stainless steel ,alloy steel etc^ |
||
Size |
1/2"-48" |
||
Pressure Rating |
ANSI:Class 75, Class 150, Class 300, Class 600, Class 900, Class 1500, Class 2500 |
||
Surface treatment |
Anti-rust oil,Transparent oil ,Zinc Galvanized or as customer's special requirement |
||
Packaging Details |
Wooden cases,wooden pallet plastic bag or as customer's special requirement |
||
Delivery time |
15-30 days after conformed or according to customers requirement |
||
1 |
STANDARD (FORGED FLANGE) |
ASME /ANSI B16.5 |
|
2 |
TYPE |
SLIP-ON, WELD NECK, BLIND, THREADED, SOCKET |
|
3 |
CLASS(LB) |
150, 300, 400, 600, 900, 1500, 2500 |
|
4 |
SIZE |
1/2 -24inch(DN10-600) |
|
5 |
MATERIAL |
STAINLESS STEEL: F304, F304L, F316L, SS304 |
|
6 |
SURFACE TREATMENT |
Solution Treatment, Anti-rust Oil; |
|
7 |
PACKING |
PLYWOOD CASE |
|
8 |
PAYMENT |
T/T, B/L |
|
9 |
DELIVERY TIME |
15-30DAYS AFTER RECEIVING PAYMENT |
|
II
1 |
STANDARD (FORGED FLANGE) |
BS4504 |
2 |
TYPE |
PLATE, SLIP-ON, WELD NECK, THREADED, BLIND |
3 |
SIZE |
DN10-2000: PL, WN, BL; DN10-600: SO; DN10-1000: TH |
4 |
MATERIAL |
STAINLESS STEEL: F304, F304L, F316, F316L, SS304 |
5 |
SURFACE TREATMENT |
Solution Treatment, Anti-rust Oil; |
6 |
PACKING |
PLYWOOD CASE |
7 |
PAYMENT |
T/T, B/L |
8 |
DELIVERY TIME |
15-30DAYS AFTER RECEIVING PAYMENT |
9 |
PRESSURE |
PN2.5, PN6.0, PN10.0, PN16.0, PN25.0, PN40.0 |
Materials: Carbon Steel, Alloy Steel, Stainless steel.
Size: 1/8" NB TO 48"NB.
Rating: 150#, 300#, 400#, 600#, 900#, 1500#, 2500#.
Standard: ANSI, DIN, BS.

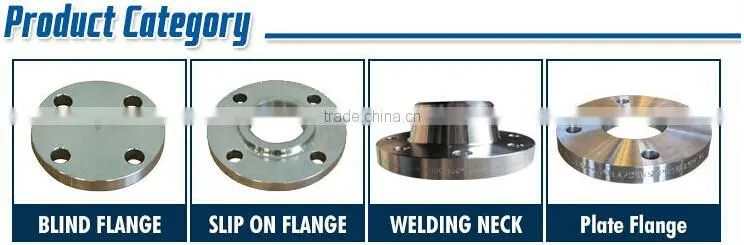

Blind Flanges
Blind flanges are sometimes supplied with NPT fittings which allow pressure test connections to be fitted.
They are used to blank off the ends of pipe.
They are also used to blank off the ends of valves and pressure vessel opening.
Considering factors like internal pressure and bolt loading, blind flanges, especially in the larger sizes, are the most highly stressed of all types of flanges.
Since the maximum stresses in a blind flange are bending stresses at the center, they can safely be allowed to be higher than in other types of flanges.
Reducing Flanges
Reducing flanges are designed for use in changing diameters in a piping system. A reducing flange comprises a flange with one specified diameter having a bore of a different and smaller, diameter. Except for the bore and hub dimensions, the reducing flange will have dimensions of the larger pipe size. These flanges are used at the outlet side of the expansion joint to increase the size of the flange. This is considered to be an economical method to make a transition in size.
Materials: Carbon Steel, Stainless Steel Grades, Duplex Steel.
Size: 0.5"NB TO 48"NB.
Slip-on Flanges
The slip-on flanges have a low hub because the pipe slips into the flange prior to welding. It is welded both inside and out to provide sufficient strength and prevent leakage. They are ideal for low pressure applications.
Weld Neck Flanges
Weld Neck Flanges are confined to special applications. Their chief merit lies in the fact that they can be assembled without welding this explains their use in extremely high pressure services, particularly at or near atmospheric temperature, when alloy steel is essential for strength and where the necessary post weld heat treatment is impractical.

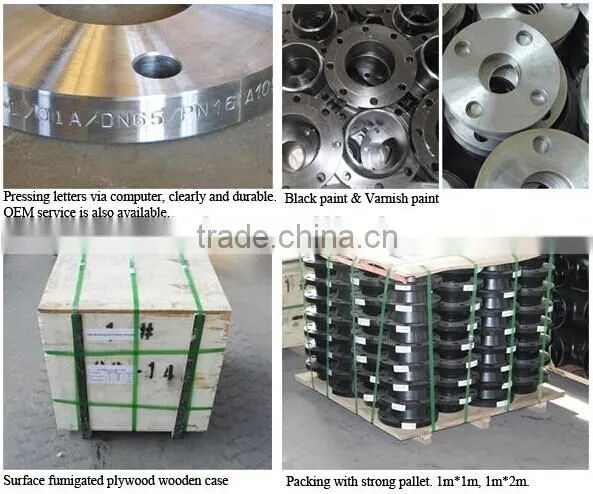

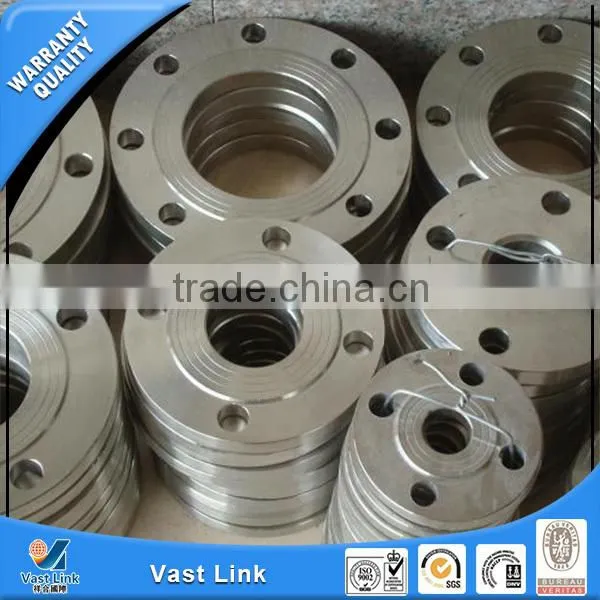

Finished Products Show

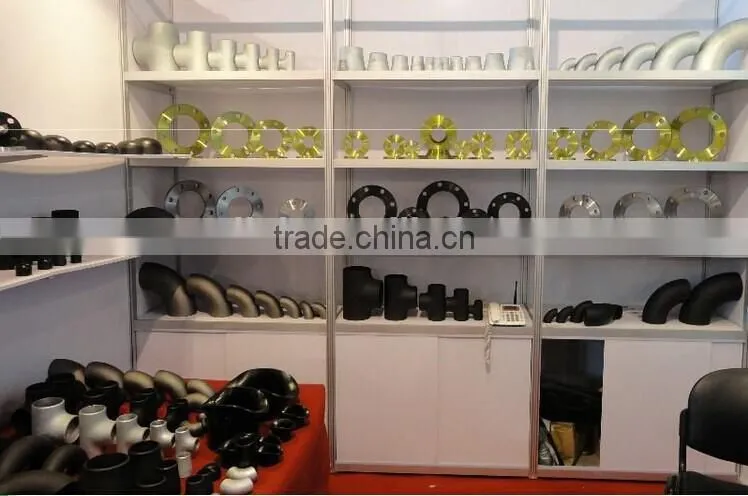

Display Sheft

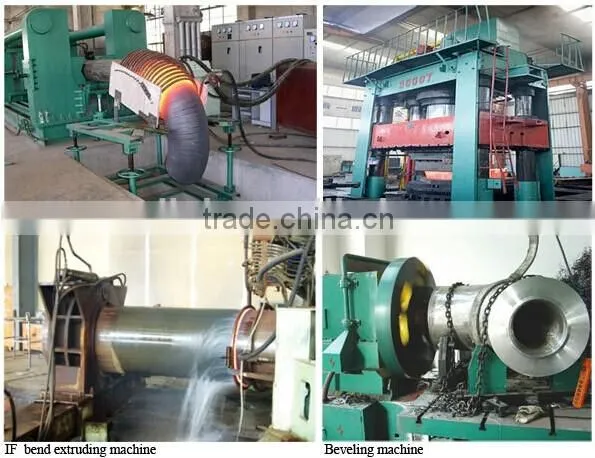

Production Line
Vast Link always insists on introducing advanced technologies and large-scale equipment to enhance
industrial level and competence, continuously working for supply and innovation of product

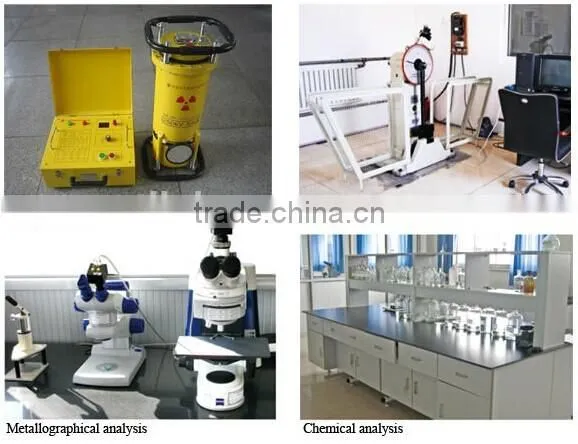

Quality Testing
Quality testing before shipping is necessary, Vast Link has its own P&C Lab and Testing Workshop.
Stock Show:

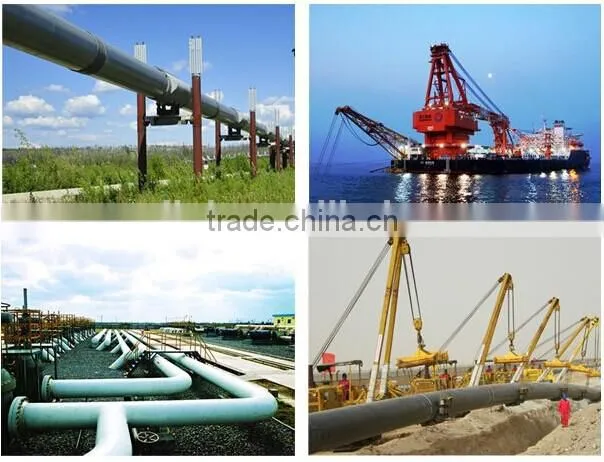

Application
Our pipes and fittings are widely used for water processing, power shipbuilding, petrochemical
industries, food, beverage and pharmaceutical, etc
Certificate

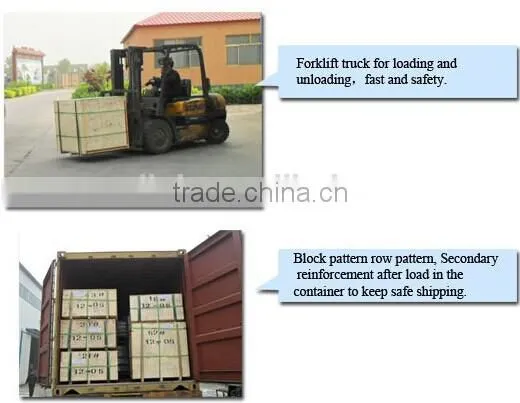

Loading & Shipping
Our Market
