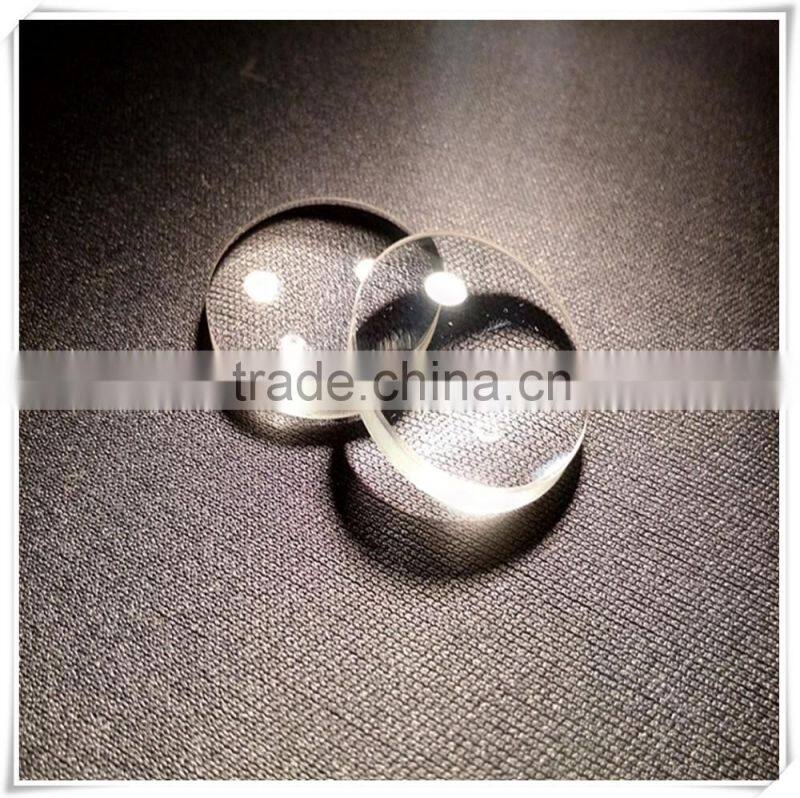

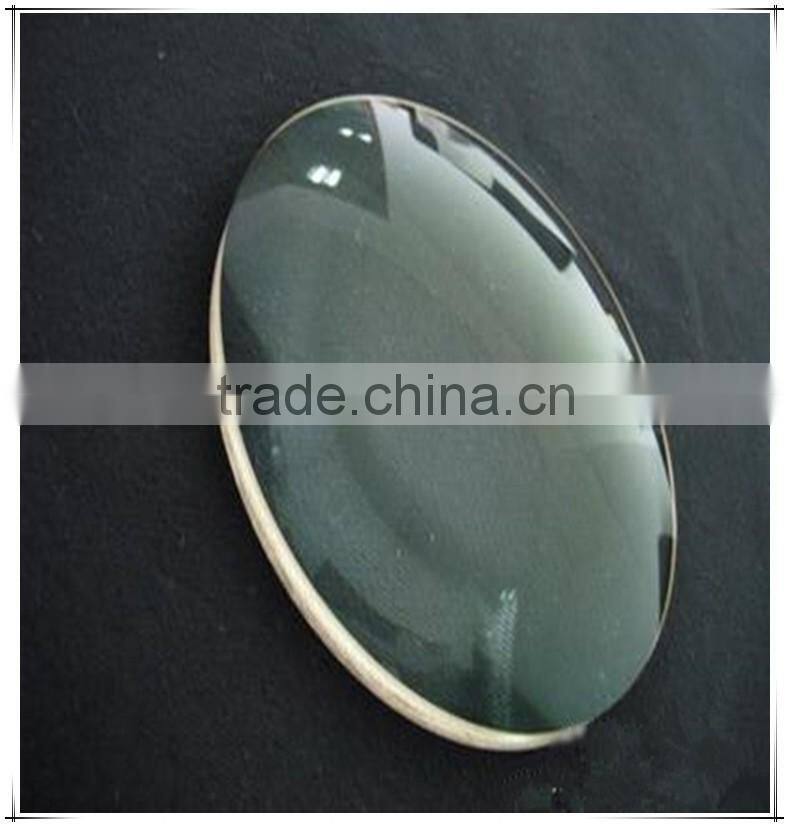

CaF2 Spherical Plano convex optical lens
- 20000 Piece / Pieces per Month
- Beijing Tianjin
- T/T L/C D/P D/A Credit Card PayPal
- CaF2 Spherical Plano concave optical lens
- CaF2 optical lens manufacturer,double convex lens,crystal glasses lens
- CaF2 Spherical double concave optical lenses
- CaF2 Spherical Meniscus optical lenses
- Calcium Fluoride large glass cylinder, optical lens blanks
- calcium fluoride bulk, cylindrical lens, plano convex lens
Product Details
Place of Origin: | Hebei, China | Brand Name: | ICC | Model Number: | Customization |
Product Description

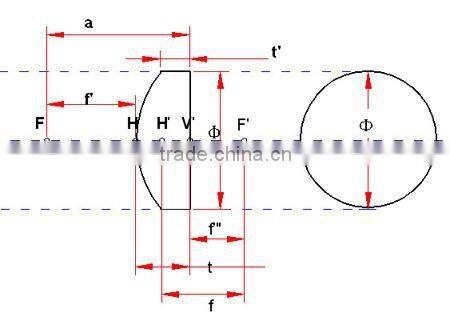

Spherical Plano-convex lense
This is the most common type of lens element. It can be used to focus, collect and collimate light. It is also useful as a simple imaging lens.
Parameter
Qinhuangdao Intrinsic Crystal Technology Co., Ltd has the ability to process CaF2 Plano-convex optical lenses, as also as Precision Plano-convex lenses.
Parameter |
|
Design Wavelength | 632.8nm |
Diameter Tolerance | +0.0/-0.1mm |
Thickness Tolerance | +/-0.1mm |
Focal Length Tolerance | +/-1% |
Radius Tolerance | +/-0.1mm |
Surface Quality | 60-40 or better |
Surface Accuracy | λ/4 @ 632.8nm or better |
Parallelism | <3 arc min |
Clear Aperture | >90% |
Bevel | <0.2×45° |
Chips | <0.35mm |
Center error | <3 arc min |
Type of Spherical Lenses
Plano-convex/concave lenses, Bi-convex/concave lenses, meniscus lenses
Materialial
CaF2, BaF2, MgF2, LiF, optical glass, ZnSe, ZnS, Si, Ge, Quarz etc.
The High quality products are guarantee by Advanced testing equipment and methods
Qinhuangdao Intrinsic Crystal Technology Co., Ltd has the advanced processing equipment and complete production system,which gurantees that we can effectively control every aspect of the product process, as well as product quality. It also has the advanatge to reducing losses and costs.
Packaging
Pay attention to every details of the package. According to the products, we choose the best suitable packaging.
Shipping
Many shipping methods to meet customer's demand.
